pingUSB
$275.00
pingUSB is the worlds smallest, lightest, and most affordable dual-band ADS-B traffic receiver. View realtime ADS-B traffic on your Electronic Flight Bag (EFB) app on your mobile device wirelessly, or on your PC with USB.
AV-30 External Magnetometer
SKU: UAX-90093-01
pingUSB is the world’s smallest, lightest, and most affordable dual-band ADS-B traffic receiver, designed to enhance situational awareness for general aviation pilots. Supporting both 978MHz UAT and 1090MHz ES frequencies, it delivers real-time traffic updates directly to EFB apps like ForeFlight and EasyVFR on mobile devices or PCs. With seamless plug-and-play integration, minimal setup, and broad compatibility, pingUSB provides a clear and complete view of nearby air traffic—making every flight safer and more efficient.
PRIMARY FEATURES

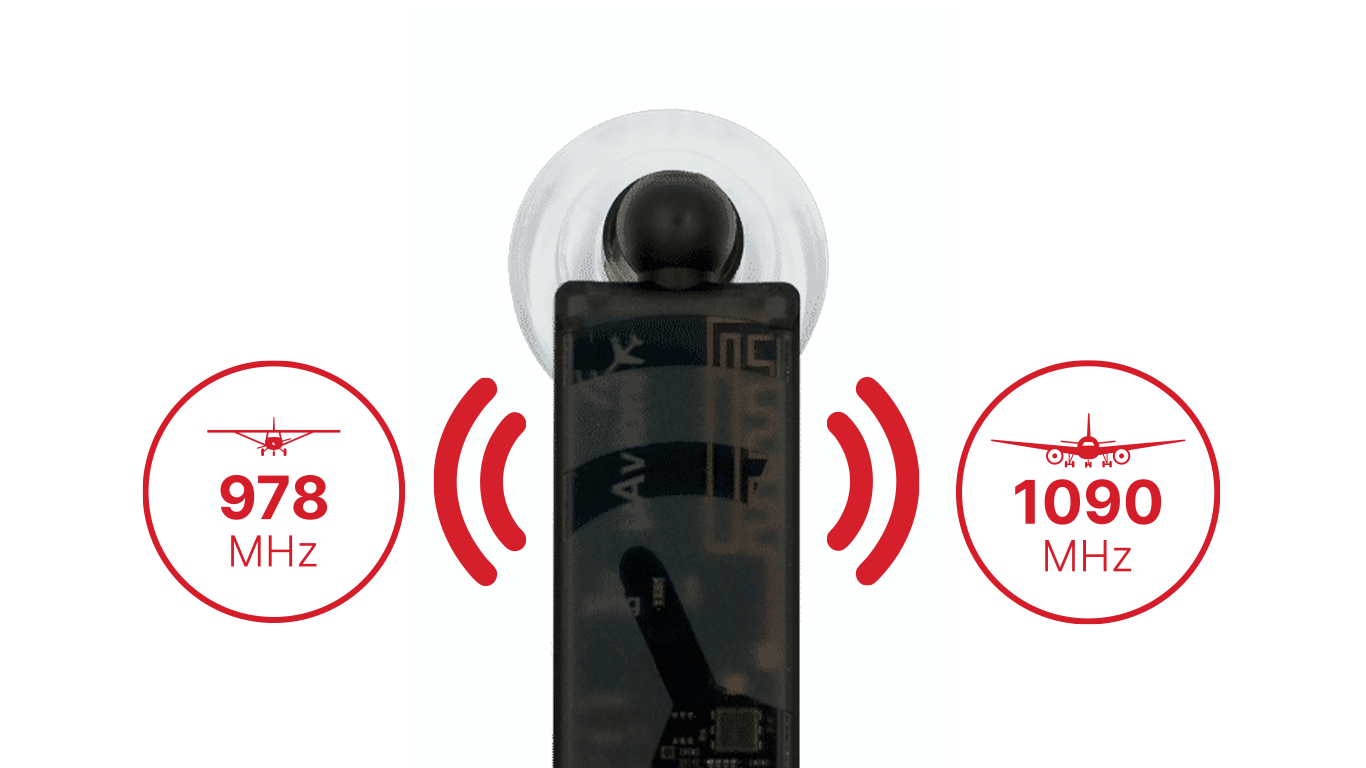

Dual-Band Traffic Reception
pingUSB operates on both 978MHz and 1090MHz frequencies, providing comprehensive ADS-B traffic monitoring in real-time.
Direct Connectivity

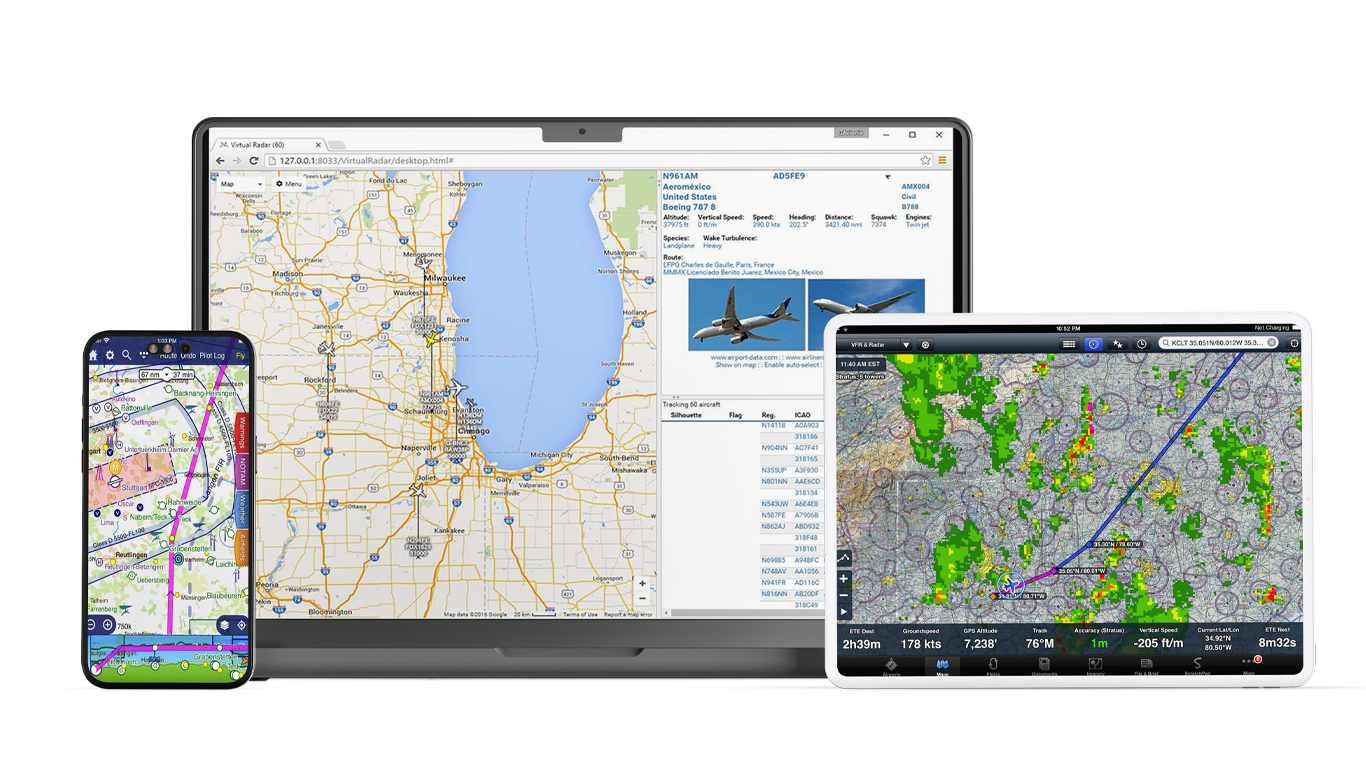

Offers both wireless connectivity for Electronic Flight Bag (EFB) applications and a USB connection for PC-based platforms like Virtual Radar Server.
Wide Application Compatibility

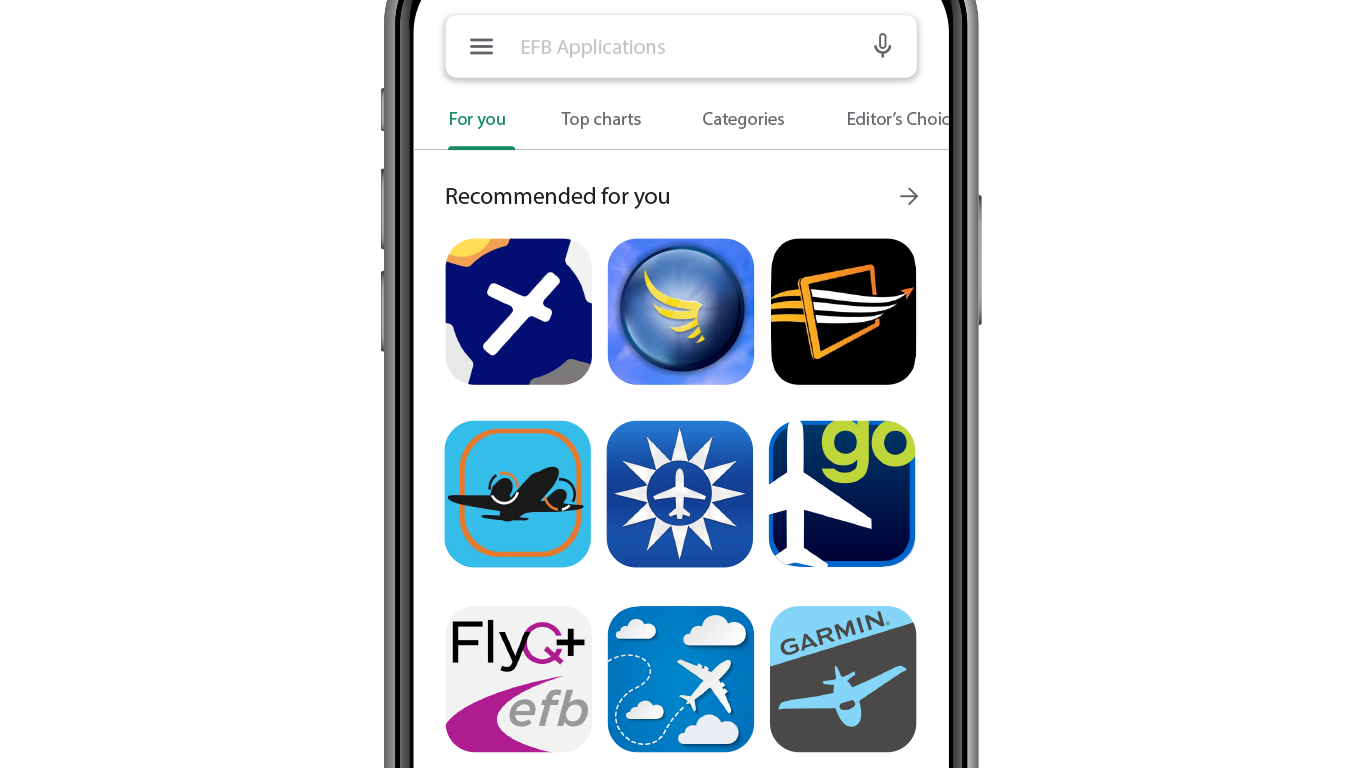

Supports popular EFB apps including ForeFlight Mobile, EasyVFR, AirMate, and Oz Runways using the GDL 90 protocol.
ADDITIONAL FEATURES
Lightweight, Flexible, and Feature-Packed
Â
Compact and Lightweight
At only 5 grams and dimensions of 34x19x8mm, pingUSB is extremely portable and unobtrusive.
No Weather or FIS-B Services
Exclusively focused on ADS-B traffic without weather distractions, ensuring clear and dedicated traffic updates.
MavLINK Serial Interface
Supports high-speed data transfer at 57600 bps, enhancing the responsiveness and real-time capabilities.
Easy Installation
Can be quickly set up with a gimbaled mount and microUSB connection to any USB power source.
High Dynamic Range
Capable of receiving signals from -93dBm to -3dBm, ensuring robust reception and reliability.
Low Power Consumption
Operates efficiently with just 4-6V / 150mA power, making it an energy-efficient solution for extended use in any flight environment.
FAQ's
Knowledge Base
What types of aircraft can use the pingUSB?
Any aircraft can use pingUSB as long as it has a USB power source and a compatible EFB application.
Does the pingUSB meet FAA requirements for ADS-B equipment?
While pingUSB provides traffic information, it is not a substitute for FAA-mandated ADS-B Out equipment.
How do I install the pingUSB in my aircraft?
Connect pingUSB to a USB power source, mount it using the suction cup, and connect to your EFB or PC.
How do I view traffic information on my EFB?
Connect to pingUSB’s Wi-Fi network, launch your GDL 90 compatible EFB app, and ensure it’s configured to receive traffic data from pingUSB.
What maintenance does pingUSB require?
pingUSB is maintenance-free but periodically check for software updates on the uAvionix website.
What should I do if I’m not receiving any ADS-B traffic data?
Ensure you are within range of ADS-B ground stations or aircraft transmitting ADS-B Out signals. Check your EFB app’s settings to ensure it’s configured correctly for pingUSB.
DOCUMENTATION
pingUSB Manuals & Guides
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
uAvionix |
