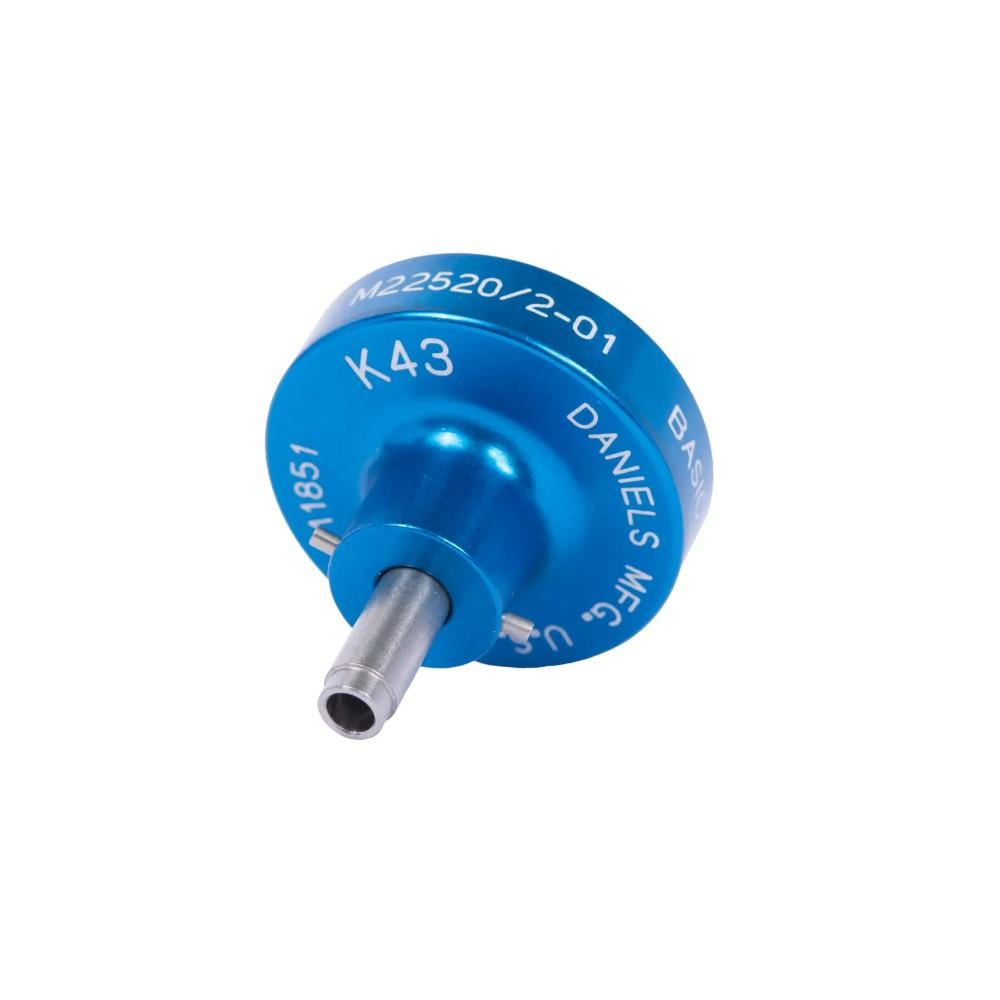

Positioner K43
$93.86
- K43® is qualified to AS22520/2*
K43® is qualified to MIL-DTL-22520/2* and AS22520/2*
This positioner is used with the M22520/2-01, AFM8® tool frame and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates the selector position.
Can also be used with these DMC® Crimp Tools:
WA22® Pneumatic Crimp Tool Frame
AFME8B Battery Crimp Tool Frame
Features
Contacts serviced:
- M39029
/56-351
/57-357
/58-363
/87-474 THRU -477
/88-498 THRU -501
/106-615
/107-621
/117-634
/117-640
/118-652
/118-656
/121-665
/122-672
Wire gauge:
- 20, 22, 24
Compatible tools:
- AFM8 Hand Crimp Tool Frame
- WA22 Pneumatic Crimp Tool Frame
- AFME8B Battery Crimp Tool Frame
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
