New
RAM® Handlebar U-Bolt Double Ball Mount – B Size Medium
$45.99
5
Items sold in last 13 days
7
People watching this product now!
Description

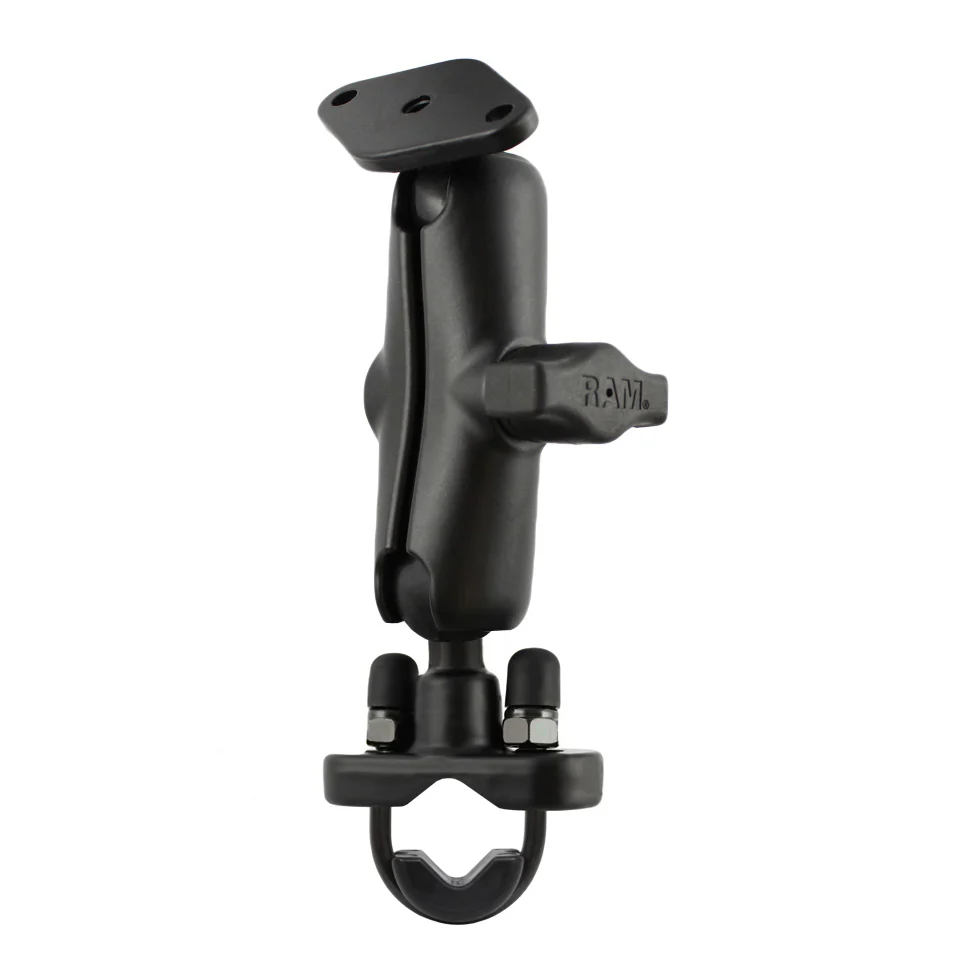

The RAM-B-149ZU consists of a zinc-coated U-bolt base, double socket arm, and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM® components. Included is hardware that will accommodate rails from .5″ to 1.25″ in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. Also included is a B size medium length double socket arm featuring adjustment points at both ends, allowing for near-infinite adjustability.
Features
- Includes zinc-coated U-bolt base that accommodates rails from .5″ to 1.25″ in diameter, medium length B size RAM® double socket arm, and diamond adapter ball base for connecting to a wide variety of device holders
- RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications
Hardware included:
(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
(2) 1/4″-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
Clamp range:
.5″ – 1.25″ diameter
Socket to socket length:
3″
Hole pattern:
2-Hole AMPS: 1.912″
Plate size:
2.43″ x 1.31″
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
Packaging type:
Poly Bag
Weight:
0.63 lb
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
RAM Mounts |
