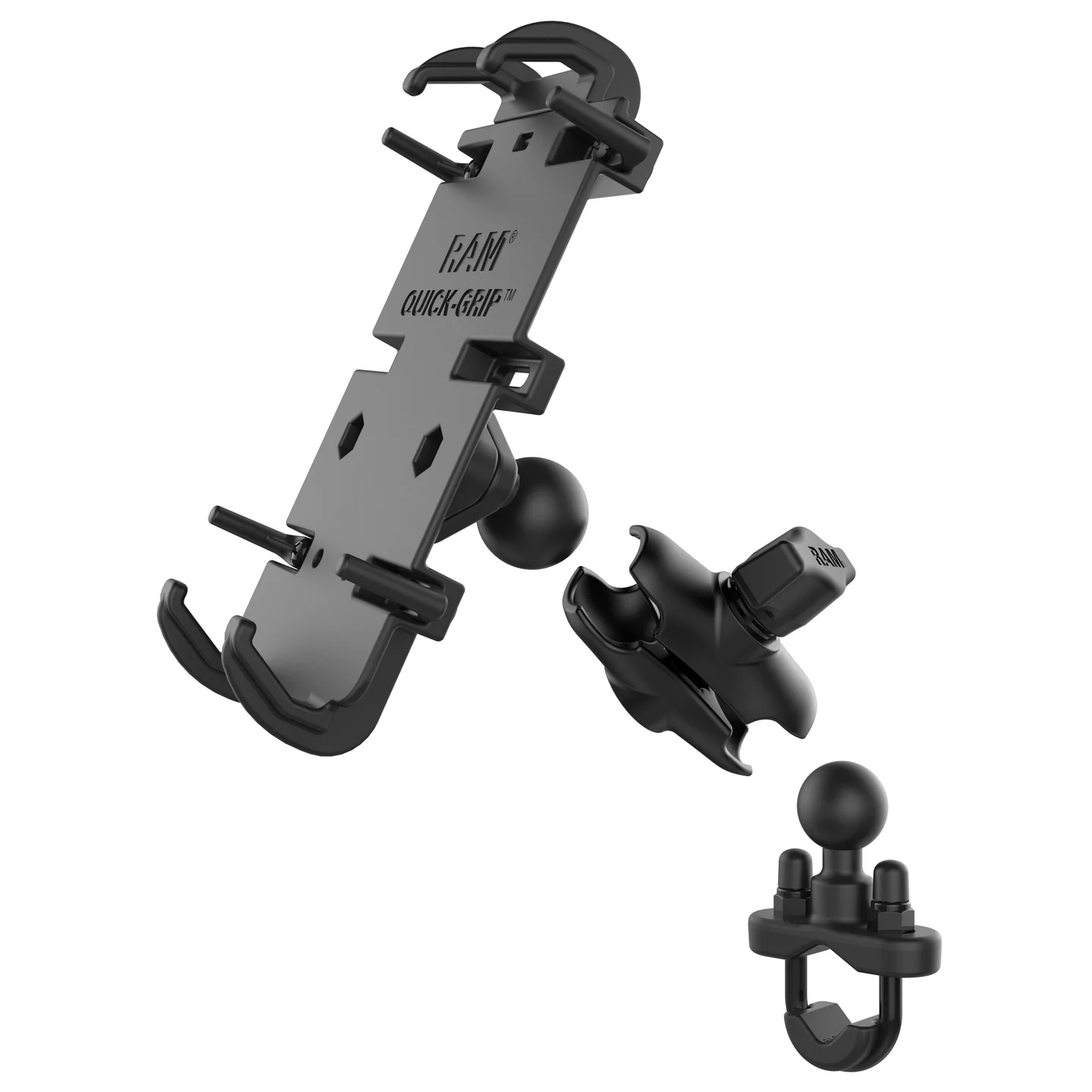

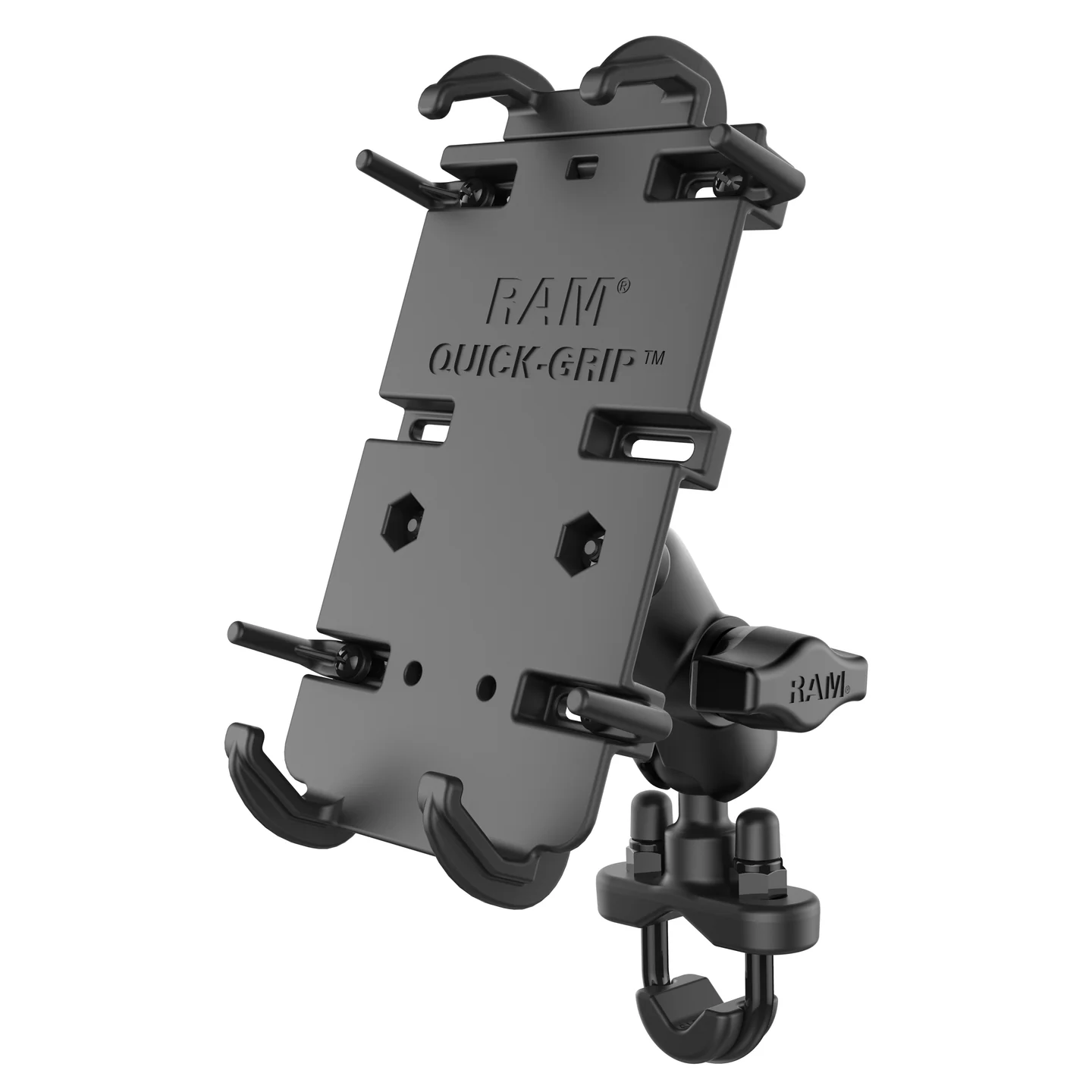

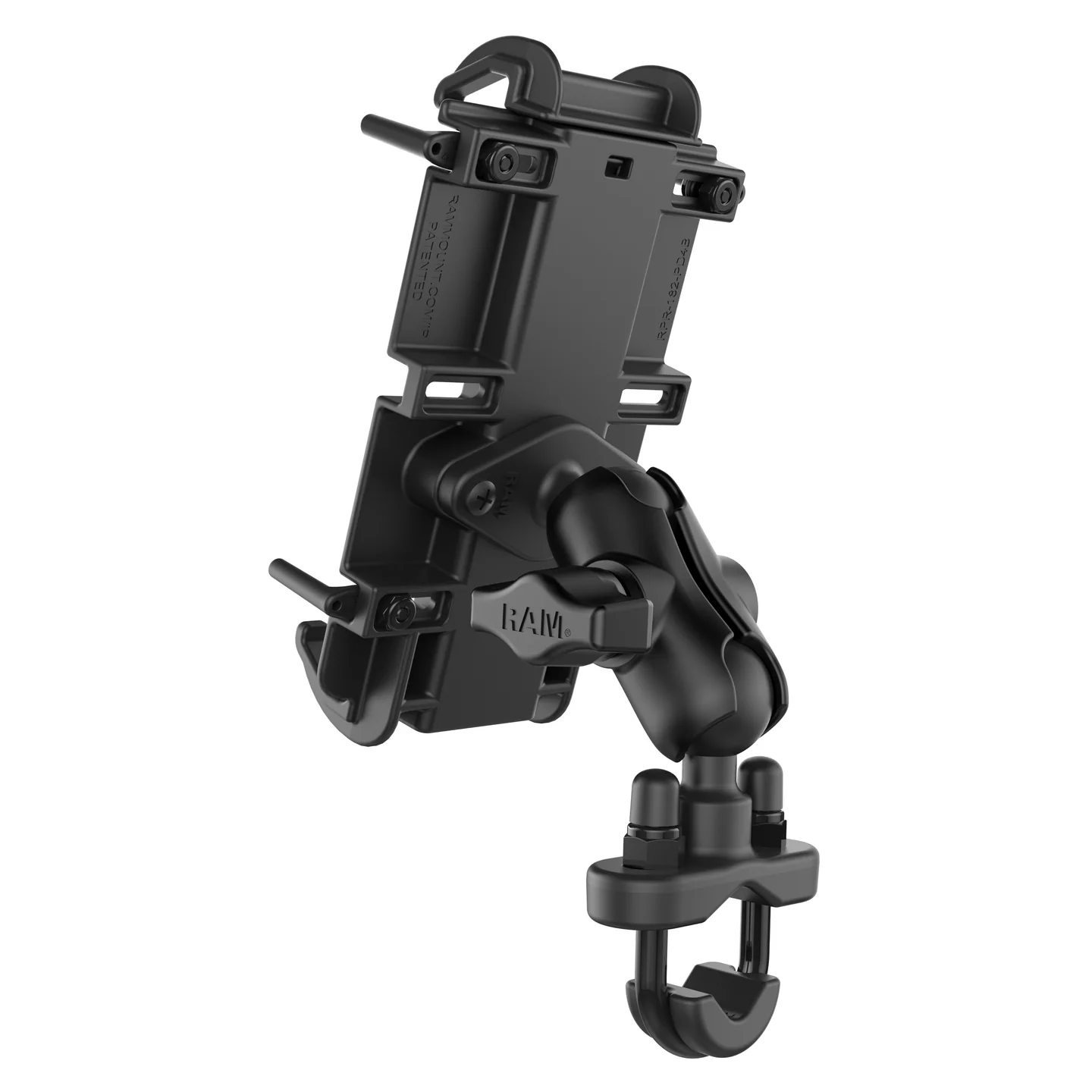

RAM® Quick-Grip™ XL Phone Mount with Handlebar U-Bolt Base – Short
$69.99
This version of the spring-loaded RAM® Quick-Grip™ holder provides a secure fit for a variety of large phones and other devices. Included is a short RAM® double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter.
Features

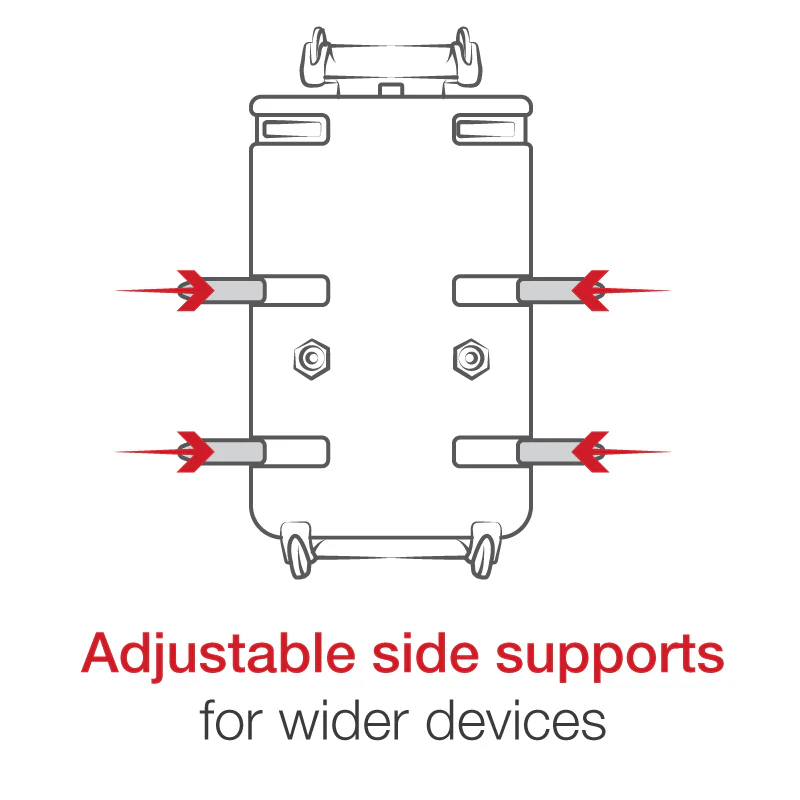

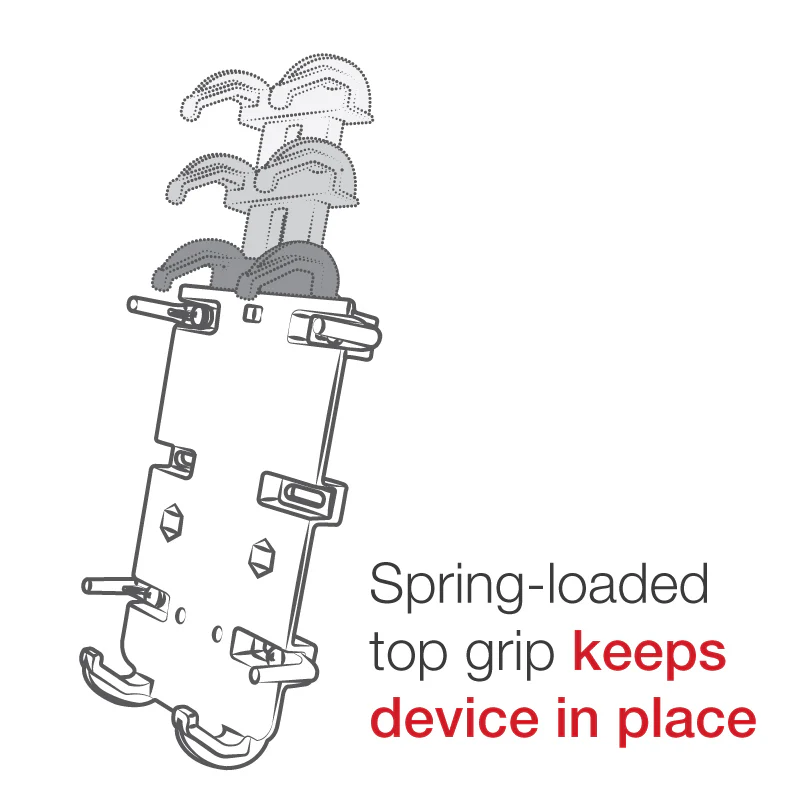

- Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand
- Includes U-bolt base that accommodates rails from .5″ to 1.25″ in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications
Hardware included:
Assembly Hardware
(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
(2) 1/4″-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
Holder dimensions:
Height Range: 5.75″ – 7.25″
Width Range: 2.625″ – 3.625″
Max Depth: .72″
Clamp range:
.5″ – 1.25″ diameter
Socket to socket length:
1.75″
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Weight:
0.84 lb
Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
RAM Mounts |
