RAM® Round Plate with Ball – B Size
$11.49
28
Items sold in last 13 days
4
People watching this product now!
Description

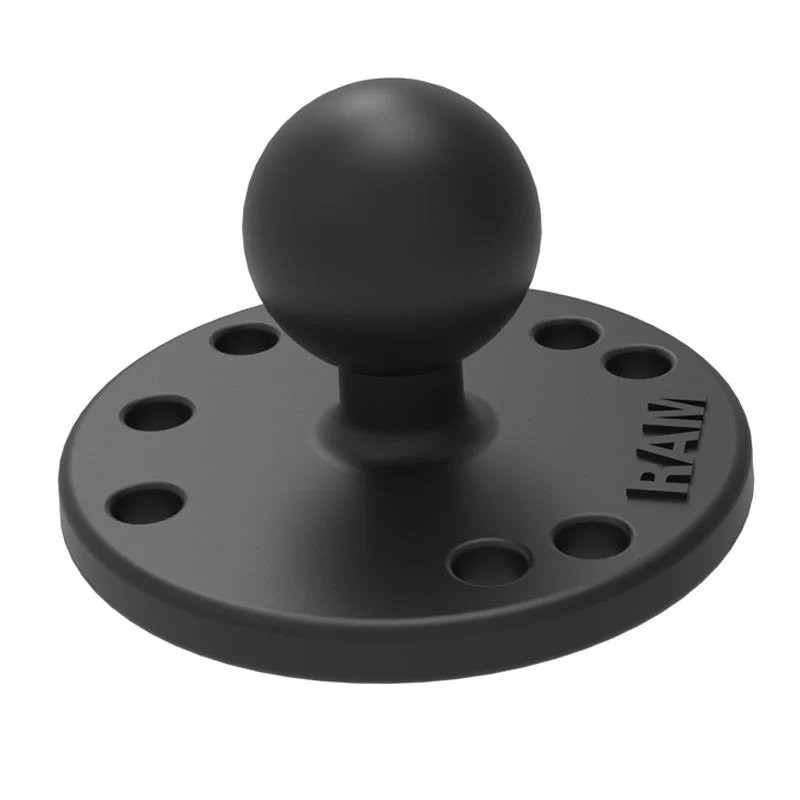

The RAM-B-202U consists of a 1″ B size rubber ball connected to a 2.5″ diameter round plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern.
Features
- 2.5″ round plate connects to RAM® device holders containing the universal AMPS hole pattern
- Included B size 1″ RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications
Hole pattern:
4-Hole AMPS: 1.181″ x 1.496″
3-Hole 120-Degree: 1.812″ Diameter
Plate size:
2.5″ Diameter
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
Packaging type:
Poly Bag
Weight:
0.15 lb
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
RAM Mounts |
