RAM® Tab-Tite™ with RAM® Twist-Lock™ Suction Cup for iPad 9.7 + More
$85.49

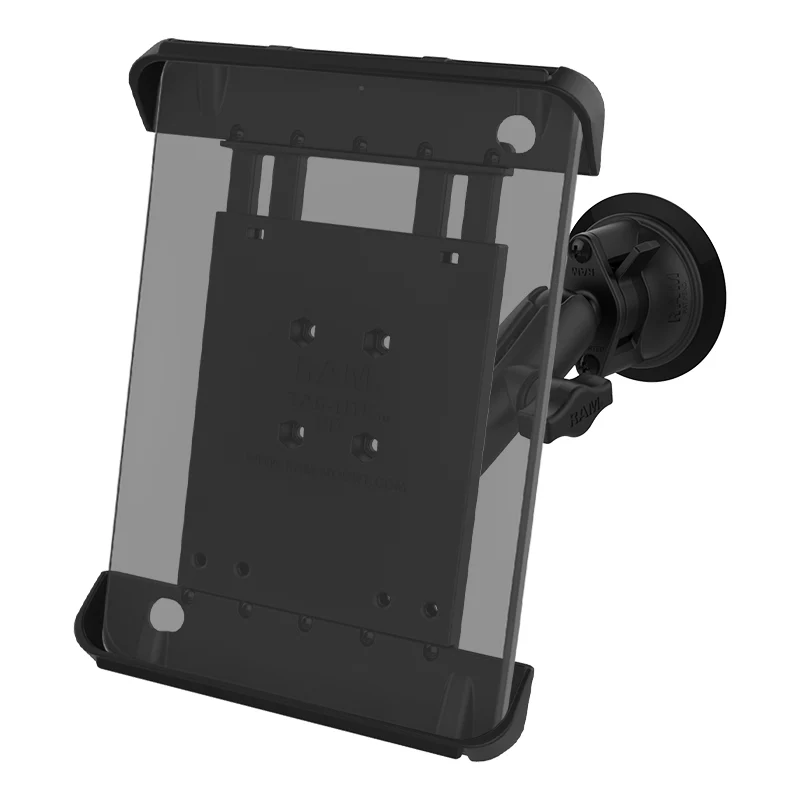

The RAM-B-166-TAB6U consists of a 3.3″ diameter suction cup twist lock base, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Features
- Spring-loaded holder secures most 9.7″ tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
- Includes RAM® Twist-Lock™ suction cup base for mounting to windshields and other nonporous surfaces as well as a B size medium socket arm
- Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty*
Specifications
Hardware included:
Assembly Hardware
Holder dimensions:
Height Range: 8.625″ – 11.25″
Width Range: 6.05″ – 6.8″
Depth Range: .13″ – .5″
Suction size:
3.3″ Diameter
Socket to socket length:
3″
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Weight:
1.04 lb
Additional Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
RAM Mounts |
