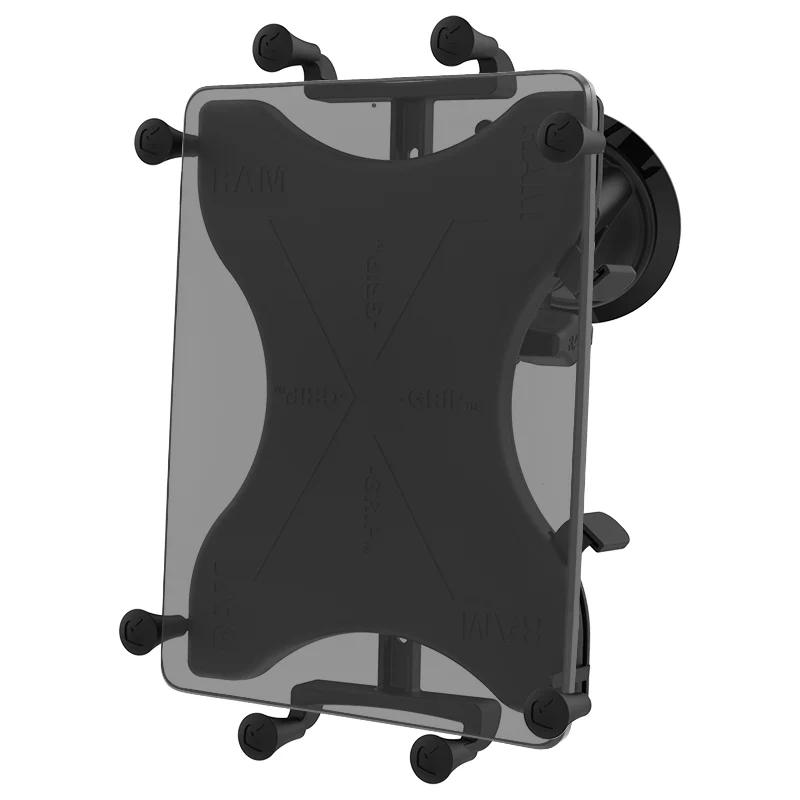

RAM® X-Grip® with RAM® Twist-Lock™ Suction Cup Mount for 9″-11″ Tablets
$161.49
The RAM-B-166-UN9U consists of a 3.3″ diameter suction cup twist lock base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 9″-11″ tablets. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 10″ tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®. The X-Grip® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features
- Spring-loaded ‘X’ design with rubber caps sports great holding power without hiding your tablet; fits most 9″-11″ tablets
- Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty*
Specifications
Hardware included:
Assembly Hardware

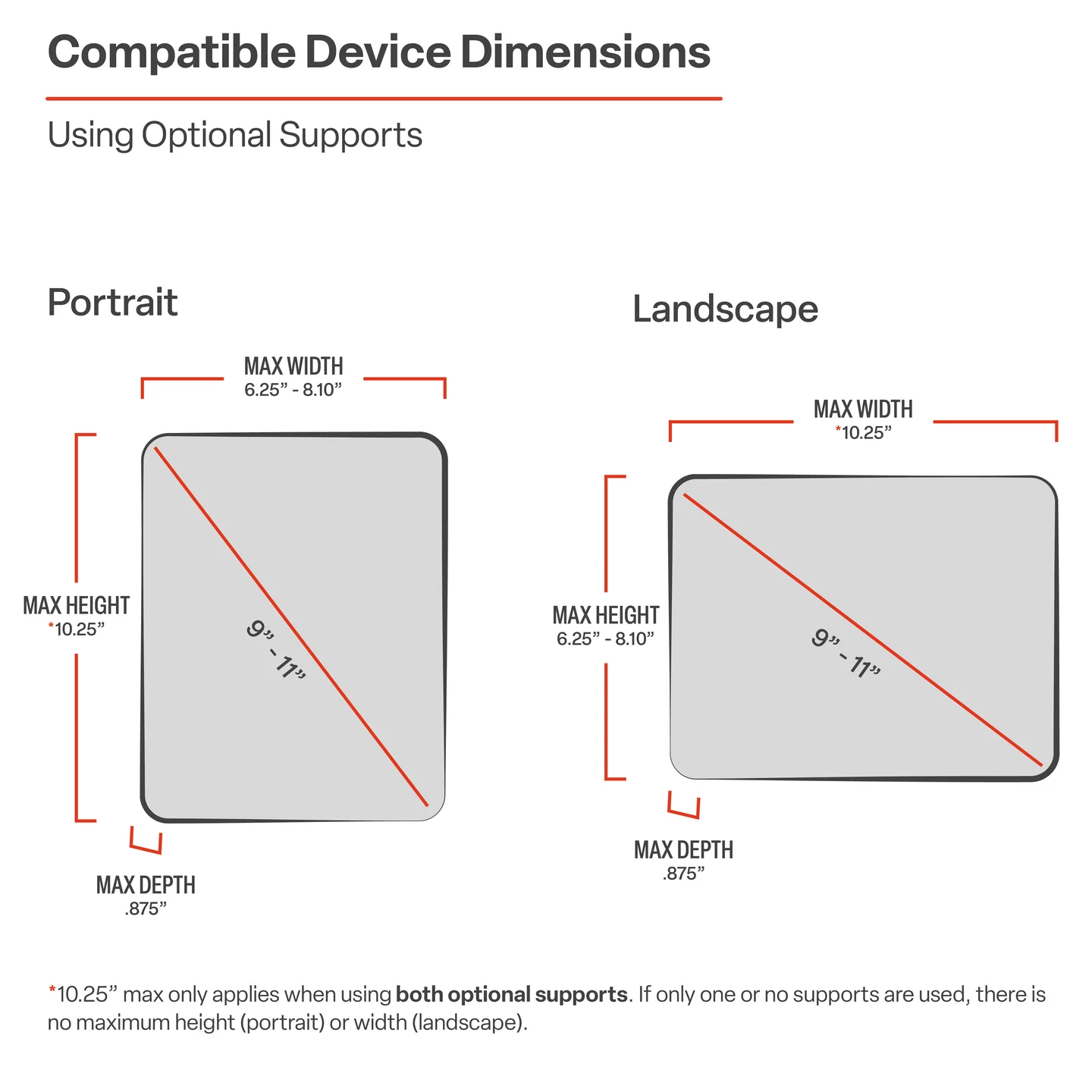

Holder dimensions:

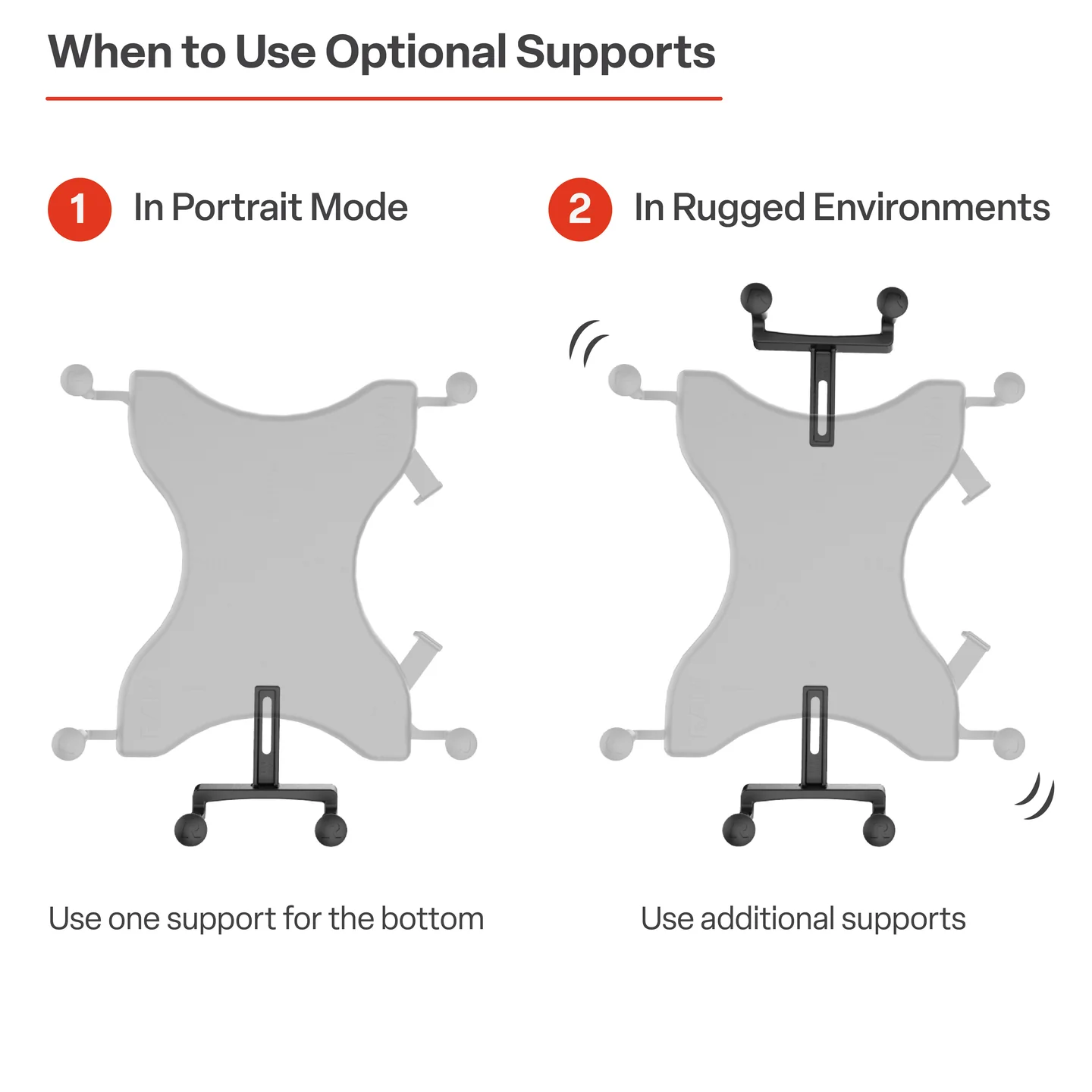

Max Height: 10.25″ (using optional supports)
Width Range: 6.25″ – 8.1″
Max Depth: .875″
Suction size:
3.3″ Diameter
Socket to socket length:
3″
Ball size:
B Size (1″)
Weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Materials:
Marine-grade aluminum
High strength composite
Packaging type:
Poly Bag
Weight:
1.77 lb
Additional Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty.
