skyBundle TSO
$2,849.00

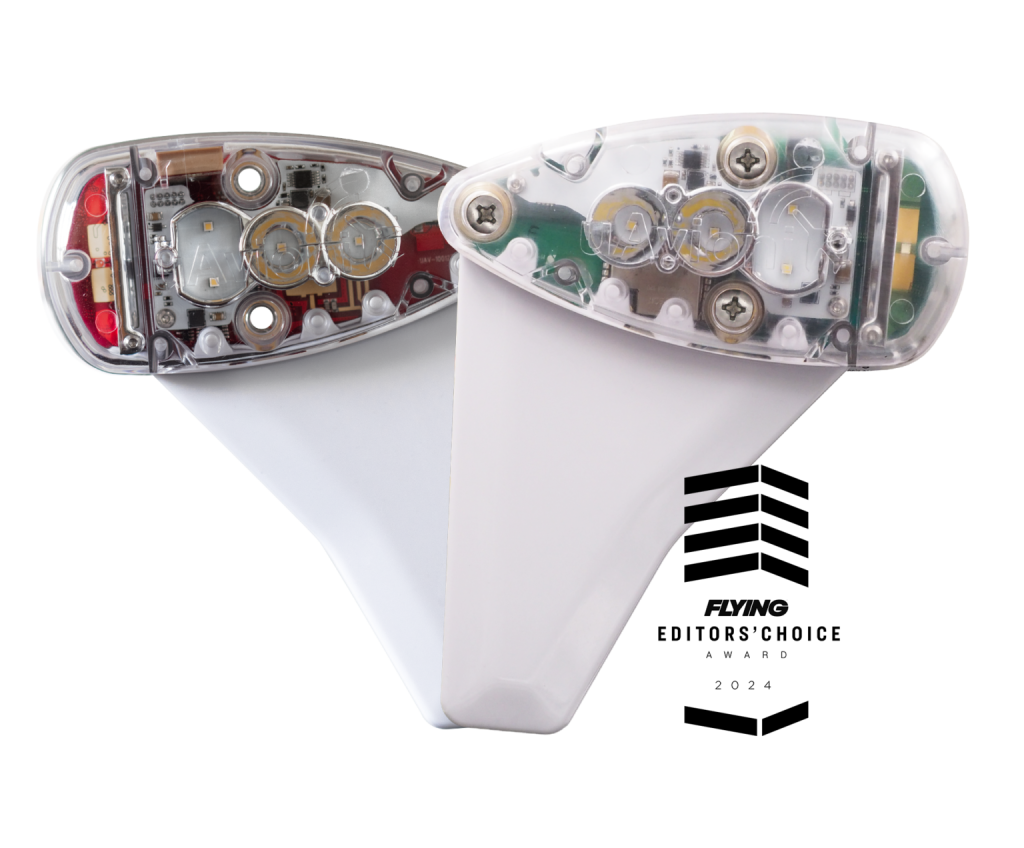

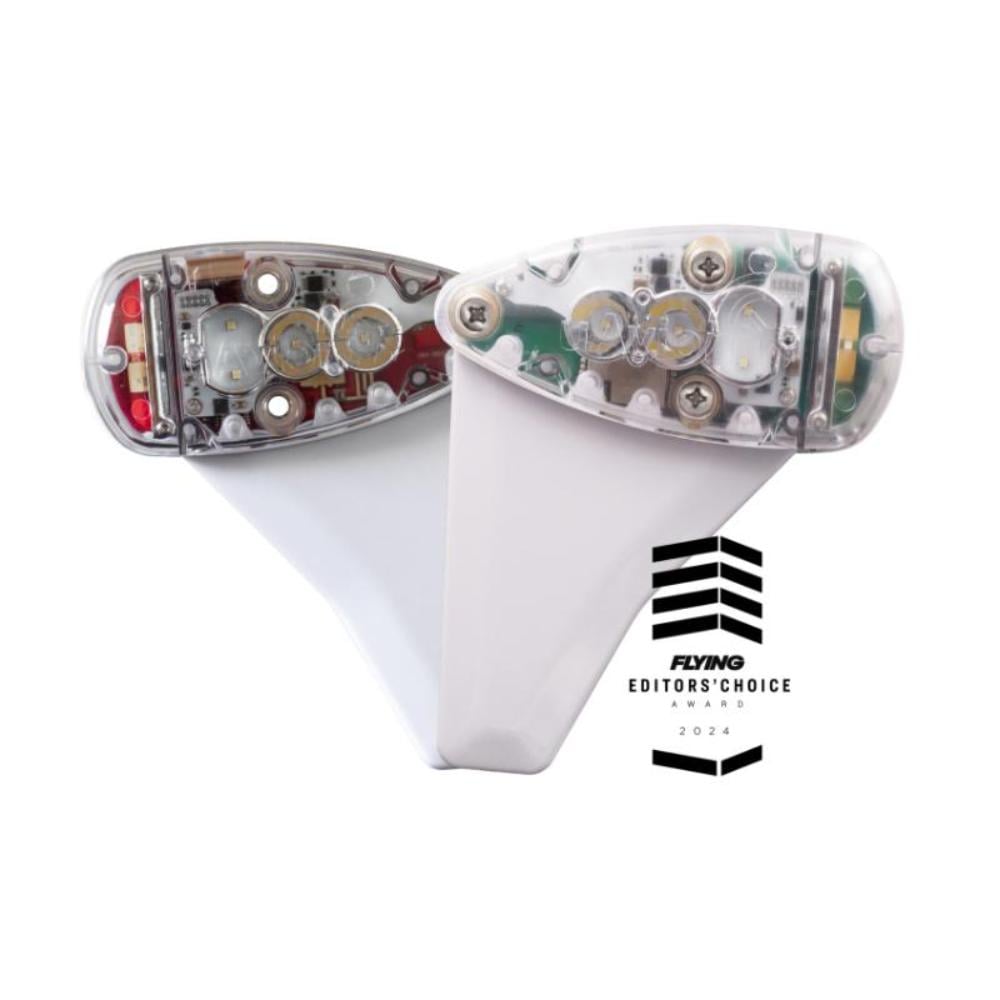

The skyBundle from uAvionix is the ultimate all-in-one solution for General Aviation ADS-B compliance, uniquely combining both ADS-B Out and ADS-B In functionalities into a single, wingtip-mounted device. This innovative bundle includes the skyBeacon and skySensor, providing a comprehensive suite of features designed to enhance safety, compliance, and operational efficiency.
ADS-B Out, ADS-B In - all in one perfect pairing.
SKU: UAX-90117-01
The skyBundle from uAvionix is the ultimate all-in-one solution for General Aviation ADS-B compliance, uniquely combining both ADS-B Out and ADS-B In functionalities into a single, wingtip-mounted device. This innovative bundle includes the skyBeacon and skySensor, providing a comprehensive suite of features designed to enhance safety, compliance, and operational efficiency.
PRIMARY FEATURES
Complete ADS-B Solution

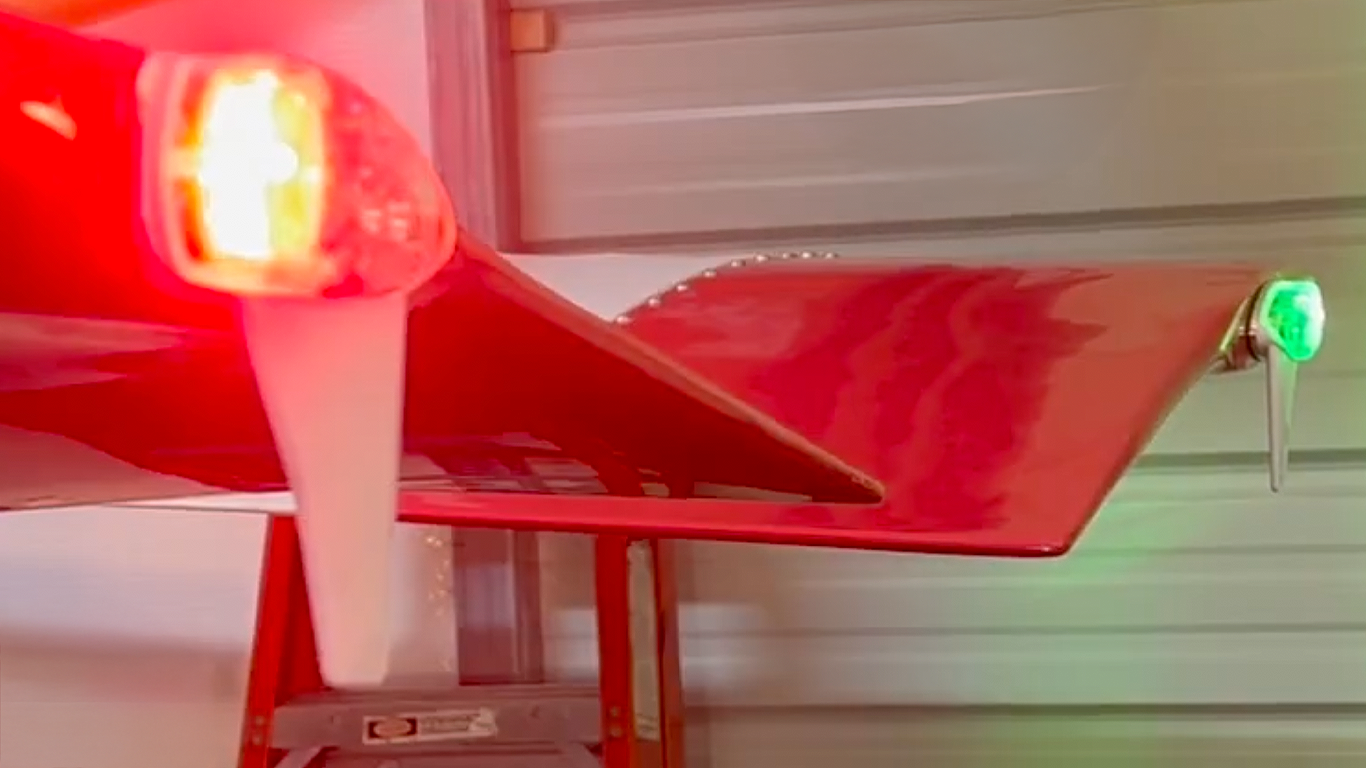

Integrates both ADS-B Out and ADS-B In capabilities in a single wingtip-mounted unit, making it a compact and efficient solution for General Aviation.
Enhanced Visibility and Safety
Includes LED navigation and anti-collision (strobe) lights that improve visibility, enhancing safety during flight operations.
ADDITIONAL FEATURES
Awareness Dependability Safety - Breakthrough (ADS-B)
WAAS GPS Integration
Equipped with WAAS GPS for improved positional accuracy and reliability, supporting compliant flight operations under ADS-B regulations.
Reduced Power Consumption
Designed to be energy-efficient, minimizing power consumption with its LED lighting technology.
Easy to Monitor and Update
Supports remote diagnostics and updates, simplifying maintenance and ensuring the system remains current with evolving aviation standards.
Altimeter Precision
Incorporates an altimeter for accurate altitude reporting, essential for ADS-B functionality and air traffic control.
Extensive Model Compatibility
Features the largest approved model list of any UAT ADS-B system, ensuring wide-ranging applicability across various aircraft types.
Cost Savings
Save $100 by choosing the skyBundle, which combines critical navigational and safety features into a comprehensive package.
ACCESSORIES

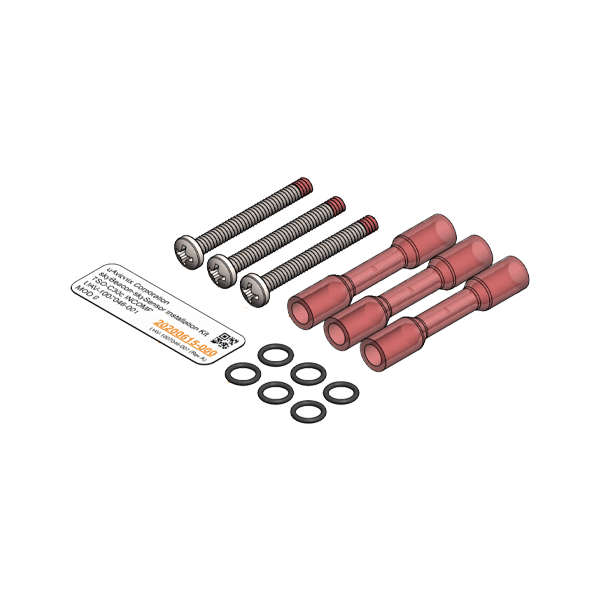

Installation Kits and Adapters
skyBeacon – 302 Wingtip Adapter
- 172L, 172M, 172N, 172P, 172Q, 172R, 172S
- 172RG
- 177B, 177RG
- 180J, 180K
- 182P, 182Q, 182R, 182S, 182T, R182, T182, TR182
- U206F, U206G
- TU206F, TU206G
skyBeacon – 301 Wingtip Adapter
- 150L, 150M
- 152
- 175C
- 180G, 180H
- 182F, 182G, 182H, 182J, 182K, 182L, 182M, 182N
- 185, 185A, 185B, 185C, 185D, 185E, A185F
- P206E, U206E
FAQs
Knowledge Base
Â
What types of aircraft can use the skyBundle?
The skyBundle is compatible with a wide range of General Aviation aircraft. For a detailed model list, please refer to our approved model list on the uAvionix website.
Does the skyBundle meet FAA ADS-B requirements?
Yes, the skyBundle meets all FAA requirements for ADS-B Out and In, making it fully compliant for use in controlled airspace.
How difficult is it to install the skyBundle?
The skyBundle is designed for easy installation with minimal aircraft downtime. Detailed installation manuals are available on our website.
How do I operate the skyBundle once installed?
Operation is straightforward. Once installed, the system automatically integrates with your aircraft’s existing systems and starts transmitting and receiving ADS-B signals.
What maintenance is required for the skyBundle?
Regular maintenance includes checking the system for firmware updates and ensuring the LED lights are functioning properly. Maintenance guidelines can be found in the user manual.
What should I do if the skyBundle is not transmitting ADS-B signals?
Ensure the system is properly powered and all connections are secure. Refer to the troubleshooting section of the installation manual for more detailed guidance.
DOUMENTATION
SkyBundle Manuals and Guides
skyBeacon Technical Specifications:
skyBeacon Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage | 11-31V DC |
| Operating Power | 3 watts |
| Size | 124x116x48mm |
| Weight | 90 grams |
| SDA/SIL | 2/3 |
| Operating Temp | -45°C to 80°C |
| 978MHz UAT Transmitter | |
| Power Classification | DO-282B Medium Power |
| WAAS GPS | |
| Tracking Reacquisition Cold Start | -166dBm -160dBm -148dBm |
| LED Position Light | |
| Color | Aviation Red |
| Intensity | 40 candelas |
| Wi-Fi Configuration | |
| Physical | 802.11b/g/n |
| App Compatibility | iOS, Android |
| Power Transcoder | Decodes Mode A and C via Power Transcoder |
Â
skySensor Technical Specifications:
| Specification | Value |
|---|---|
| Input Power | 11-31V DC |
| Size | 124x116x48mm |
| Weight | 90 grams |
| SIL/SDA | 2/3 |
| Operating Temp | -45 to 80°C |
| ADS-B Receivers | |
| 1090 Sensitivity | -93dBm |
| 978 Sensitivity | -104dBm |
| GPS | |
| Tracking  Reacquisition Cold Star | -166dBm  -160dBm -148dBm |
| LED Position Light | Â |
| Color | Aviation Green |
| Intensity | 40 candelas |
| Wi-Fi | Â |
| Physical | 802.11b/g/n |
| App Compatibility | iOS, Android |
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
uAvionix |
