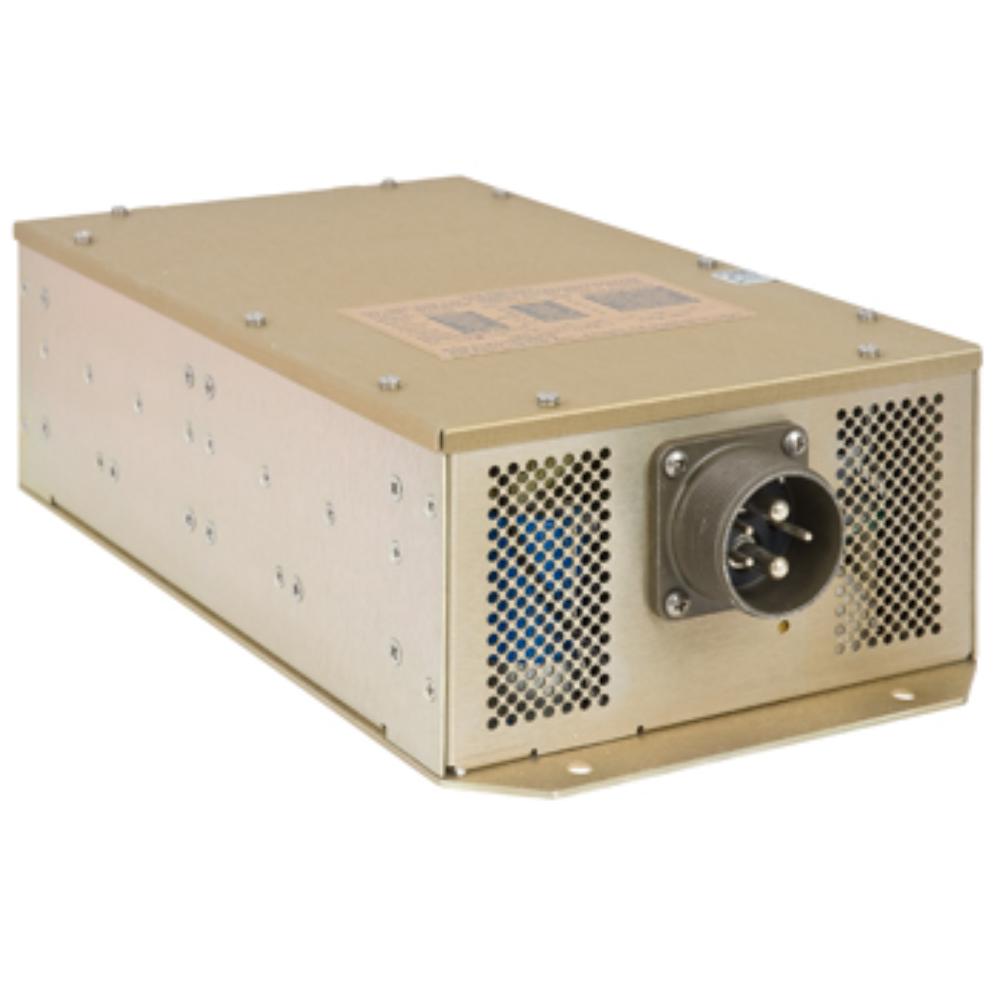

STATIC INVERTER/1000 VA, 28 VDC to 115 VAC, 60 Hz. 9 pin configuration.
$6,376.80
The SS series are lightweight, high efficiency static inverters. This model utilizes the latest state of the art, solid state circuitry to invert a 28 Vdc input to either a 115 Vac, 60 Hz or 230 Vac, 50 Hz sine wave output.
Design features include a crystal-controlled oscillator for output frequency stability and a pulse-width-modulated square to sinewave power conversion scheme for efficient & reliable operation.
The SS series are lightweight, high efficiency static inverters. This model utilizes the latest state of the art, solid state circuitry to invert a 28 Vdc input to either a 115 Vac, 60 Hz or 230 Vac, 50 Hz sine wave output.
Design features include a crystal-controlled oscillator for output frequency stability and a pulse-width-modulated square to sinewave power conversion scheme for efficient & reliable operation.
Model Specifications:
| MODEL | INPUT | OUTPUT | DIMENSIONS | WT. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Curr (ADC) | Volts (Vrms) 5% |
Curr (A rms) |
Freq HZ |
Power VA |
H IN (mm) |
LL IN (mm) |
LM IN (mm) |
L IN (mm) |
T IN (mm) |
MH IN (mm) |
LB (KG) 5% |
|
| SS50 | 20.7 | 115 | 4.3 | 60 | 500 | 3.38 (85.5) |
9.50 (241.3) |
8.75 (222.25) |
8.09 (205.49) |
.06 (1.52) |
.20 (5.08) |
4.3 (1.95) |
| SS100 SS101 |
41.5 | 115 | 8.6 | 60 | 1000 | 3.40 (86.36) |
12.0 (304.8) |
11.25 (285.75) |
10.60 (269.24) |
.08 (2.03) |
.28 (7.11) |
7.4 (3.36) |
| SS120 SSA120 |
50.0 | 115 | 10.3 | 60 | 1200 | 3.40 (86.36) |
12.0 (304.8) |
11.25 (285.75) |
10.60 (269.24) |
.08 (2.03) |
.28 (7.11) |
7.7 (3.50) |
| SB100 | 41.5 | 230 | 4.3 | 50 | 1000 | 3.40 (86.36) |
12.0 (304.8) |
11.25 (285.75) |
10.60 (269.24) |
.08 (2.03) |
.28 (7.11) |
7.4 (3.36) |
| SB101 | 41.5 | 230 | 4.3 | 50 | 1000 | 3.40 (86.36) |
12.0 (304.8) |
11.25 (285.75) |
10.60 (269.24) |
.08 (2.03) |
.28 (7.11) |
7.4 (3.36) |
| SB120 | 50.0 | 230 | 5.2 | 50 | 1200 | 3.40 (86.36) |
12.0 (304.8) |
11.25 (285.75) |
10.60 (269.24) |
.08 (2.03) |
.28 (7.11) |
7.7 (3.50) |
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
KGS Electronics |
