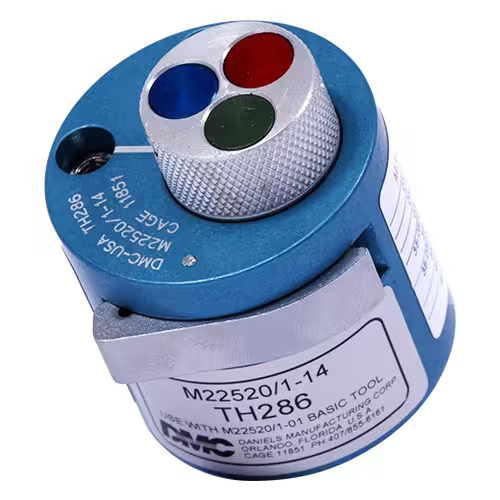

TH286 Turret Head | Daniels Crimp Tools
$218.99
This turret head is used with the AF8, WA27F, and AFE8B tool frames and adapt the tool frames to a particular application. The data plate on each turret head designates which contacts the turret accommodates for its wire size and indicates selector position.
23
Items sold in last 13 days
5
People watching this product now!
Description
This turret head is used with the AF8, WA27F, and AFE8B tool frames and adapt the tool frames to a particular application. The data plate on each turret head designates which contacts the turret accommodates for its wire size and indicates selector position.
Features
- Qualified to MIL-DTL-22520/1* and AS22520/1*
- Contacts Serviced:
- M39012/03-0501 RF N female connector for use on RG-214/U, RG-225/U, and RG-393/U cables
- M39012/03-0502 RF N female connector for use on RG-213/U cables
- M39012/03-0503 RF N female connector for use on RG-142B/U and RG-400/U cables
- M39012/35-0501 RF SC male connector for use on RG-214/U, RG-225/U, and RG-393/U cables
- M39012/35-0503 RF SC male connector for use on RG-142B/U and RG-400/U cables
- M39012/36-0501 RF SC male connector for use on RG-214/U, RG-225/U, and RG-393/U cables
- M39012/36-0503 RF SC male connector for use on RG-142B/U and RG-400/U cables
- M39012/38-0501 RF SC female connector for use on RG-214/U, RG-225/U, and RG-393/U cables
- M39012/38-0503 RF SC female connector for use on RG-142B/U and RG-400/U cables
- M39012/40-0501 RF SC female connector for use on RG-214/U, RG-225/U, and RG-393/U cables
- M39012/40-0503 RF SC female connector for use on RG-142B/U and RG-400/U cables
- Compatible Tools:
- AF8 Hand Crimp Tool Frame
- WA27F Pneumatic Crimp Tool Frame
- AFE8B Battery Crimp Tool Frame
Specifications
-
Dimensions:2.00 x 1.50 in
-
Positioner Colors:Red, Blue, Green
-
Positioner Hole Dimensions:Blue: 0.096 in Red: 0.125 in Greb: 0.125 in
-
RF Connector Types:N Female, SC Male, SC Female
-
RF Cable Types:RG-142B/U, RG-213/U, RG-214/U, RG-225/U, RG-393/U, RG-400/U
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
