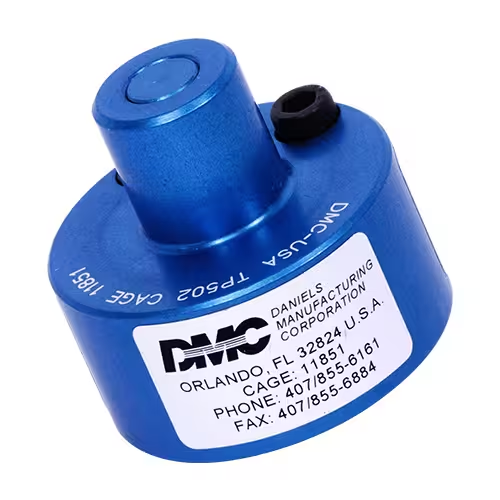

TP502 Single Position Head

This single position head is used with the AF8, AFE8B, and WA27F tool frames and adapts the tool frame to a particular application. The data plate on the positioner designates which contacts the single position head accommodates and suggested selector depth setting for the wire size being used.

Features

• Contacts Serviced:
• 019-0249-000 Size 24–20 AWG Viking Contacts
• 019-0248-000 Size 20–16 AWG Viking Contacts
• 019-0248-000 Size 12 AWG Viking Contacts
• Compatible Tools:
• AFM8 Adjustable Miniature 8 Indent Lower Range Crimp Tool
• AFE8B Battery Crimp Tool
• WA27F Pneumatic Crimp Tool

Specifications

• Position Head Dimensions: 1.490 x 1.375 in
• Locator Hole Dimensions: 0.116 in
• Contact Sizes: 24–12 AWG
