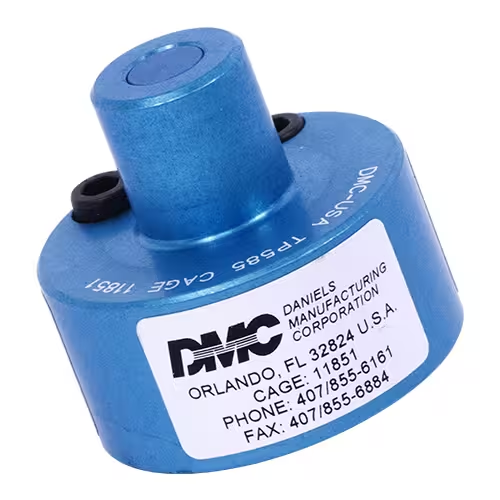

TP585 Single Position Head
$128.78
This single position head is used with the AF8, AFE8B, and WA27F tool frames and adapts the tool frame to a particular application. The data plate on the positioner designates which contacts the single position head accommodates and suggested selector depth setting for the wire size being used.
Features
- Contacts Serviced:
- M24308/10–1 & /11–1 Size 24–20 AWG Contacts
- M24308/16 & /17 –1 through –5 Inner P & S Contacts for RG55B, 58C, 141A, 142A, 142B, 178B, 180B, 188, 195A, 196A, 223, 303, 316/U Cables
- Compatible Tools:
- AFM8 Adjustable Miniature 8 Indent Lower Range Crimp Tool
- AFE8B Battery Crimp Tool
- WA27F Pneumatic Crimp Tool
Specifications
-
Position Head Dimensions: 1.490 x 1.375 in
-
Locator Hole Dimensions: 0.116 in
-
Contact/Cable Sizes: 24–20 AWG; RG55B, 58C, 141A, 142A, 142B, 178B, 180B, 188, 195A, 196A, 223, 303, 316/U
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
