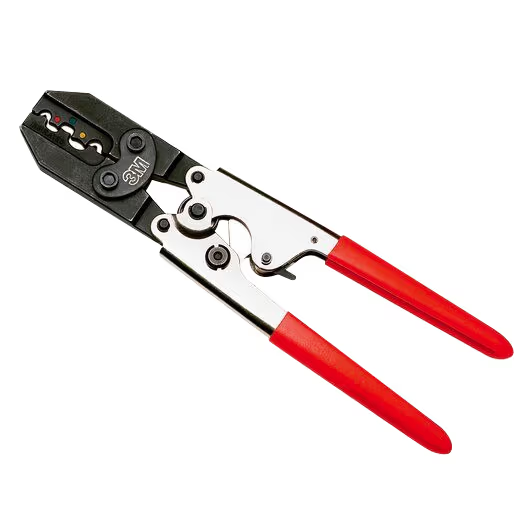

TR-490 Scotchlok™ Hardened Steel Ratchet Crimp Tool
$691.89
The TR-490 is a positive action ratchet tool that crimps both insulated and non-insulated terminals and connectors. It has hardened steel jaws and a corrosion-resistant finish that offers enhanced durability and effectively crimps nylon, vinyl-insulated or non-insulated, butted or brazed-seam terminals. This tool has a ratchet mechanism which provides positive closure of the handles for a full crimping cycle. It is cushion-gripped, and features a pawl release lever for the removal of misplaced terminals.
Features
- Independently crimps the barrel and grip on insulated and non-insulated terminals and connectors
- A positive closure of the handles ensures a proper crimp
- Crimps nylon, vinyl-insulated or non-insulated, butted- or brazed-seam terminals and connectors
- Crimp stations for 22 to 10 AWG connectors
- Tough steel jaws and handles with corrosion-resistant finish
Specifications
Weight:
0.8 lb
AWG:
22-10
Die sizes insulated:
Red – 22-18 AWG
Blue – 16-14 AWG
Yellow – 12-10 AWG
Die sizes non-insulated:
22-14 AWG
12-10 AWG
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | EDMO |
SHIPPING INFORMATION
We can ship by UPS, or USPS and DHL Express. We ship nationally, and internationally.
Carriers In Use
SHIPPING COSTS
- International Shipping Quote has to be done manually due to dimensions, weight, end destination, and more. Please E-Mail us.
- Any manner or method is available, call if you need Priority 1-2 day or overnight shipping.
- We are shipping with UPS or USPS and DHL Express
