Wiring System Maintenance Kit | For Agusta Westland A109, AW109, A119, AW119, & A129

The DMC902 Wiring System Service Kit provides a well organized single location tool kit to strip, crimp, install and remove typical contacts and terminals for Agusta Westland A109, AW109, A119, AW119, & A129 helicopters. The DMC902 kit contains the tooling-to-connector, contact and terminal cross reference information which indicate the particular tool(s)that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the required tooling.

Features

• Kit Includes:

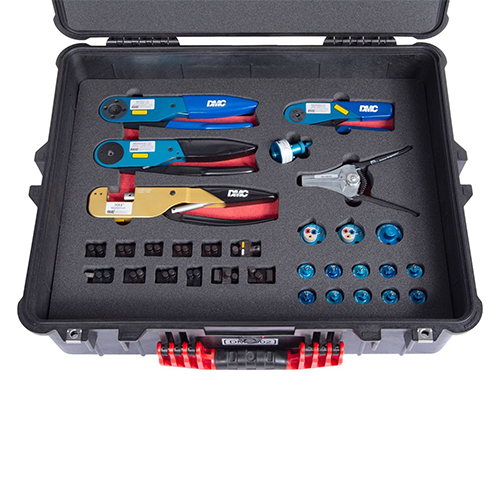

• 4 Crimp Tools
• 2 Turret Heads
• 10 Positioners
• 1 Single Position Head
• 1 Universal Head
• 12 Die Sets

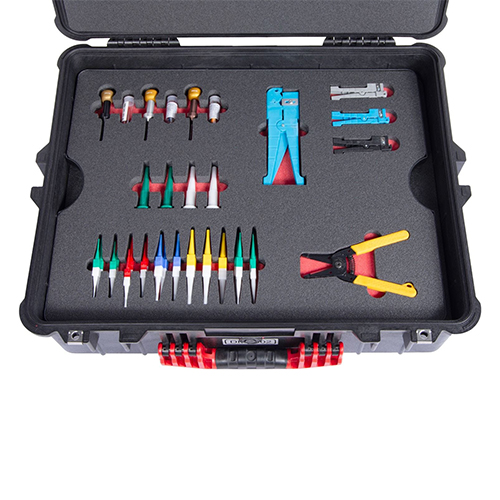

• 12 Metal Insertion Tools
• 14 Metal Removal Tools
• 67 Plastic Insertion/Removal Tools
• 4 Contact Gages
• 3 Unwired Contact Removal Tools w/ Probes
• 1 Wire Cutter
• 1 Wire Stripper
• 2 In-Service Inspection Gages
• 1 Die Removal Tool
• 1 Hex Wrench
• 4 Coaxial Cable Strippers
• Features:
• All-in-one connector repair kit

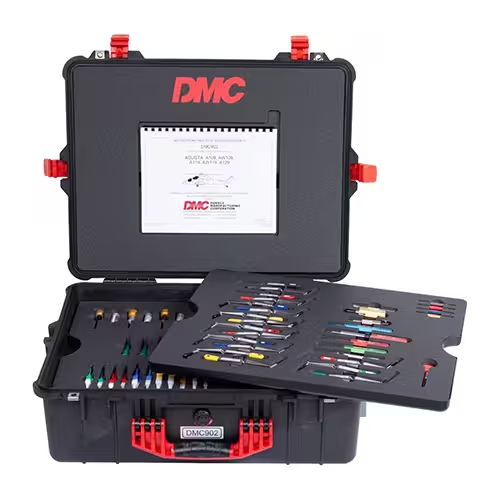

• Black polypropylene copolymer case with name plate, foam inserts, contents, instructions, and tool-to-connector cross reference charts
• For use with Agusta Westland A109, AW109, A119, AW119, & A129 wiring systems
