Wiring System Maintenance Tool Kit | MBB BO-105 & BK-117

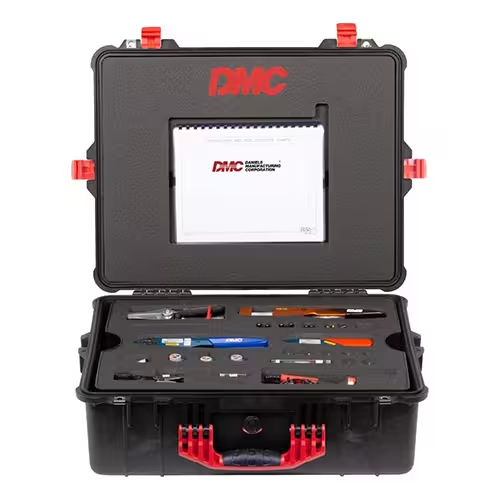

This tool kit contains all of the necessary tools for repairing electrical connectors and wiring systems for the MBB BO-105 & BK-117 helicopters. The DMC850 kit contains the tooling to connector, contact and terminal cross reference information to indicate the particular tool for a specific connector, contact, or terminal. This kit also contains an illustrated operating instructions for the required tooling.
Contact Cost Aero at 855-500-3044 for pricing
This tool kit contains all of the necessary tools for repairing electrical connectors and wiring systems for the MBB BO-105 & BK-117 helicopters. The DMC850 kit contains the tooling to connector, contact and terminal cross reference information to indicate the particular tool for a specific connector, contact, or terminal. This kit also contains an illustrated operating instructions for the required tooling.
Features
- Kit Includes:
- 2 Crimp Tools
- 1 Crimp Frame w/Die Set
- 3 Turret Heads
- 4 Positioners
- 11 Metal Insertion Tools
- 11 Metal Removal Tools
- 30 Plastic Insertion/Removal Tools
- 2 Module Removal Tools
- 4 Contact Gages
- 2 Unwired Contact Removal Tools w/Probes
- 1 In-Service Inspection Gage
- 1 Die Removal Tool
- 1 Hex Wrench
- 1 Wire Cutter
- 2 Wire Strippers
- 1 Soft Jaw Plier
- 1 Strap Wrench
- Connector Coverage:
- Deutsch Common Termination System, TJ, 75*** Series
- ITT Cannon D*C, D*MA Series
- Leach Relays Relay Sockets
- LRE, GMBh Relay Sockets
- MIL-DTL-26482 Series 1 & 2
- MIL-DTL-38999 Series 2
- MIL-DTL-83723 Series 3
- SAE-AS50151 3450 Series
- SAE-AS7928 Insulated Terminals/Splices
- SAE-AS81714 RF Coaxial
- Souriau 851 Series
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
