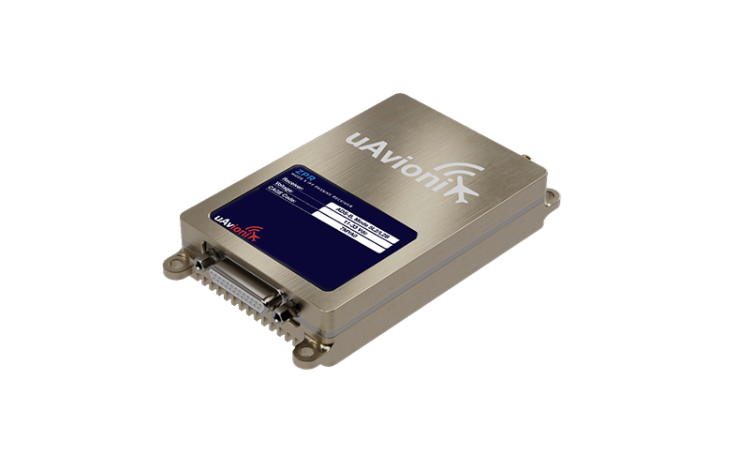

ZPR
The uAvionix ZPR integrates advanced Mode 5 Level 2/2-Broadcast IFF and 1090 MHz, 978 MHz UAT ADS-B receiver technologies to deliver comprehensive situational awareness for both military and civil airspace operations. With its robust design, low SWaP (Size, Weight, and Power), and secure cryptographic capabilities, the ZPR is optimized for diverse deployment scenarios including ground, maritime, and airborne installations.
Advanced Passive Mode 5 L2/2-B + ADS-B Receiver
The uAvionix ZPR integrates advanced Mode 5 Level 2/2-Broadcast IFF and 1090 MHz, 978 MHz UAT ADS-B receiver technologies to deliver comprehensive situational awareness for both military and civil airspace operations. With its robust design, low SWaP (Size, Weight, and Power), and secure cryptographic capabilities, the ZPR is optimized for diverse deployment scenarios including ground, maritime, and airborne installations.
PRIMARY FEATURES
Comprehensive Multi-Channel Surveillance Reception
ZPR supports simultaneous decoding of multiple surveillance signals, including 1090 MHz Mode S Extended Squitter, 978 MHz UAT ADS-B, and 1090 MHz Mode 5 Level 2 (M5L2 and M5L2-Broadcast). This ensures complete airspace awareness across civil and military environments, whether monitoring friendly assets or detecting unknowns.
Passive IFF with Secure Crypto Integration
When paired with a Mode 5 Crypto Module (KIV-77 or KIV-79), ZPR delivers full Passive Identification Friend or Foe (PIFF) capabilities in compliance with AIMS 04-900(A) Option B. This enables secure, non-emitting identification critical for both contested and cooperative operations.
Low SWaP for Any Domain
Designed with low Size, Weight, and Power (SWaP) in mind, ZPR offers exceptional flexibility for deployment on maritime vessels, ground vehicles, or airborne platforms. Its rugged form factor and versatile mounting options support global operations in austere or mobile environments.
Flexible Timing and Interface Options
ZPR offers multiple GNSS input options including commercial GPS, SAASM, and M-Code for precise timing and synchronization. Interfaces include both serial and Ethernet connections, simplifying integration and traffic data reporting across a wide range of mission systems.
ADDITIONAL FEATURES
Enhanced Performance and Integration Capabilities
Superior Sensitivity
High sensitivity receivers capture ADS-B and Mode 5 signals even in dense operational theatres.
Versatile Installation Options
Supports a range of installation scenarios with various mounting and interface choices.
Secure Tactical Communication
Features compatibility with KIV-77 and KIV-79 cryptographic units, enhancing secure military communication.
Visual Status Indicators
All components include LED indicators for power, GPS lock, and connectivity, simplifying setup and verification in the field.
User-Friendly Software Tools
Comes equipped with applications for easy monitoring and configuration.
Comprehensive Connectivity
Provides extensive interfacing options with robust connectivity features.
FAQs
Knowledge Base
Where can I use the ZPR?
The ZPR is designed for use in a wide range of mission applications for ground, maritime and airborne operations. ZPR can be installed on various platforms using its flexible mounting options and can interface with existing systems via RS-232 or Ethernet.
Does the ZPR meet FAA standards for ADS-B operations?
Yes, the ZPR complies with all applicable FAA requirements for ADS-B systems receiving both 1090 MHz and 978 MHz UAT ADS-B, ensuring reception of ADS-B broadcasting aircraft in both civil and miliatry airspace.
How do I operate the ZPR?
Operation of the ZPR involves configuring it via its PC control applications for specific modes of operation. Controls include configuration of the Mode 5 IFF and ADS-B reception.
DOCUMENTATION
ZPR Manuals & Guides
| Specification | Value |
|---|---|
| Input Voltage | 8-32V |
| Â | 1W Continuous |
| Â | Â |
| Size | 83 x 47 x 15 mm |
| Weight | 50 grams |
| Operating Temp | -45 to 70°C |
| Â | Â |
| Receiver Sensitivity | Â |
| ADS-B Rx MDL | -79dBm ±2dB |
| Mode 5 MDL L2/2-B Rx | -84dBm |
| Â | Â |
| Altimeter | Â |
| Range | -1000 to 126,750ft |
| Â | Â |
| Host Interface | Â |
| Baudrate | 57,600 bps RS-232 |
| Protocol | uAvionix OEM Protocol |
| Â | Â |
| Position Interface | Â |
| Baudrate | 115,200 bps RS-232 |
| Protocol | uAvionix OEM Protocol |
| Â | Â |
| Traffic Interface | Â |
| Baudrate | 115,200 bps RS-232 |
| Protocol | GDL90+ / DoD AIMS 23-901 |
| Â | Â |
| KIV Interface | Â |
| AIMS 04-900(A) | Option B (KIV-77 / KIV-79) |
| Crypto Emulator | Internal |
| Â | Â |
| Options | Â |
| uAvionix truFYX SIL 3 Position Source | Â |
| NSM programming for crypto emulator | Â |
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
uAvionix |
