SPC10 Series 400Hz Static Inverter | 250VA, DC ground, AC return, Remote On/Off, Phase Lock, On/Off Return
The SPC-10 static inverter utilizes solid state circuitry to convert 28 VDC to 115/26 VAC, 400 Hz sine wave power. Design features include pulse-width modulated square to sine wave power conversion permitting lightweight and reliable operation. Capable of delivering an overload of 150% of rated current for a duration not less than five minutes under all environmental conditions.
SPC-10(F) features DC ground, AC return, Remote On/Off, Phase Lock, On/Off Return. MS3106B20-16S mate.
Call for Pricing
Contact Cost Aero at 855-500-3044 for pricing

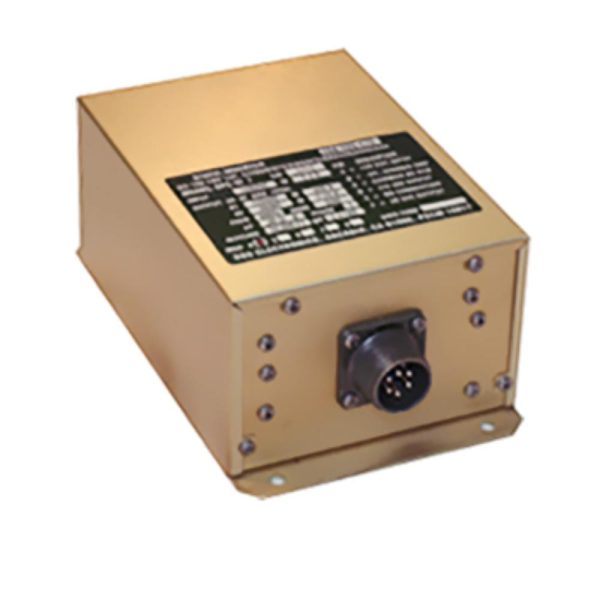

STATIC INVERTER/50 VA, 28 VDC to 115 VAC, 400 Hz, includes fault monitor
The SPC-() series static inverter uses solid state circuity to convert 28 VDC to 115 VAC, 400 Hz sine wave power. This unit provides reliable pulse-width modulated square to sine wave power conversion. The SPC-5() Series units deliver an overload of 150% of rated current for a duration not less then five minutes under all environmental conditions.

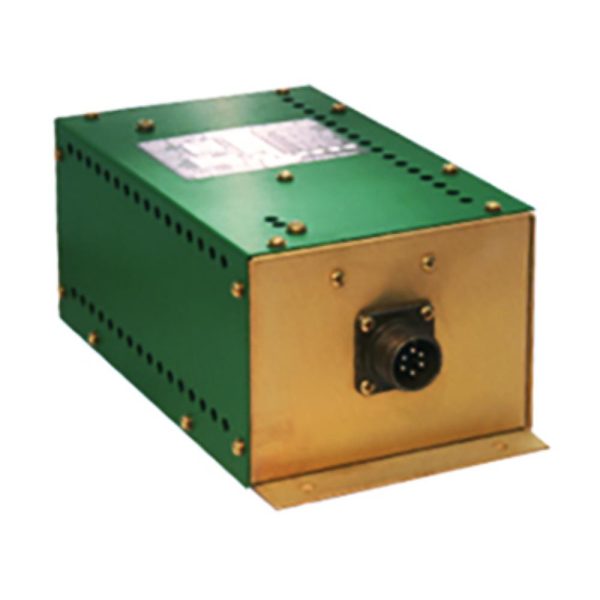

SPC10 Series 400Hz Static Inverter | 100VA, DC ground, AC return, Remote On/Off, Fault Monitor
The SPC-10 static inverter utilizes solid state circuitry to convert 28 VDC to 115/26 VAC, 400 Hz sine wave power. Design features include pulse-width modulated square to sine wave power conversion permitting lightweight and reliable operation. Capable of delivering an overload of 150% of rated current for a duration not less than five minutes under all environmental conditions.
SPC-10(D) features DC ground, AC return, Remote On/Off, Fault Monitor. MS3106B18-9S mate.
Call for Pricing
Contact Cost Aero at 855-500-3044 for pricing
DC POWER CONVERTER/High powered regulated boost DC converter, 400 watt
The RHB40 is primarily designed for 28 Vdc buss systems to deliver regulated 24 Vdc power. The RHB40 will operate from an input voltage range of 12-24 Vdc (down to 8Vdc in abnormal mode) with continuous output current up to 16.6 amps and 190% overload current capability (31.5 amps).
Call for Pricing
Contact Cost Aero at 855-500-3044 for pricing
FREQUENCY CONVERTER/3 phase 400 Hz to 1 phase 230 VAC
KN72 UNIV LOC/VOR CONVERTER
The KN72 is a remote mounted VOR/LOC converter designed to operate with NAV receiver and VOR/LOC indicator to provide OMNI directional range or localizer information. Design features include improved VOR scalloping rejecting, versatile mounting, low power consumption, and externally adjustable VOR centering, localizer centering and course width.
AC TO DC POWER SUPPLY/115V, 400Hz AC to regulated and controllable 280 watt DC output
The PH28 is a pulse width modulated ac to dc power converter that provides regulated 4-28 Vdc output with up to 10 amperes continuous output current. This converter is primarily designed for 115V/400 Hz aircraft systems to deliver variable 4 to 28 Vdc power to incandescent lamps or LED loads for airborne/ground instruments, navigation and electronic systems.The unit can also be used as a fixed output voltage source between 14 Vdc and 28 Vdc.
Call for Pricing
Contact Cost Aero at 855-500-3044 for pricing
Airlink 3085IA Airborne and Missions Supreme Wired Headset
The Airlink 3085IA Airborne and Missions Supreme Wired Headset is stereo-capable and features Talk-Thru microphones on the earcups that mute automatically during loud impulsive sounds like gunfire or blasts. With a rugged, low-profile design and water submersion capabilities, it’s ideal for Rescue Diver and Navy SEAL support operations. It offers 25 dB of passive noise attenuation and connects to the WI441A belt pack for a wireless ICS link to the base.
7-163PIN160 Logic Converter Unit | Extended Temperature version
The 163PIN160 logic converter unit maintains continuity for broadband frequency hopping for secure V/UHF communications in high performing military aircraft. This unit allows radios to seamlessly integrate with antennas to maximize reliability and resilience of communications. Chelton's logic converters take frequency information from the radio and matches that to their tunable antennas.
Call for Pricing
Contact Cost Aero at 855-500-3044 for pricing
AC TO DC POWER SUPPLY/AC to regulated 28 Vdc power converter, 1200 watt
The WH120 DC power supply from KGS converts a 115/200 VAC, 4 wire Wye, 400 Hz, 3-phase input to a regulated 28 VDC up to 1,200 watt continuous output. This power supply features off-line rectification, a pulse width-modulated DC-to-DC step-down voltage converter, and a rugged, high power IGBT power module. The WH120 is designed for use with mobile and ground vehicle equipment and lighting systems that require a regulated 28 VDC power source.

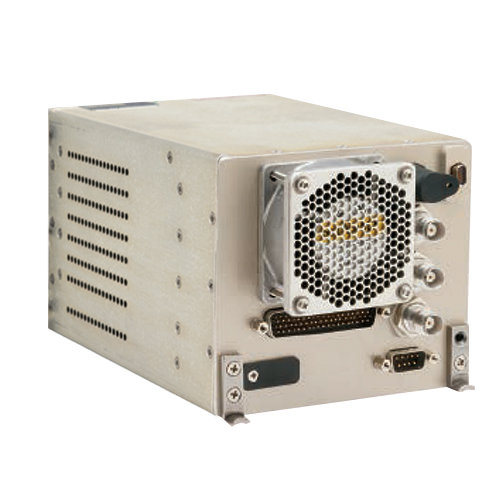

RT-7000 Remote Mount Tactical Radio | 3 APX cards, Slot 1: APX, Slot 2: VHF, UHF; APX, Slot 3 VHF, UHF, 700/800 MHz, P25 Phase 1 & 2 Trunking, Multi-Key AES/DES/DES-XL/DES-OFB
The RT-7000 Remote Mount Tactical Radio (RMR) is an LRU that is designed for rack mounted installations in fixed wing aircraft and helicopters and will satisfy all public safety and para-public voice communications needs. The RT-7000 provides P-25 Phase 1 and 2 digital modulation across the entire range. With the addition of up to two modules, it can also cover VHF, UHF, and 700/800 MHz public safety bands including trunking and Motorola-proprietary radio network features.
Call for Pricing
Contact Cost Aero at 855-500-3044 for pricing
