RAMI AV-924HS Airborne Communications | Special Use
The AV-924HS antenna was developed to be used with airborne FM transceivers typically used in first responder type aircraft providing a single antenna solution for the multiband transceivers. This antenna operates at VHF and UHF frequencies. It meets DO-160G, section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown related rotor frequencies. The AV-924HS meets the environmental requirements for flight speeds up to Mach 1 and supersedes the AV-924 part number. It is the same form, fit and function.

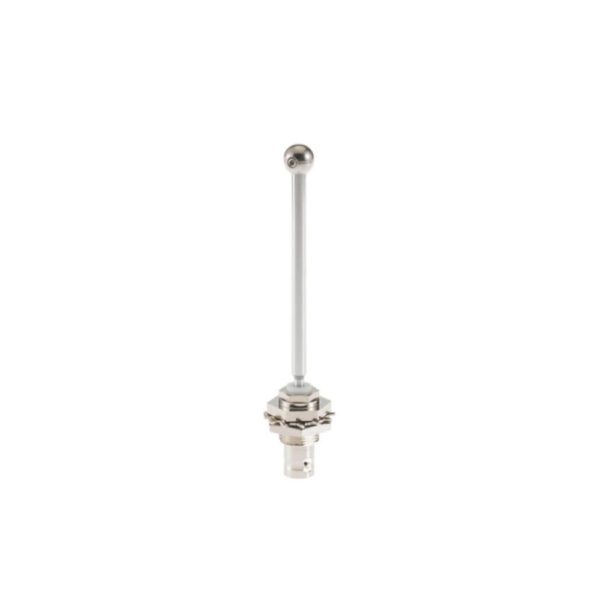

RAMI AV-21 Special Use | UHF
RAMI AV-925 Airborne Communications
The AV-925 antenna was developed to be used with airborne FM transceivers. It is typically used in first responder type aircraft providing a single antenna solution for multiband transceivers. It has met DO-160G, Section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown related rotor frequencies. It is also qualified to perform as a 406 MHz ELT antenna, and is well suited for this function on higher speed, fixed wing aircraft.
RAMI AV-15 Airborne Communications | UHF
The AV-15 is used with aviation, land mobile radio, and flight phone bands. The durably constructed chrome-plated phosphor bronze whip is set in a teflon insulator and the chrome-plated ball tip provides low noise static discharge. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.75 lb @ 250 mph.

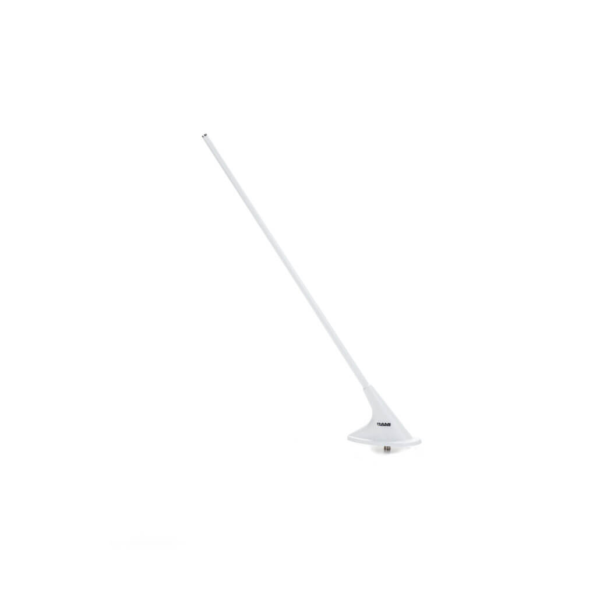

RAMI AV-14 Airborne Communications | VHF
RAMI AV-64 Marker Beacon
The AV-64 is a boat type marker beacon antenna designed for very low drag. It is constructed of an acrylonitrite-styrene-acrylic (ASA) shell with the internal parts encapsulated in rigid urethane foam for mechanical and electrical stability. The white color allows for maximum performance without losses due to color pigments or unseen dirt.
The antenna is supplied with cellular neoprene mounting pad and hardware.
The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.22 lbs @ 250 mph. This antenna is a direct replacement for the CI 102.
RAMI AV-569 Marker Beacon | VHF
The AV-569 is a boat type marker beacon antenna designed for very low drag. It is constructed of an acrylonitrile-styrene- acrylic (ASA) shell with the internal parts encapsulated in rigid urethane foam for mechanical and electrical stability. The white color allows maximum performance without losses due to color pigments or unseen dirt. It is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.20 lb @ 250 mph.
RAMI AV-701 General Aviation ELT Antenna
This general aviation antenna is intended for use with an ELT (Emergency Locator Transmitter). It is a passive single port three frequency aircraft blade antenna, designed for high speed aircraft. The circuit Board Housing is made from Polycarbonate. This antenna operates at VHF and UHF frequencies.
RAMI AV-402 Airborne ELT Antenna
RAMI AV-401 Airborne ELT Antenna
RAMI AV-300 ELT Communication
The AV-300 ELT antenna is intended for use with a 406 MHz ELT (Emergency Locator Transmitter) for General Aviation. It is a passive three frequency fiberglass rod whip antenna, designed for low speed aircraft (up to 350 knots). It has met DO-160G, Section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown rotor frequencies.
