RAMI AV-7F & AV-7M Ground Vehicular VHF Communications
The AV-7 is a high performance vehicular antenna for use on all surface vehicles where communications on the aircraft VHF COM frequency band are required. It features heavy duty construction with a tapered 17-7PH stainless steel whip and spring mount. All exposed fittings are chrome-plated brass or stainless steel.
Mounting is easily achieved on rooftop, cowl, fender or other suitable location via a magnetic or fixed “NMO” base. The antenna comes pre-tuned to operate in the aircraft VHF COM frequency band of 118-137 MHz and can be purchased as a complete package or separate antenna and mounting base.
RAMI AV-3 Ground Vehicular | VHF Communications
The AV-3 is a general aviation, low profile, snap-in mounting quarterwave antenna for use on ground vehicles. It has a solderless cable connection at the antenna and is supplied with 17 ft. of cable and a PL-529 connector. The antenna is field tunable by simply cutting the whip to the required length.
RAMI AV-210 Airborne CAP | VHF
RAMI AV-535 Bent Whip Antenna | FM Extended Band
RAMI AVT-4 Airborne Communications | VHF
The AVT-4 is a broad-band VHF communications antenna. It incorporates a low drag blade housing design for high strength and a radiating element encapsulated in rigid polyurethane foam. The housing is finished with a Skydrol resistant white polyurethane paint and comes with mounting hardware and neoprene mounting pad. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.85 lb. @ 250 mph.
RAMI AV-534L Airborne Communications | VHF
The AV-534L is a heavy-duty stainless steel quarterwave VHF communications antenna. It is manufactured with a durable type stainless steel whip and large stress-relieved ferrule and comes complete with porcelain insulators and mounting hardware. The antenna is designed to operate at speeds of up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.56 lb @ 250 mph. An 8 foot transmission line with connectors is also supplied.
RAMI AV-534 Airborne Communications | VHF
The AV-534 is a heavy-duty stainless steel quarterwave VHF communications antenna. It is manufactured with a durable type stainless steel whip and large stress-relieved ferrule and comes complete with porcelain insulators and mounting hardware. The antenna is designed to operate at speeds of up to 350 mph and altitudes of 50,000 ft. It has a drag force of 0.56 lb @ 250 mph.

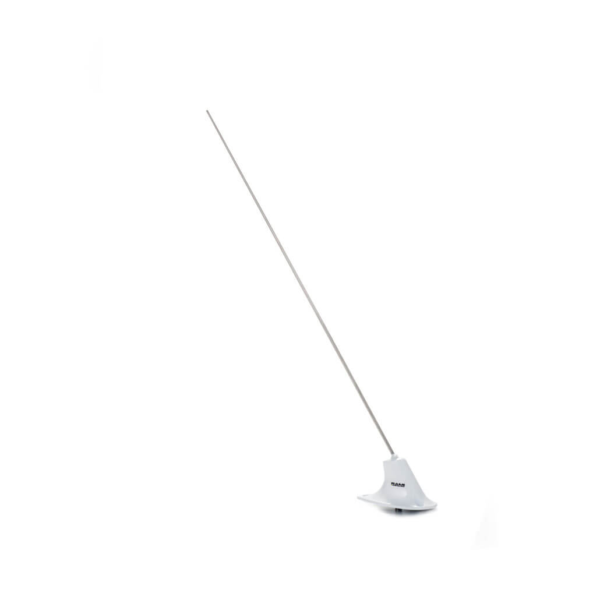

RAMI AV-530 Airborne Communications | VHF
The AV-530 is designed for broadband communications. The antenna has a die-cast aluminum base and a tapered stainless steel whip for less drag at higher airspeeds. It is supplied with a weather-sealing gasket and mounting hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 1.65 lb @ 250 mph. This antenna is a direct replacement for the CI 292-1.
RAMI AV-17 Airborne Communications | VHF
The AV-17 is a general aviation antenna designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and is low in profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.66 lb @ 250 mph. This antenna is a direct replacement for the CI 122.

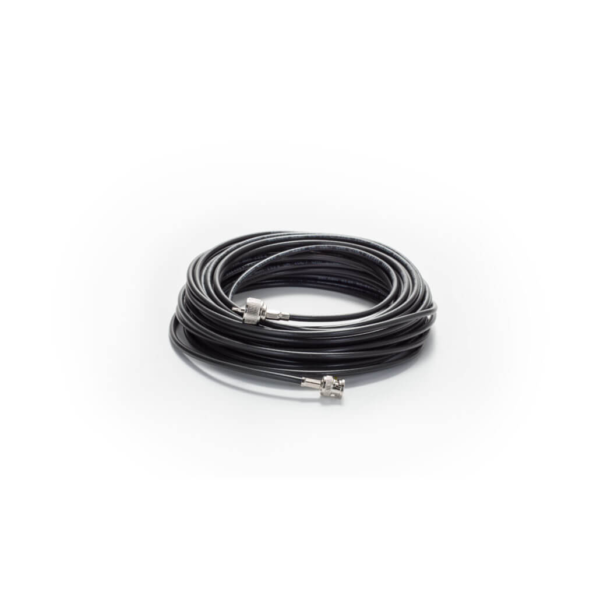

RAMI AV-6 Cable Assembly
RAMI AV-1FG Base Station | VHF
The AV-1FG is a base station antenna for communications mounted on top of a quick erect fiberglass telescoping mast which can be extended anywhere from approximately 5’ 6” to 27’ tall in 5’ increments. The mast is supplied with guy rings, guy ropes and anchor stakes for security when erected. This kit can be used with Becker Avionics GK615 and GK616 VHF radios.

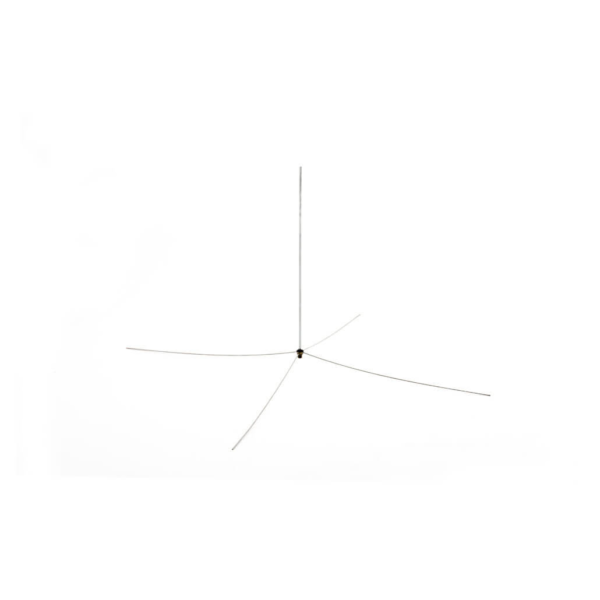

RAMI AV-5 Base Station | VHF
The AV-5 is an economical Ground Plane base station antenna for general aviation. It is ideally suited for use with Unicom transceivers and is field tunable to optimize VSWR at desired frequency. Durably constructed of high quality materials for a long operational life, the antenna is designed to withstand wind speeds up to 100 mph.
