RAMI AV-520 VOR/LOC/GS Antenna
DM H21-1 Antenna Coupler | Includes Marker Beacon Support
The H21-1 dual VOR or dual marker beacon diplexer will permit operation of two NAV receivers form one VOR antenna or two marker beacon receivers from one marker beacon antenna. The unit is housed in an aluminum case and all circuit components fully encapsulated for vibration protection as well as waterproof protection.
VHF Communications Antenna | 118-137 MHz, 4 Hole Mount, BNC Female Connector, Gloss Black
The AV-17 is designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and is low in profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.66 lb @ 250 mph. This antenna is a direct replacement for the CI 122.
This VHF communications antenna has a gloss black finish.
CI 292-1 VHF Whip Antenna | 118-137 MHz, BNC
The CI 292-1 is specifically designed to be mount on top of the aircraft while providing excellent omni-directional coverage for all VHF communication frequencies. The CI 292-1 features a straight, tapered stainless steel radiator. This antenna has been updated to meet RTCA DO-160D environmental requirements while offering frequencies from 118 MHz to 137 MHz associated with DO 186 MOPS.
RAMI AV-300 ELT Communication
The AV-300 ELT antenna is intended for use with a 406 MHz ELT (Emergency Locator Transmitter) for General Aviation. It is a passive three frequency fiberglass rod whip antenna, designed for low speed aircraft (up to 350 knots). It has met DO-160G, Section 8, Category U requirements for robust vibration and is qualified for installation on helicopters with unknown rotor frequencies.
CI 106 UHF RADIOTELEPHONE ANTENNA/BNC Female Connector, 450-470 MHz, 50 Ohms, 50 Watts, Airspeed 250 Knots
CI 273 RADIOPHONE STUB ANTENNA/BNC Connector, 403-512 MHz, 50 Ohms, 50 Watts, Airspeed 250 Knots
The CI 273 is a UHF radiotelephone stub antenna has its electrical performance specified over the frequency range of 403 MHz to 512 MHz in various band segments. It is also designed to withstand the environment associated with the underside of an aircraft. The antenna radiator is mechanically captivated and seated against leakage. All exposed metal surfaces are nickel-plated for corrosion resistance and long service.

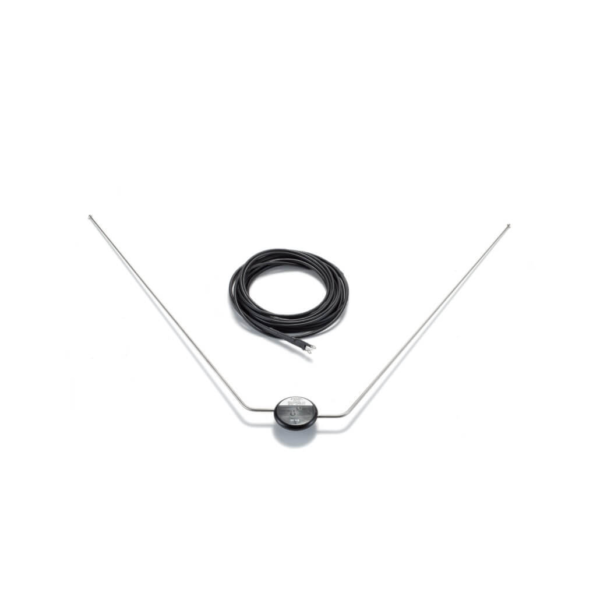

RAMI AV-12L VOR/LOC/GS Receive Only Antenna
The AV-12 is a VOR/LOC/GS receive only antenna which uses a highly efficient technique of molding the elements directly into a high-impact thermo-setting bakelite center insulator. The stainless steel elements are ground to close tolerances to provide a low profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.92 lb @ 250 mph. The AV-12L operates at both UHF and VHF frequencies. A 25-ft. transmission line with integral balun transformer is also supplied.
CI 105-11 DME Transponder Antenna
The CI 105-11 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has a standard two stud mounting configuration. It includes a TNC connector and covers 960 MHz to 1220 MHz frequencies and is rated to 400 Knots TAS at 25,000 feet.
RAMI AV-535 Bent Whip Antenna | FM Extended Band
ELT ANTENNA/WHIP TYPE/for use with ARTEX ELT’s 110-406
