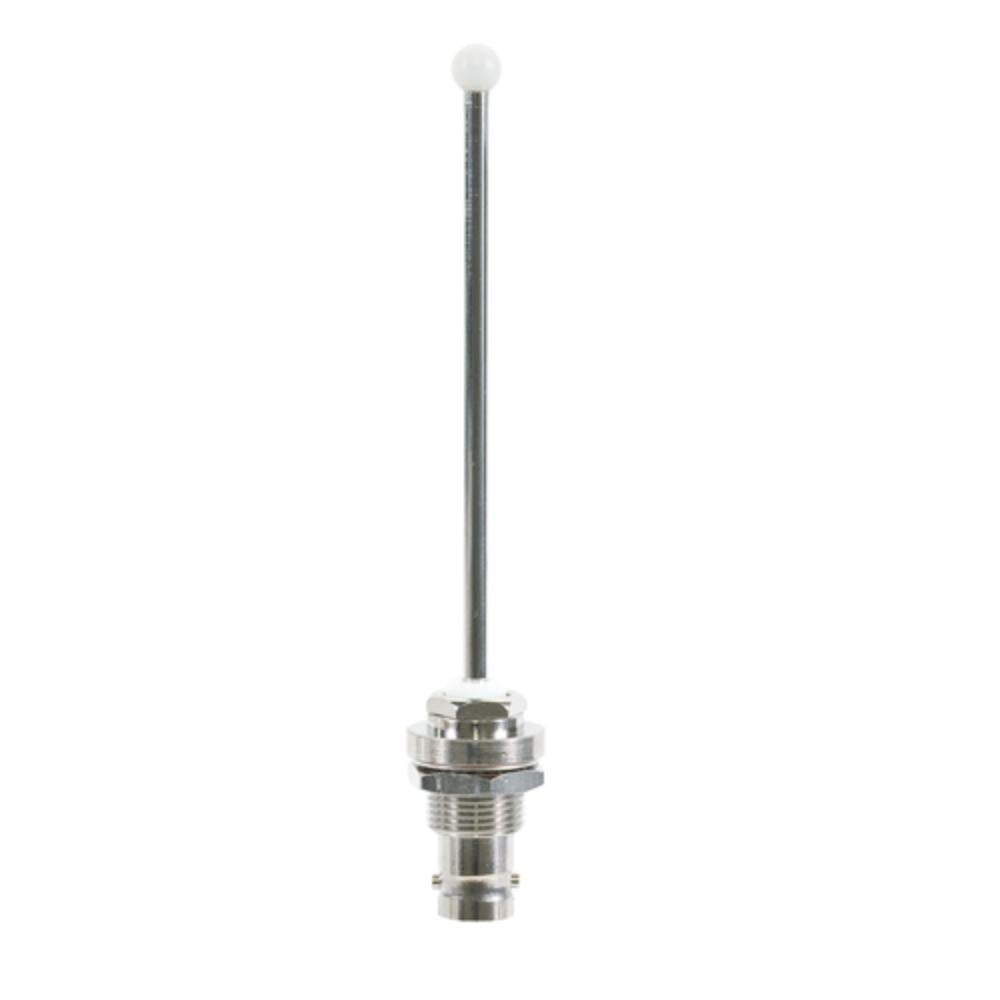

CI 306 UHF ANTENNA/BNC Female Connector, 800-870 MHz, 50 Ohms, 50 Watts, Airspeed 250 Knots
$434.66
The CI 306 is a UHF radiotelephone stub antenna designed to withstand the environment associated with the underside of the aircraft. The antenna radiator is mechanically captivated and sealed against leakage. All exposed metal surfaces are nickel-plated for corrosion resistance and long service.
Stub-type antenna tuned for the 800-870 MHz radio telephone band. Intended for use on low-flying aircraft and helicopters.
CI-306 available with BNC connector and mounts through a single 0.600″” diameter hole.
CI-306-5 available with a type N connector in which a mounting hole diameter of 0.800″” is required.
Other connectors available. See P/N’s to order a different connector.
Specifications
Weight:
0.15 lb
Height:
4 in
Frequency:
800–870 MHz
VSWR:
1.5:1
Polarization:
Vertical
Radiation pattern:
Typical of 1/4 wave stub
RF power:
50 watts
Altitude:
25,000 ft
Connector:
BNC
Mounting:
One-hole mounting
Material:
Nickel-plated brass
Finish:
Tin-nickel alloy
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | Comant |
