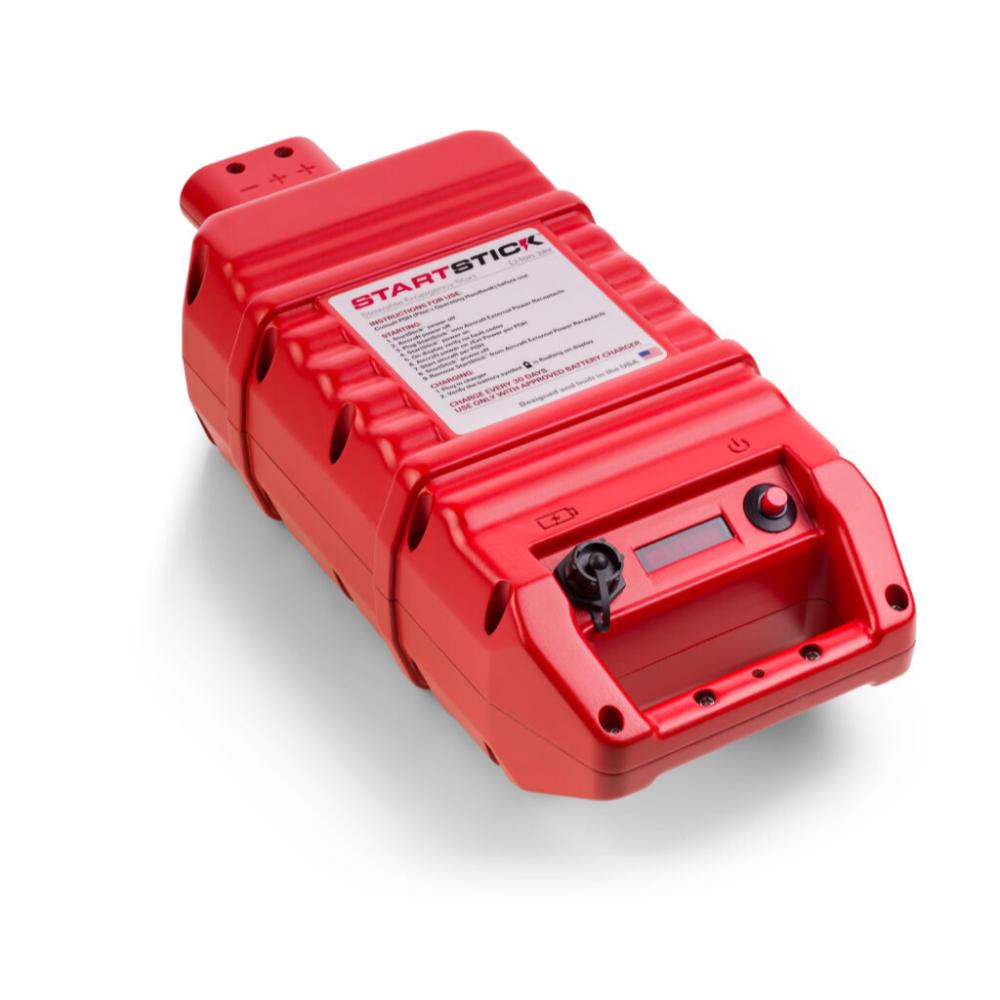

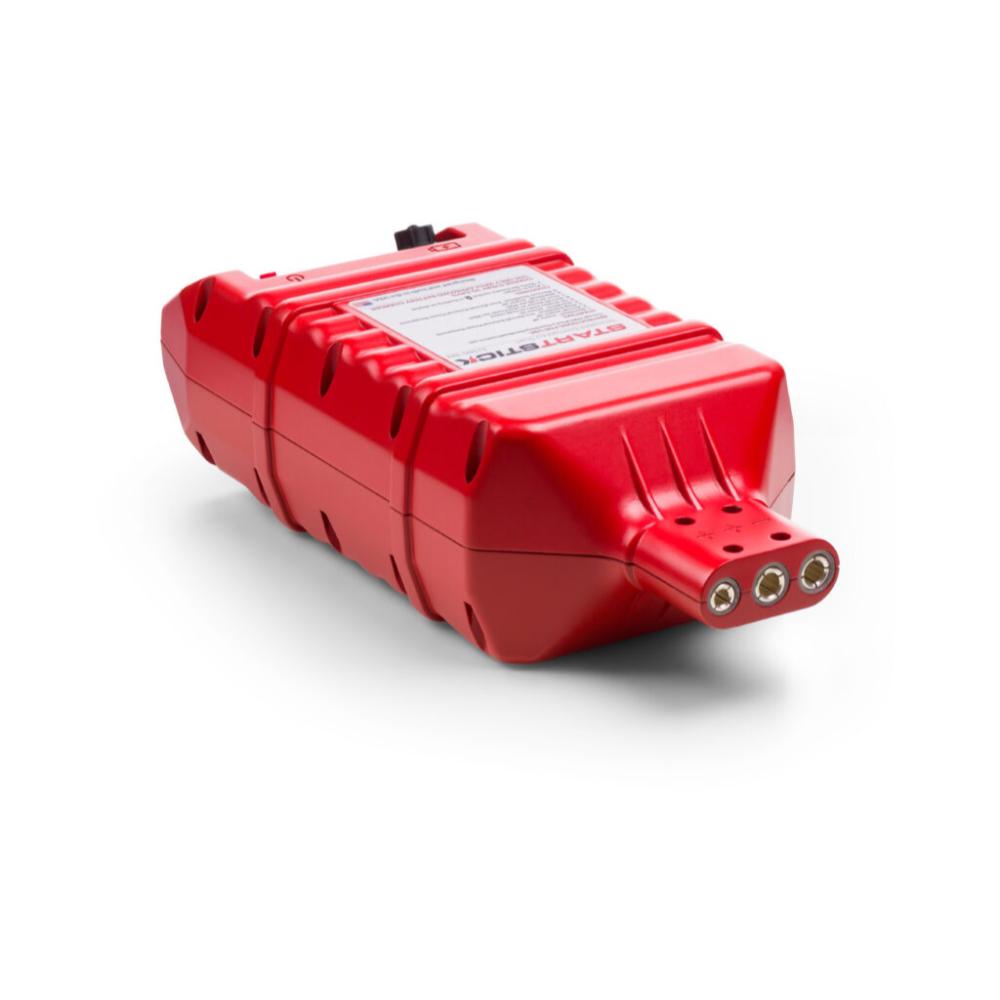

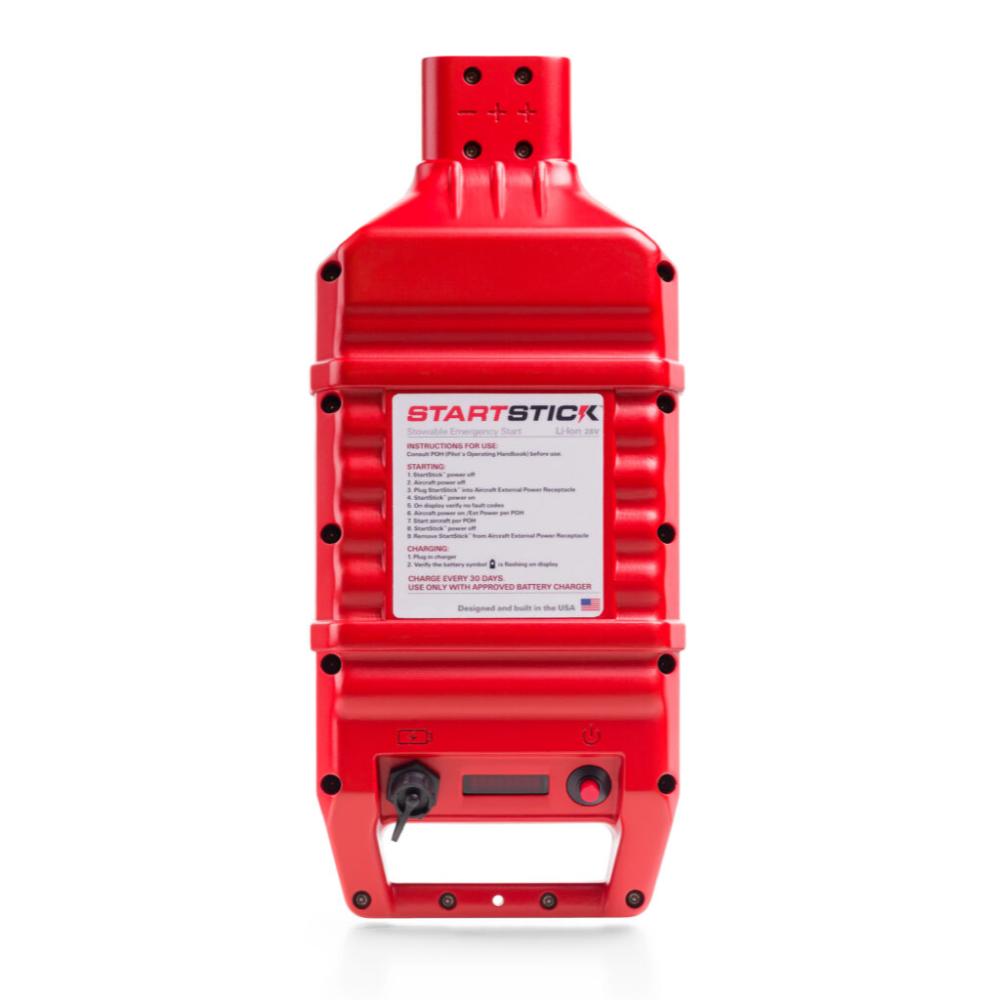

Lightweight, safe and convenient, StartStick® is the most advanced, portable ground power unit (GPU) on the market. The StartStick 20 is compatible with fixed-wing aircraft and helicopters and provides a 20 amp-hour capacity.
Benefits
- Ideal for ramp maintenance, emergency starts and database updates
- Over and under voltage protection
- Over current and short circuit protection
- State of charge and voltage display
- In-flight Charging (using optional receptacle)
- 2.8 hours for complete recharge when the battery is fully discharged
- On-board diagnostics
Specifications
Weight
20.2 lbs
Dimensions
17.25″ L x 7.31″ W x 4.27″ H
Load on GPU Connector
14.9 lbs/foot
Capacity
20 Ah
Voltage
26.4 Volts (nominal)
Max Current
1,600 Amps (Pulse) / 400 Amps (Continuous) / 51,733 (Chemistry)
Operating Temperature
0°C to 60° (32°F to 140°F)
Starts per Charge
3 – 4 starts
Time Before Discharge
60 minutes
Charge Cycles
>1,000 cycles
Engine Starts
3,000 – 4,000 start cycles
