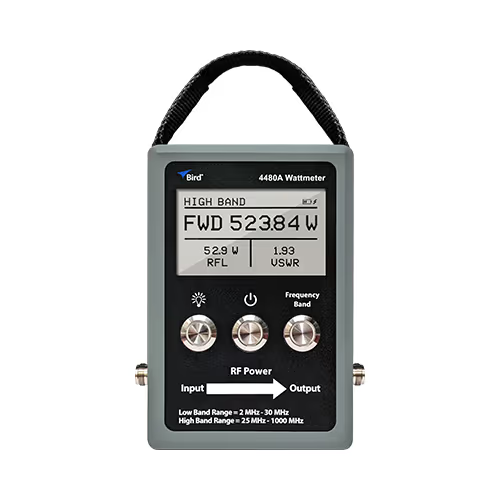

4480A RF Wattmeter | 2 MHz to 1000 MHz
$4,394.50
The Bird 4480A Wattmeter is designed to meet the rigorous demands of today’s RF measurement landscape. With true average power measurements for both Continuous Wave (CW) and digitally modulated signals, the 4480A ensures precision across critical frequency spans from 2 MHz to 30 MHz and 25 MHz to 1000 MHz—without the need for traditional, cumbersome elements.
Features
- Simplifies measurement across multiple frequency bands without frequency-specific elements
- Measures true power for both continuous wave (CW) and digitally modulated signals
- Supports a wide frequency range from 2 MHz to 1000 MHz, making it adaptable to various RF applications
- Up to 10,000 Watts, making it one of the most versatile wattmeters on the market
- ±4% accuracy ensures reliable power measurements for optimized system performance
- Ensures optimal performance in wireless systems like cellular, satellite, and Wi-Fi
- Maintains signal integrity in TV and radio transmission
- Ensures reliable performance of tactical and strategic RF systems
- Supports precision in complex communication and radar systems
Specifications
Weight:
2.9 lb (1.32 kg) typical, including batteries
Dimensions:
5 x 7.3 x 2.65 in (127 x 185.42 x 67.31 mm)
Frequency Range:
Low Band:Â 2 MHz to 30 MHz
High Band: 25 MHz to 1000 MHz
Power Range:
2 MHz to 30 MHz:Â 10 W to 10 kW, low band
25 MHz to 1000 MHz: 1 W to 1 kW, high band
Accuracy:
±4% of reading (±0.18 dB)
Peak to Average Ratio:
10 dB max.
Directivity:
25 dB min., 30 dB typ.
Impedance:
50 Ω nominal
Input Attenuator Range:
0 to 30 dB, 1 dB step
LCD Display:
Transflective, white LED backlit
Battery Type:
Internal, NiMH 6-AA
Battery Operating Time:
Minimum 8-10 hours
Battery Charge Time:
6-8 hours typical (Recharge on or off)
Calibration Interval:
Recommended interval of 12 months
Power Supply:
DC 12V, 2A (0.6A max. draw)
RF Connectors:
Type N(f); QC type, field changeable
Operating Temperature:
32°F to 122°F (0°C to 50°C)
Storage Temperature:
-40°F to 159.8°F (-40°C to 71°C)
| Brand | BIRD Electronics |
|---|
