50 Watt RF Power Attenuator | 10dB, Male/Female
$379.50
50-A Series, 50 Watt RF Power Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.

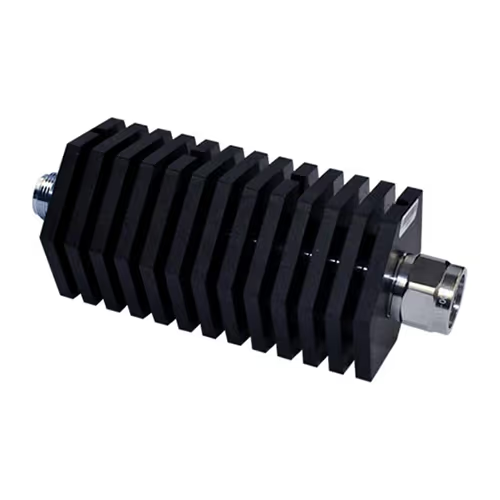

This 50 Watt RF Power Attenuator has a 10dB attenuation with male to female connections.
Features
- Self cooling design, needs no cooling plate.
- Frequencies up to 3 GHz.
- Fully shielded against production of extraneous radiation.
- Attenuator require no AC power.
- Rugged construction.
- Broadband operation.
- Other attenuation values may be available upon request.
- Models to cover all LTE frequencies.
Specifications
Weight:
1.0 lbs (454 g)
Dimensions:
6.4 x 2.3 in (163 x 59 mm)
Frequency Range and VSWR:
1.10:1 from DC to 1 GHz
1.25:1 from 1 to 3.0 GHz
Coolant Method:
Dry, Convection Cooled
Impedance:
50 Ohm
Operating Position:
Any
PIM:
-110 dBc Min
Attenuation:
10 dB
Connector Gender:
Male/Female
Connector Type:
N Connector
AC Power:
None
Ambient Temperature:
-40°F to 104°F (-40°C to 40°C)
Humidity:
95% max (non-condensing)
Finish:
Black Anodized Aluminum
| Brand | BIRD Electronics |
|---|
