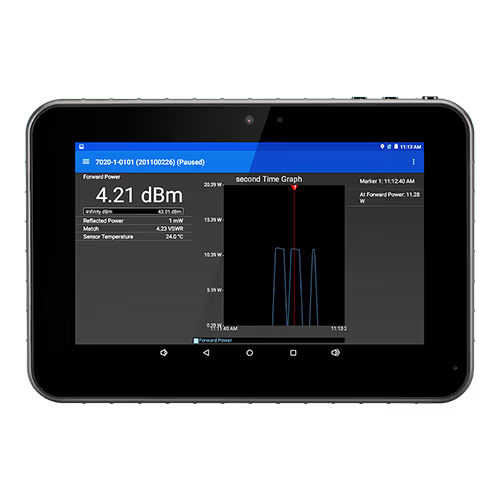

5000-NG Digital Power Meter Display
Contact Cost Aero at 855-500-3044 for pricing
Bird’s 5000-NG RF Power Meter Display is the ultimate solution for power measurement with automatic sensor detection. This advanced handheld meter revolutionizes RF power meter testing, providing accurate and effortless data collection and display on its high-resolution touch screen. Whether you’re in the field or lab, the 5000-NG makes reviewing data a breeze.
Features
Features:
- High-resolution 8″ color touch screen display for worry-free field use
- Automatic sensor detection compatible with over 12 supported Bird field sensors
- Extended battery life of up to 48 hours for prolonged use
- 5.0 Megapixel camera for documenting equipment serial numbers and model numbers
- Tried and true power measurement with simple set-up
- Data logging, numerical & graphics display for comprehensive analysis
- Easy data transfer via USB or WiFi connectivity
Key Measurements:
- True Average Power (Forward and Reflected)
- VSWR, Return Loss, rho, Match Efficiency
- Peak Power, Peak to Average Ratio, Crest Factor, PEP
- Burst and Burst Average Power
- CDF, CCDF, Confidence %
- IEEE 194 Pulse Parameters
- Sensor Temperature
Specifications
Weight:
1.3 lb (0.59 kg)
Dimensions:
9.2 x 6.3 x 1.1 in (233 x 160 x 28 mm)
Display:
Full-Color 8” 1280 x 800-pixel display w/backlight
Operating System:
Android 5.1
Languages:
English
Storage:
16 GB
Data Transfer:
USB drive, PC, WiFi, or Bluetooth
Battery Type:
Rechargeable, 3.7 V/6200 mAh lithium battery
Battery Life (display in sleep mode):
24 hr (continuous usage)
Battery Charge Time:
6 hours (typical)
Recommended Calibration Interval:
No calibration required (sensor calibration recommended)
Frequency Range:
2 MHz to 6 GHz with external power sensors (not included)
Connectors:
USB: Micro USB PC interface & charging and Standard USB power sensor interface
Power Supply:
AC:100 to 240 V / 50-60 Hz
DC: 5V/2.5 A
Upgradeability:
Firmware field-upgradable via USB port
Additional Functions:
Data logging, numerical & graphing display
Sensor Detection:
Automatic USB Sensors, WiFi 802.11 Network scan for ACMI, BPME & CPM
Operating Temperature:
-20°C to 60°C (-4°F to 140°F)
Storage Temperature:
-20°C to 80°C (-4°F to 176°F)
Altitude:
Up to 15,000 ft (4,572 m)
| Brand | BIRD Electronics |
|---|
