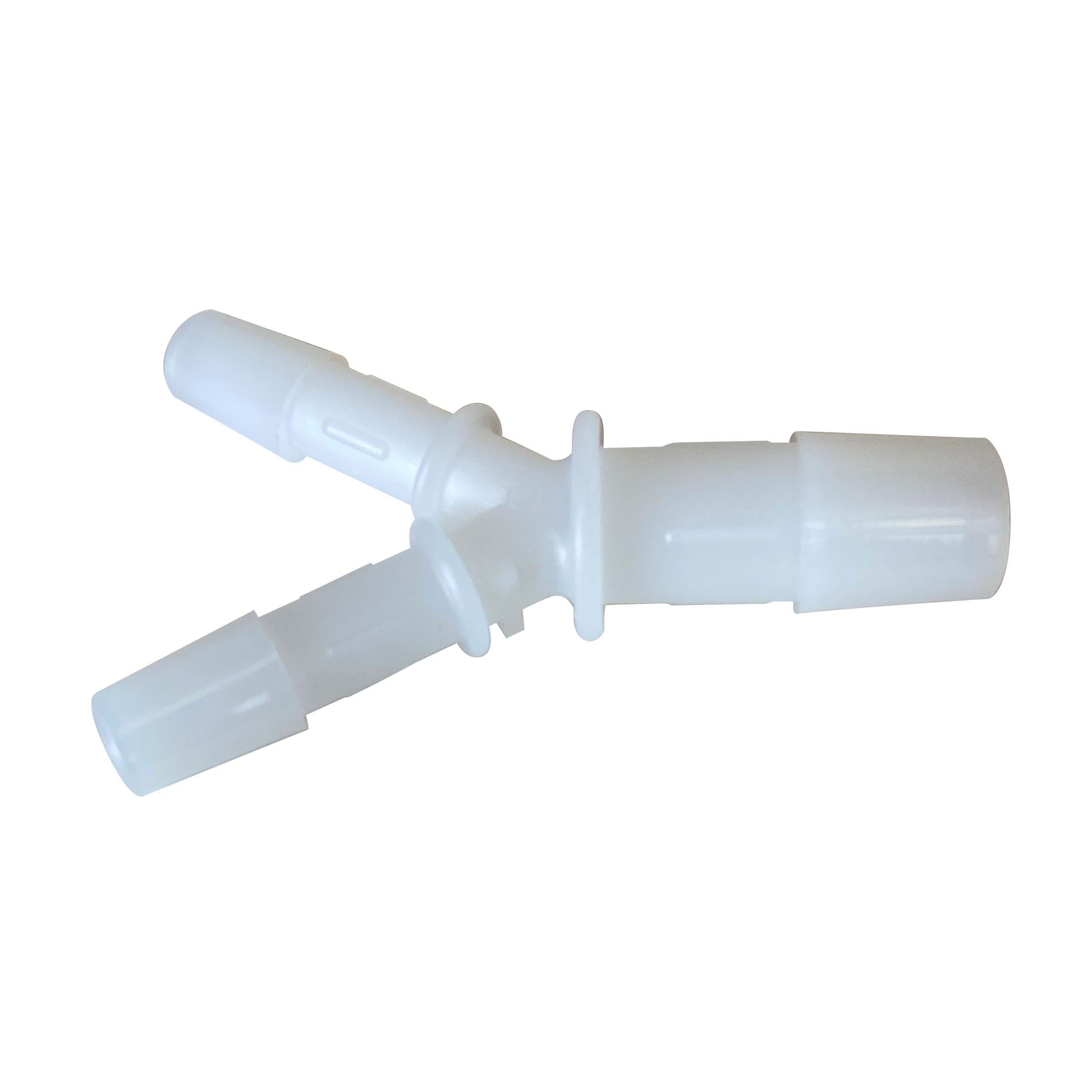

5463K722 3/8″ Wye Fitting
$18.40
1- 3/8″ Wye Fitting, PN: 5463K722.
This wye fitting takes the two 1/4″ tubes into a single 3/8″ exit tube for venting capabilities on the ETX900-TSO or ETX900-VNT lithium aircraft batteries. This does not work with the ETX680-24-VNT or the ETX680-24-TSO battery.
11
Items sold in last 13 days
5
People watching this product now!
Description
1- 3/8″ Wye Fitting, PN: 5463K722.
This wye fitting takes the two 1/4″ tubes into a single 3/8″ exit tube for venting capabilities on the ETX900-TSO or ETX900-VNT lithium aircraft batteries. This does not work with the ETX680-24-VNT or the ETX680-24-TSO battery.
Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
EarthX Batteries |
