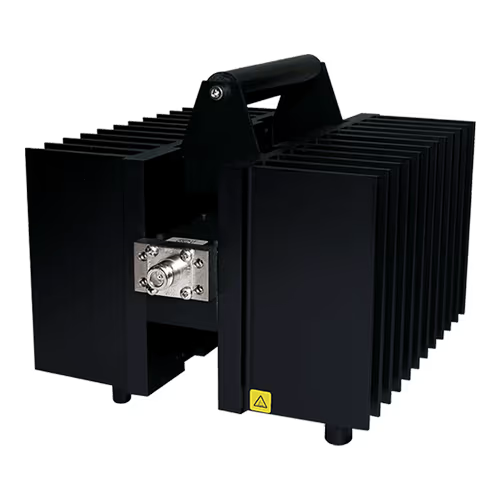

600 Watt RF Power Attenuator | 30 dB, Female/Female Attenuator
Contact Cost Aero at 855-500-3044 for pricing
600-A Series, 600 Watt RF Power Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.
This 600 Watt RF Power Attenuator has a 30dB attenuation with female to female connections.
Features
- Self cooling design, needs no cooling plate
- Frequencies up to 2.4 GHz
- Fully shielded against production of extraneous radiation
- Attenuator require no AC power
- Rugged construction
- Broadband operation
- Other attenuation values may be available upon request
- Models to cover all LTE frequencies
Specifications
Weight:
21.5 lb (9.8 kg)
Dimensions:
12.7 x 9.4 x 9.6 in (323 x 239 x 244 mm)
Power Rating:
600 W
Connector:
N
Frequency Range and VSWR:
1.10:1 from DC to 1 GHz
1.25:1 from 1 to 2.4 GHz
Coolant Method:
Dry, Convection Cooled
Impedance:
50 Ω
Operating Position:
Any
Temperature:
-40 to 40°C (-40 to 104°F)
PIM:
-110 dBc min
AC Power:
None
Humidity:
95% (Non-condensing)
Standard Attenuation Values:
3, 6, 10, 20, 30 dB
Finish:
Black Anodized Aluminum
| Brand | BIRD Electronics |
|---|
