6430360-11 MAX Power USB Charger
$548.00
Model Number: TA360-CAL
Technical Description

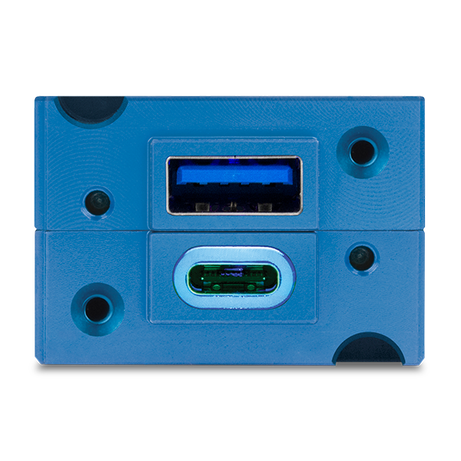

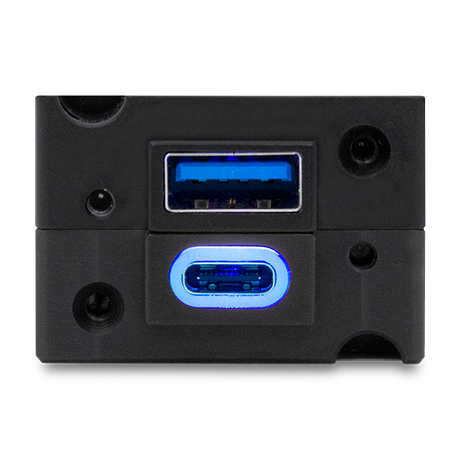

This TA360 USB charger provides 3.0 amps per charging port and delivers up to 60 watts of power per PD port. The dual USB-A / USB-C PD charger is lighted and is designed with a rear connector. This MAX Power USB charger is TSO certified and backed by a Limited Lifetime Warranty.
Benefits
- Simultaneously provides 3.0 amps per charging port
- 22 – 32 VDC input voltage
- Delivers up to 60 watts of power per PD port
- Dual, USB-C PD / USB-A connectors
- Compatible with USB-C PD, traditional USB-C and USB-A devices
- Charge two devices simultaneously at maximum power
- Short circuit, power surges, overload and over temperature protection
- In-seat, cabin, cockpit and galley applications
- Designed and built in Wichita, Kansas, USA
- Limited lifetime warranty
Specifications
Input Voltage
22 – 32 VDC
Input Power
USB-C PD; 66 W per port (maximum)
USB-A; 18 W per port (maximum)
Output Voltage
USB-C PD; 5 – 20 VDC per port (variable)
USB-A; 5 VDC ± 0.25 per port
Output Power
USB-C PD; 60 W per port (maximum)
USB-A; 15 W per port
Output Current
3.0 amps per port
USB Connector
Dual USB-C PD and USB-A configuration
Weight
1.8 ounces (51 grams)
Dimensions
1.5” W x 1.03” H x 2.0” D
Mating Connector Kit
MCI P/N 9017960 (included)
Mounting
Front or rear; faceplates and adapter plates (optional)
Installation
In-seat, cabin, cockpit and galley
Faceplates
9017958
9019384-4
Adapter Plates
9017947
Dust Covers
9019313-1
9019313-2
Case
Anodized aluminum, black
Certification
FAA TSO C71
EASA ETSO C71
RTCA DO-160G
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
Mid-Continent Instruments and Avionics |
| Color |
Black ,Blue |
