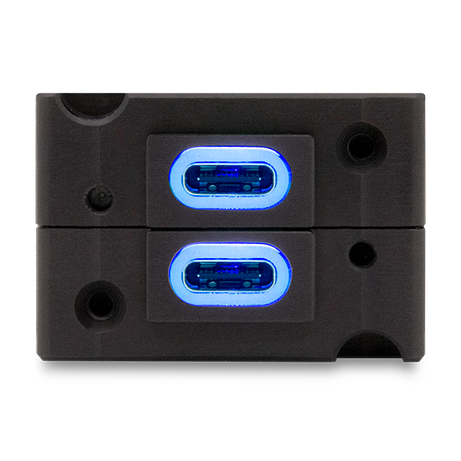

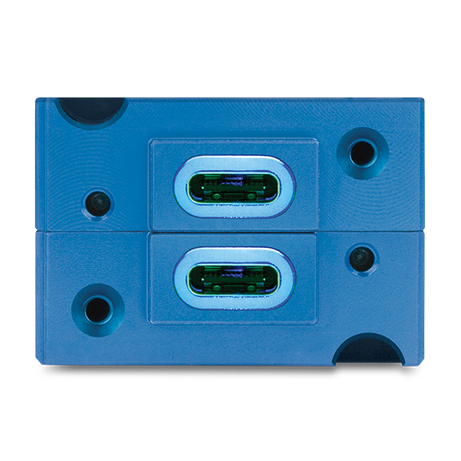

6430360-13 MAX Power USB Charger
$698.00
Model Number: TA360-CCL
Technical Description
Power up with the fastest USB charging technology. This lighted, Dual USB-C charger features the latest USB Power Delivery (PD) Technology and delivers up to 60 watts of power per PD port. It is designed with a rear connector and allows for easy in-seat, cabin, cockpit and galley installation. This MAX USB charger is TSO certified and backed by a Limited Lifetime Warranty.
Benefits
- Simultaneously provides 3.0 amps per charging port
- 22 – 32 VDC input voltage
- Delivers up to 60 watts of power per PD port
- Dual, USB-C PD connectors
- Compatible with USB-C PD and traditional USB-C devices
- Charge two devices simultaneously at maximum power
- Short circuit, power surges, overload and over temperature protection
- In-seat, cabin, cockpit and galley applications
- Designed and built in Wichita, Kansas, USA
- Limited lifetime warranty
Specifications
Input Voltage
22 – 32 VDC
Input Power
66 W per port (maximum)
Output Voltage
USB-C PD; 5 – 20 VDC per port (variable)
Output Power
USB-C PD; 60 W per port (maximum)
Output Current
3.0 amps per port
USB Connector
Dual USB-C PD configuration
Weight
2.5 ounces (71 grams)
Dimensions
1.5” W x 1.03” H x 2.0” D
Mating Connector Kit
MCI P/N 9017960 (included)
Mounting
Front or rear; faceplates and adapter plates (optional)
Installation
In-seat, cabin, cockpit and galley
Faceplates
9017958
9019384-4
Adapter Plates
9017947
Dust Covers
9019313-1
9019313-2
Case
Anodized aluminum, black
Certification
FAA TSO C71
EASA ETSO C71
RTCA DO-160G
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | Mid-Continent Instruments and Avionics |
| Color | Black, Blue |
