The AV-30C is a highly capable, fully digital, multi-mode instrument that mounts in the legacy 3⅛ inch round instrument panel cutout. It can be field configured as either an Attitude Indicator (AI) or a Direction Indicator (DG), contains an internal battery, and allows for a wide variety of pilot customization.

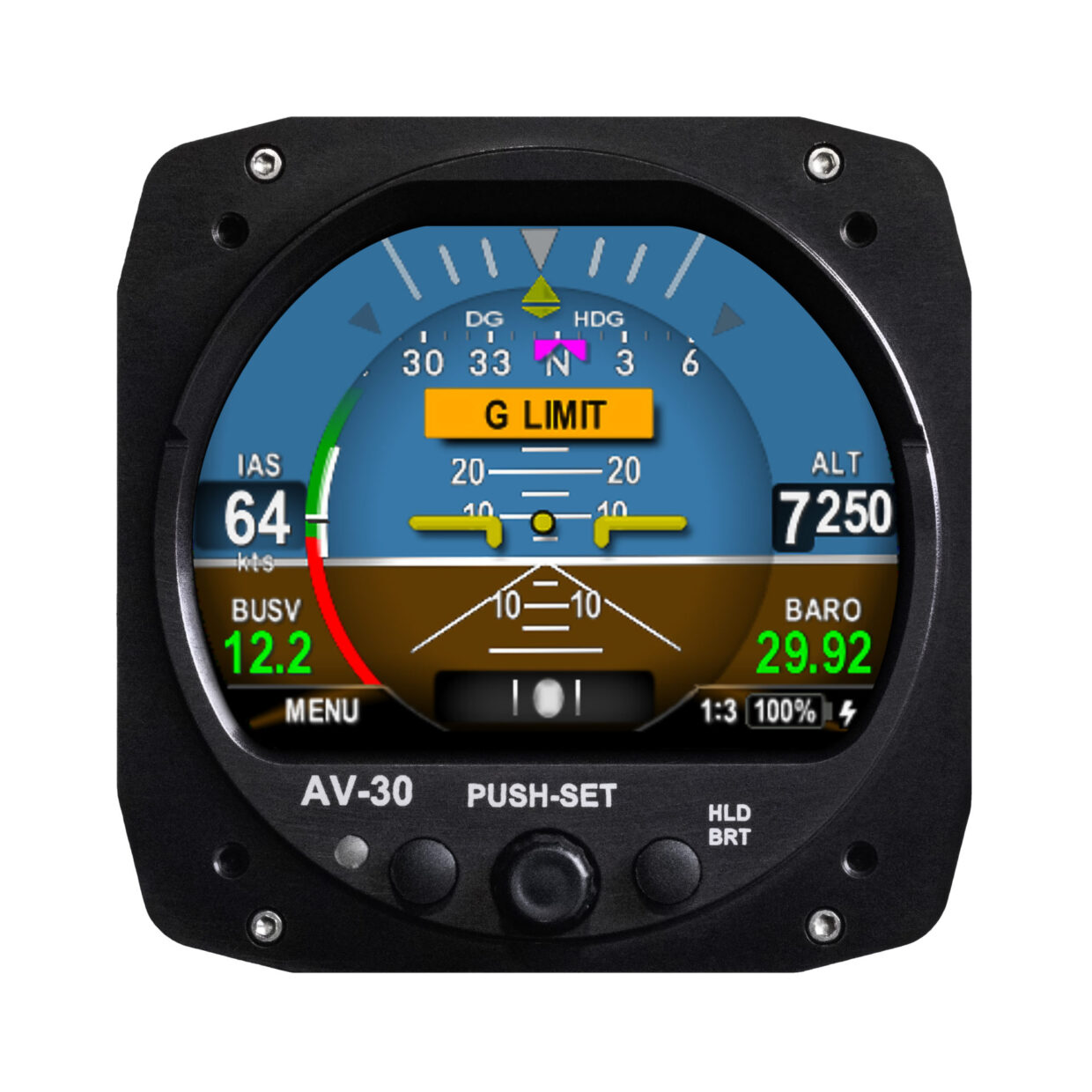

When configured as an AI, primary attitude and slip are always displayed. The unused portions of the display area can be customized by the pilot to show a variety of textual and graphical data-overlay fields. Up to 3 pages may be customized by the pilot with a fourth dedicated fully decluttered page.

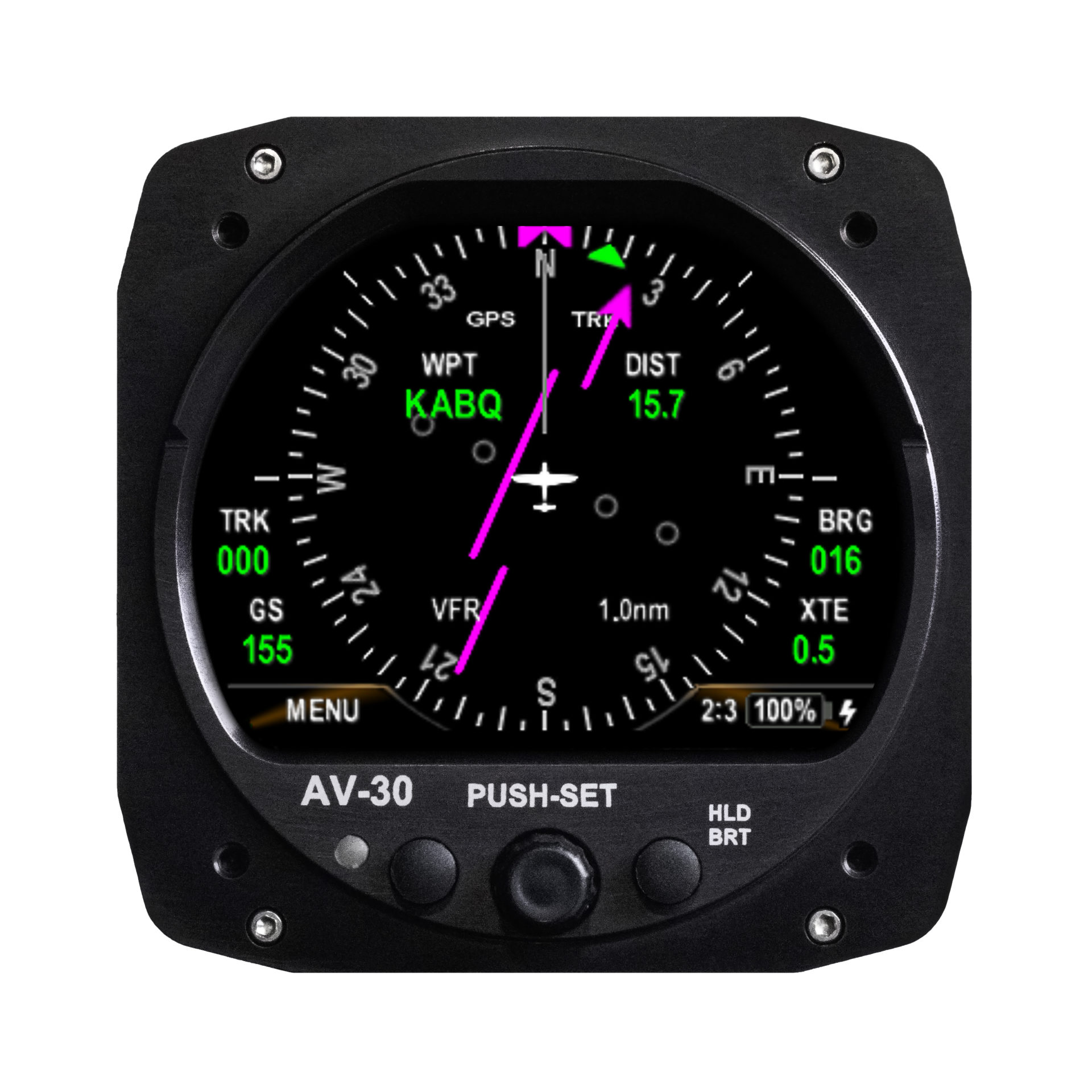

When configured as a DG, non-slaved direction of flight or GPS track may be configured for display. Multiple display presentations can be selected by the pilot including a compass rose, GPS CDI, and GPS arc view. The unused portions of the display area can similarly be configured for a variety of textual data-overlays.
In both operating modes, the pilot may select from a variety of visual styles that are intended to improve visual compatibility with legacy aircraft instrumentation and preserve the look-and-feel of older aircraft applications. A wide variety of supplemental functions, including audio envelope alerting, derived angle of attack presentation, g-load display, and more are provided. An internal battery allows operation for up to 2 hours in the event of aircraft power loss.
- AV-30C Unit
- Form 8130
- Installation Bag with Parts
- 1 Sticker
- Certificate of Conformance
