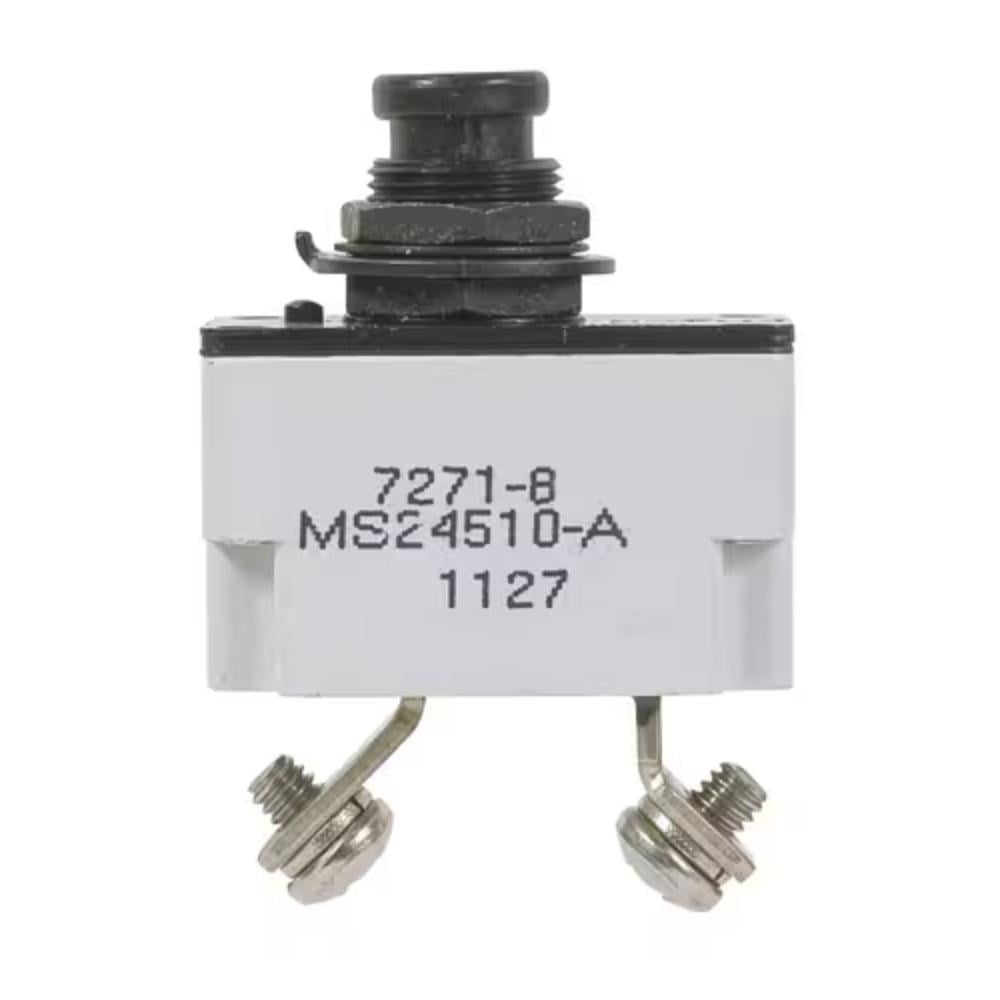

7271-8 Series Circuit Breaker | 35 Amp Rating, Push Button

The Klixon® 7271 series circuit breakers are designed to utilize less space behind the panel while protecting wire and cable in aircraft and ground support equipment on 120 VAC, 400 Hz or 30 VDC systems. Inherently resistant to shock and vibration, the disc element is capable of calibration within close tolerances throughout the service life of the breaker. The 7271 series circuit breaker feature a single pole, push button actuator that pops out for trip indication.

Includes hardware.

Features

• This 7271-8 series circuit breaker (EDMO# 7271-8-35) is rated for 35 amps.
• Trip-free operation
• Snap-acting thermal element
• Small size
• Light weight
• MIL-C-5809 qualified
• Current ratings (3 to 35 amps)
• High interrupting capacity

Specifications

• Weight: 39 grams maximum
• Current Rating: 35 amps
• Vibrations: 10G minimum, 50–500 Hz
• Mechanical shock: 30G
• Acceleration: 10G
• Endurance: 5,000 cycles: 120 VAC. 400 Hz, inductive 5,000 cycles: 120 VAC 400 Hz, resistive 5,000 cycles: 30 VDC, inductive 2,500 cycles: 30 VDC, resistive 5,000 cycles: Mechanical, no load
• Mounting : Screw terminals and neck mounting
