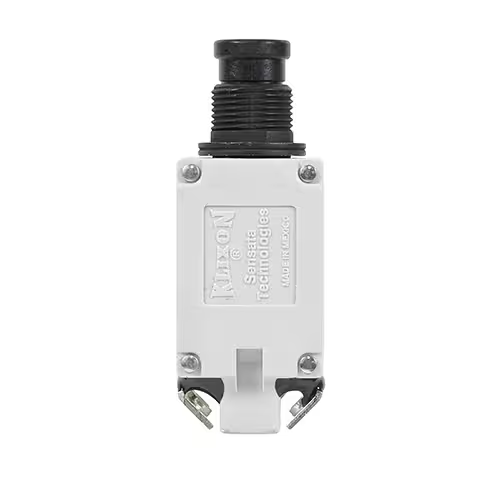

7274-2 Series Circuit Breaker | 10 Amp Rating
$38.49
Klixon® 7274-2 series circuit breakers are small, lightweight, and low amperage devices specifically designed to protect aircraft and aerospace cables, and components. The 7274 features a trip–free, indicating reset button and is available in standard ratings from ½ to 20 amps.
Includes hardware.
Features
- This 7274-2 series circuit breaker is rated for 10 amps.
- Single-Phase, Non-Compensated
- Uses minimum space
- Light weight
- Trip-free design
- MIL-C-5809 qualified
- Low amp rating
- High vibration resistance
- Designed to protect military airborne vehicles and equipment
Specifications
-
Weight: 28g, maximum
-
Specification Current Rating: 10 amps
-
Vibrations: 10G, minimum, 50 to 500 Hz
-
Mechanical Shock: 35G
-
Acceleration: 10G
-
Interrupt Current:0.50A – 5A: unlimited @ 28 VDC 7.50A – 15A: 2,000A @ 28 VDC 0.50A – 1.50A: unlimited @ 120 VAC, 400 Hz 2A – 5A: 800A @ 120 VAC, 400 Hz 7.50A – 20A: 500A @ 120 VAC, 400 Hz
-
Endurance: 2,500 cycles: 120 VAC, 400 Hz inductive 5,000 cycles: 120 VAC, 400 Hz resistive 2,500 cycles: 30 VDC inductive 5,000 cycles: 30 VDC resistive 10,000 cycles: Mechanical, no load
-
Voltage Drop (at nominal rated current): 0.28V @ 10A
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Klixon |
