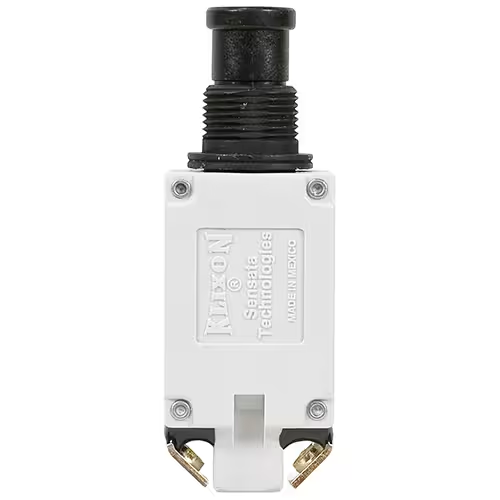

7277-5 Series Circuit Breaker | 1 Amp Rating
$73.31
Features
- This 7277 series circuit breaker is rated for 1 amp.
- Miniature size
- Light weight
- Trip free design
- Current ratings (0.5 to 20 amps)
- High vibration resistance
- Typical use: computers, construction, data processing and telecommunications equipment, flight simulators, general aviation aircraft, materials handling, industrial electronic equipment, trainers and simulators, where all breakers are operated on low ampere control current
Specifications
-
Weight: 28 grams, maximum
-
Specification Current Rating: 1 Amp
-
Vibration: 10G minimum, 50Hz – 500Hz (other vibration levels available)
-
Mechanical Shock: 35G
-
Acceleration: 10G
-
Interrupt Current: 0.50–5 amps: unlimited at 28 VDC 7.50–15 amps: 2,000 amps at 28 VDC 0.50–1.50 amps: unlimited at 120 VAC, 400 Hz 2–5 amps: 800 amps at 120 VAC, 400 Hz 7.50–20 amps: 500 amps at 120 VAC, 400 Hz
-
Endurance: 2,500 cycles: 120 VAC, 400 Hz inductive 5,000 cycles: 120 VAC, 400 Hz resistive 2,500 cycles: 30 VDC inductive 5,000 cycles: 30 VDC resistive 10,000 cycles: Mechanical, no load
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Klixon |
