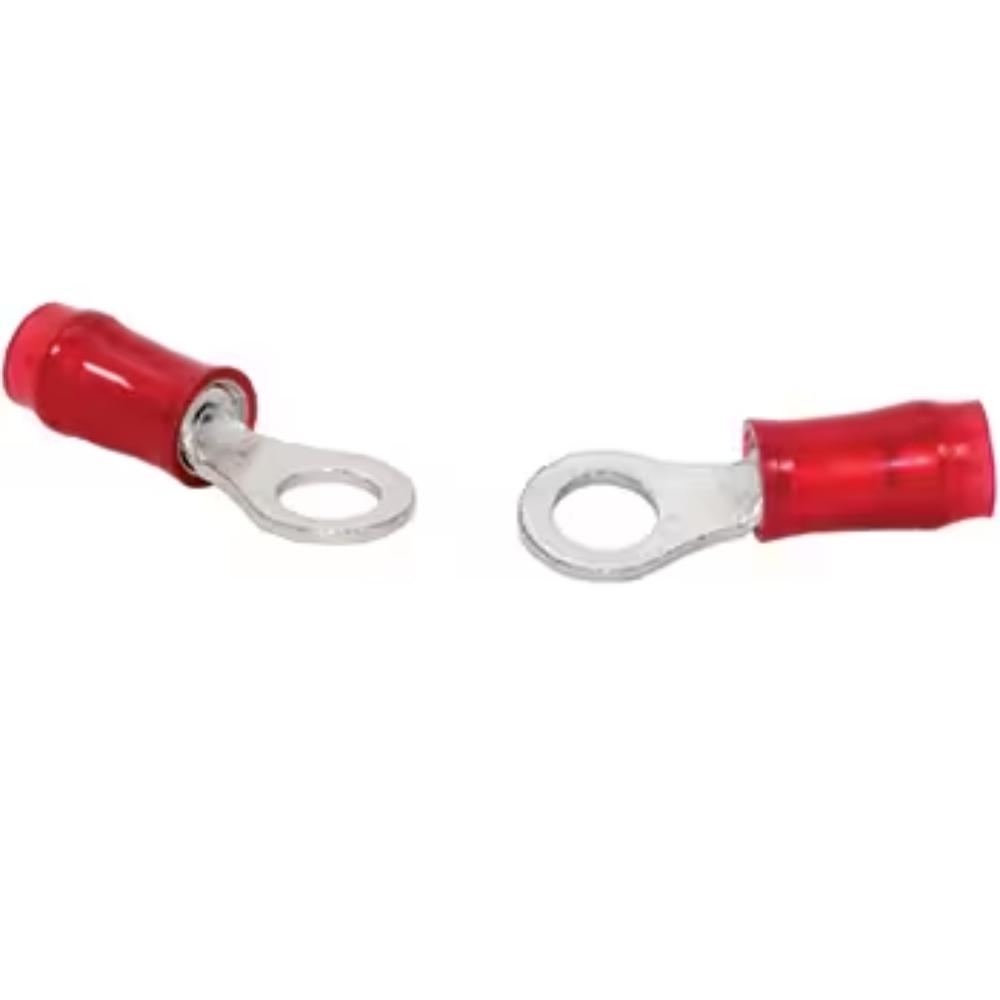

#8 PIDG Ring Terminal | 22–16 AWG Wire Size
$0.27
PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.
This PIDG Ring Terminal:
- Fits a #8 stud size
- Fits 22 – 16 AWG wire sizes
- Red nylon insulation material
- Tin-plated, copper conductor
Features
- Vibration resistant design
- Allows wires to bend freely in any direction
- PIDG terminal meet or exceed SAE AS7928 Type II, Class 1 & 2 requirements
Specifications
Weight:
0.938 g (per piece)
Stud Size:
#8
AWG Size:
22 AWG – 16 AWG
Color:
Red
Barrel Type:
Closed
Insulated:
Yes
Wire/Cable Type:
Regular wire
Termination Angle:
Straight
Current Capacity:
300V, max
Plating Material:
Tin-plated copper
Operating Temperature:
105°C (221°F)
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
TE Connectivity |
