8603 Rod Antenna, Tri-band
$1,037.93

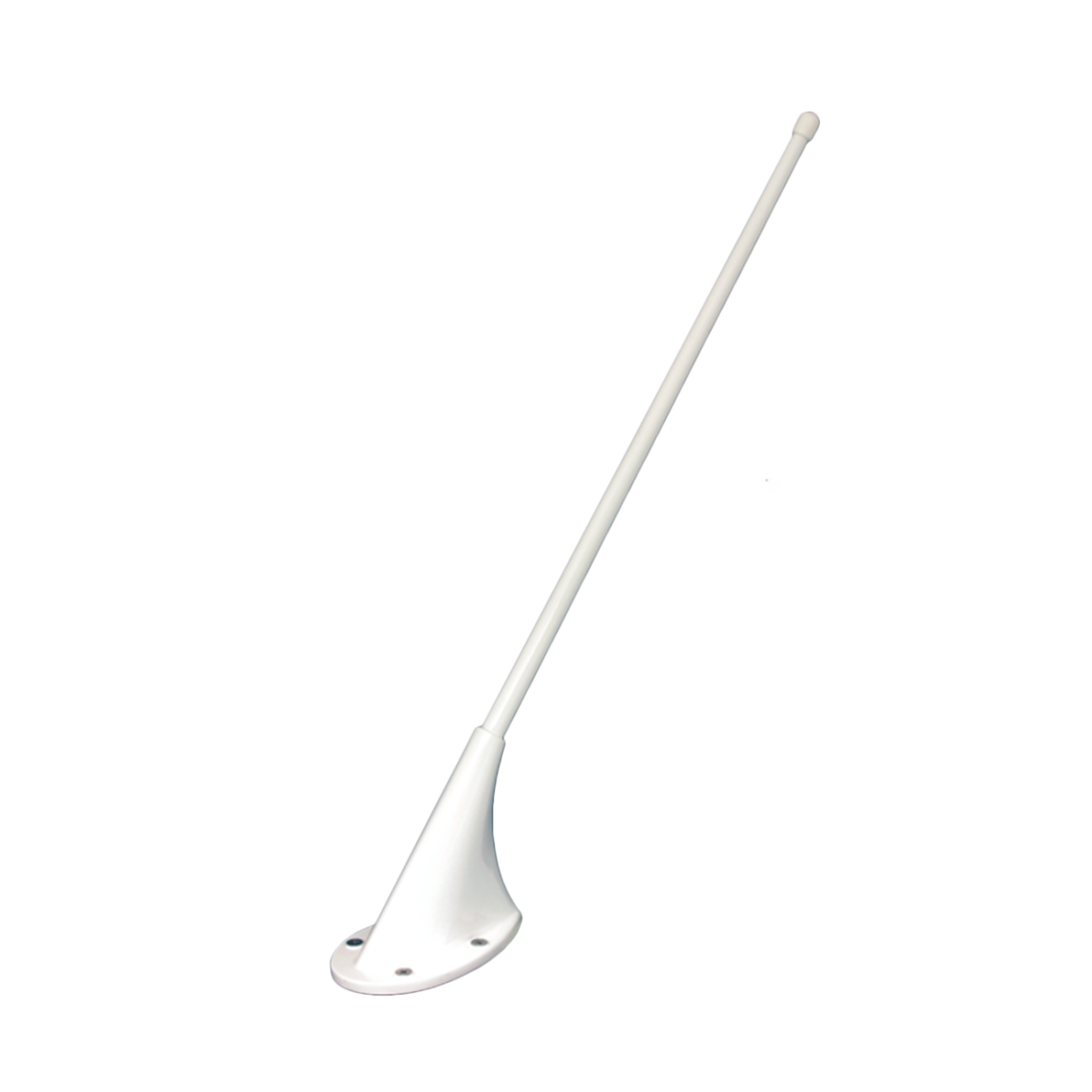

The ARTEX 8603 Rod Antenna is reinforced with glass and a polyester housing that covers our innovative Tri-Band technology, effectively bringing 121.5, 243, and 406 MHz frequencies in one compact package. This highly efficient antenna provides a single BNC connector for those installations that require a single connector set-up.
The ARTEX 8603 Rod Antenna is reinforced with glass and a polyester housing that covers our innovative Tri-Band technology, effectively bringing 121.5, 243, and 406 MHz frequencies in one compact package. This highly efficient antenna provides a single BNC connector for those installations that require a single connector set-up.
Artex new rod antenna is reinforced with glass and the polyester housing covers our innovative Tri-Band technology, bringing 121.5, 243, and 406 MHz into a compact package. This highly efficient antenna provides a single BNC connector for those installations that require a single connector set-up. Designed to TSO C91a and C128b.
Specifications
| Frequency | 121.5, 243 & 406 MHz |
| VSWR | 2.0:1 – 121.5/243 MHz, 1.5:1 – 406 MHz |
| Polarization | Vertical |
| Radiation Pattern | Omni-directional |
| Impedence RF | 50 OHMS (nominal) |
| Weight | 0.45 lbs. |
| Height | 15.50” |
| Material | Molded radome/fiberglass whip |
| Finish | White Glass, Non-Yellowing Paint |
| Connector | BNC (female) for 121.5, 243 & 406 MHz |
| Temperature | -55˚ C to + 85˚ C |
| Altitude | 50,000’ |
| Color | 8603 (white) |
| Gasket | Cork Gasket Optional |
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
ACR Artex |
