Airframe Interface Kit – 12V (BM-AIK2B)
$135.00
Key Features:
|
|
Key Features:
|
|
BatteryMINDer® Airframe Interface
The BM-AIK2B is a parts kit to adapt 12 volt aviation-specific BatteryMINDers for use with FAA-certified aircraft. The yellow connector conforms to industry standard color codes (yellow=12/14V, red=24/28v etc.). It may be installed by any certified mechanic. It does not require a Form 337 or FSDO field approval; all that is required is an entry in the maintenance logbook for return to service.
Components for Airframe Installation:
|
|
Also Included (not for installation on aircraft):

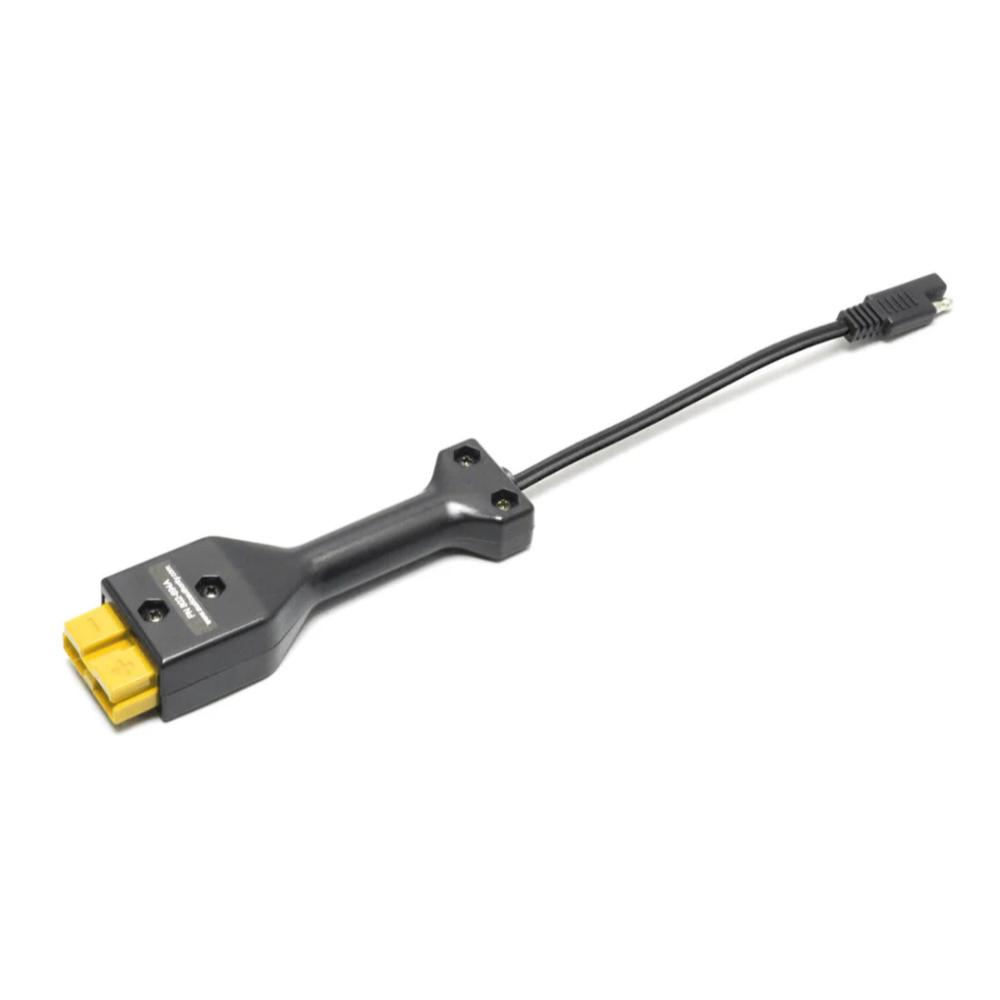

An SAE to SB50 harness with handle and strain releif is also included for adapting a BatteryMINDer’s “trailer plug” output to a mating SB50 plug.
IMPORTANT: This harness is designed only for maintenance battery charging, not for supplying ground power for airframe operations. Disconnect the charger before turning on airframe electrical power. Reconnect the charger after turning airframe electrical power off to recharge and then maintain/desulfate the battery.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | BatteryMINDer |
You must be logged in to post a review.
SHIPPING INFORMATION
We can ship by UPS, or USPS and DHL Express. We ship nationally, and internationally.
Carriers In Use
SHIPPING COSTS
- International Shipping Quote has to be done manually due to dimensions, weight, end destination, and more. Please E-Mail us.
- Any manner or method is available, call if you need Priority 1-2 day or overnight shipping.
- We are shipping with UPS or USPS and DHL Express
Related products
ETX900-TSO
STC or Part 337 (field approval) is required for installation. If you need the 8130-3 form for international orders, it is an additional fee of $150 per battery and must be requested prior to shipping.
FAA REQUIRED STATEMENT:
“The conditions and test required for TSO approval of this article are minimum performance standards. Those installing this article either on or within a specific type or class of aircraft must determine that the article installation conditions are within the TSO standards. The article may be installed only according to 14 CFR part 43 or the applicable airworthiness requirements.”
SPECIFICATIONS
SKU: ETX900-TSO
Voltage: 13.2
Weight: 5.4lbs (2.4kg)
Cold Cranking Amps (CCA): 390
Peak Cranking Amps (PCA): 800
Amp Hour (1C Rate): 15.6
Chemistry: Lithium Iron Phosphate (LiFePO4)
Case Size: E
Dimensions: 6.5" L x 3.1" W x 6.6" H
(166mm L x 79mm W x 168mm H)
