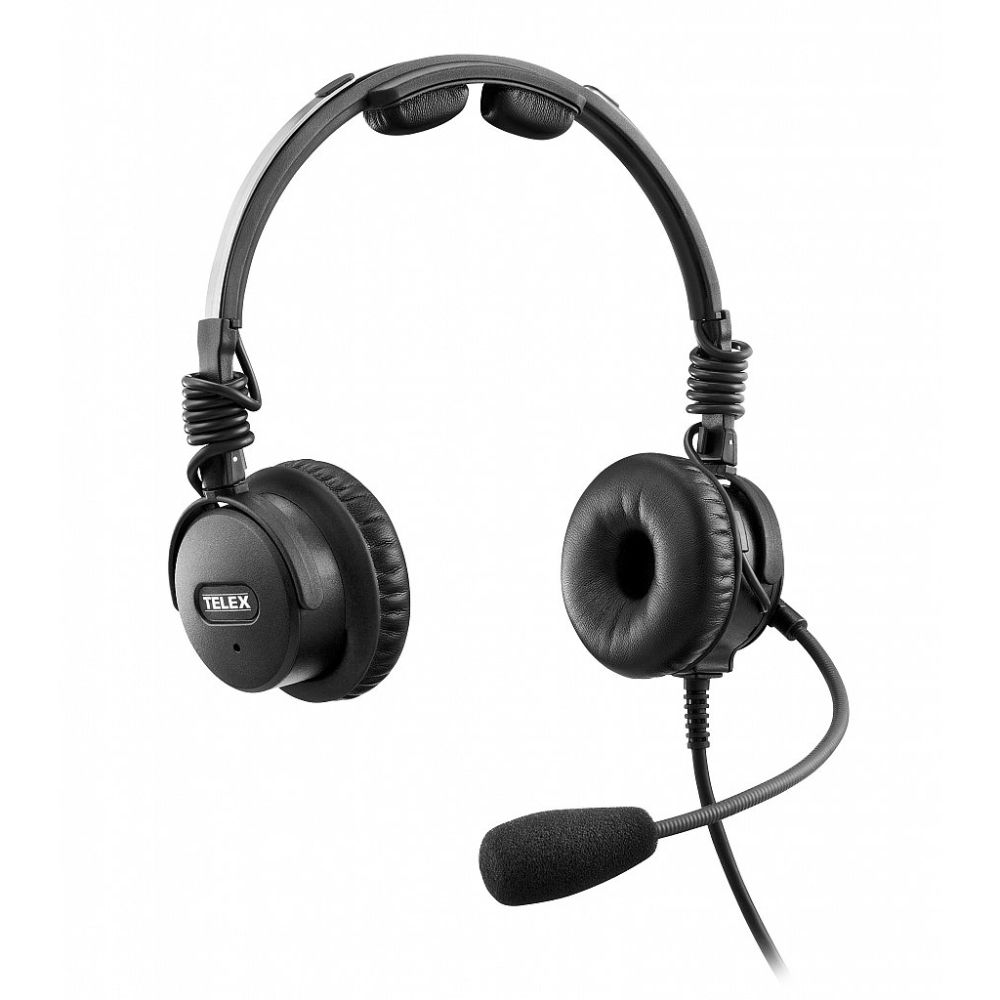

Airman 8 ANR Headset | Double-sided, Dual PJ connector, 600Ω

The Telex Airman 8 aviation headset with battery-free active noise reduction (ANR) is designed specifically for optimizing pilot communications in commercial and business turbine aircraft.

Building on the tradition of the Airman 850, the Airman 8 has improved durability, intelligibility, and comfort making it the lightest Active Noise Reduction headset on the market and the only FAA TSO-C139a approved ANR headset to utilize Telex’s proprietary battery-free system. The ANR switch has been placed on the forward-facing ear cup side allowing an easier reach without having to remove the headset. A high-quality, amplified, electret microphone provides clear voice transmission while improved ANR and noise cancellation ensures superior in-flight communication.

Extending its useful life, the headset is constructed with a stainless steel headband with metal pivots and a pre-coiled, overhead coiled cord. The microphone boom design provides stronger rotational stops utilizing the full diameter of the ear cup. The soft headband pad combined with a lightweight design improves comfort—even on long flights; further enhancing comfort, the yoke allows the ear cups to move in all directions. An acoustic limiter protects users against sudden increases in sound levels.

This Airman 8 ANR headset is double-sided, with a dual PJ-068 and PJ-055 connector, and has a 600Ω impedance.

FEATURES

• Active noise reduction reduces fatigue and improves intelligibility
• Improved ANR and microphone noise cancellation ensures superior in-flight communication  Innovative technology eliminates the need for batteries or special connections
• Soft headband pad combined with a lightweight design improves comfort—even on long flights
• Strong stainless steel headband with metal pivots increases durability
• The yoke design provides three axis adjustments and durability improvements
• Included replaceable ear cup covers and comfortable leatherette ear cushion
• Acoustic limiter protects against sudden increases in volume
• Clear voice transmission with a high-quality, amplified, electret microphone
• Fully FAA TSO-C139a approved
• Fully compliant to ARINC standards

SPECIFICATIONS

Weight:
6.6 oz (187 g), with cord
4.2 oz (193 g), without cord

Impedance:
600Ω ±20% @ 1kHz

Connector:
Headphone PJ-055
Microphone: PJ-068

Cord Length:
6 ft ±4 in (1.8 m ±10 cm)

Color:
black and stainless steel

Ear Seals:
leatherette

Frequency Response:
350 to 3,500 Hz

Microphone Frequency Response:
100 to 10,000 Hz

Microphone Sensitivity:
-28 dBV/Pa

Microphone Type:
noise-canceling, amplified electret

Power:
via boom microphone connection

Power Requirements:
requires boom microphone to be powered continuously or power from aircraft via XLR

Speaker Sensitivity:
92 to 98 ±5 dB SPL/mW

Type:
dynamic

FAA Approvals:
TSO-C139a approved
