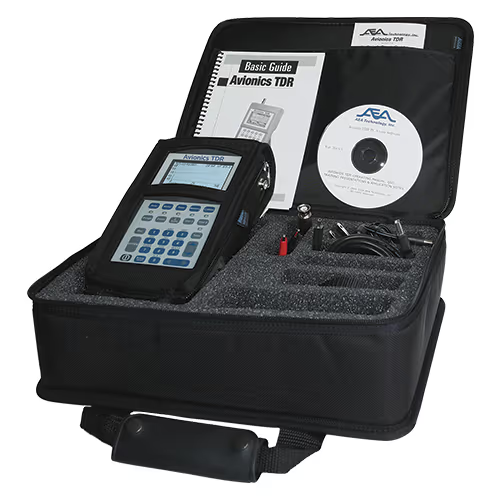

Avionics TDR Complete Kit with CATV Cable Option

Weight:
2.2 lbs (1 kg)

Size:
8.5 x 4.3 x 2.25 in (216 x 109 x 57 mm)

Max Ranges:
20Kft (5Km) @ 0.99c or 14Kft (3300m) @ 0.66c

Min Range:
0–10 ft (0–2 m)

Range Scales:
11 selectable ranges

Range Accuracy:
< 0.2% ± 1 in (2.5 cm) + VF uncertainty

Z Accuracy:
< 2% (Cable Z = 45 to 125 Ω)

Resolution:
0.5 in on 10 ft range scale or 10 ft Zoom (8 mm on 2 m range scale or 2 m Zoom)

Dead Zone:
Zero on any range setting

Z Ranges:
20, 50, 100, 200, 500, & 1,000 Ω

Cursors:
2 independent and differential readings

Memory:
32 traces with 1920 data points (feet), 2000 data points (meters), name, date, and time.

Adv Features:
Test Lead Null, Micro Fault Locating, Setup Wizard – step-by-step setup instructions, Context Sensitive Help

Cable List:
64 Cable types with their Z and VF, PC upload or download custom cable lists

Tones:
900/1100Hz warble, 977.5, 850, 577Hz steady or pulsed & Pocket Toner enable

Display:
Quarter VGA transflective & backlit

Comms:
USB-2/serial

Internal Power:
8 AA NiMH cells (installed) ~7.3 hours continuous operation on single charge (reduced by backlight)

Alternate Cells:
8 AA alkaline, ~ 7 hours continuous operation (reduced by backlight)

External Power:
90-240VAC 50/60Hz adapter to 15VDC

Environmental:
Splash and dust resistant

Ruggedness:
MIL-STD 810G Transient Drop tested, 48 inches (122cm) to hard surface, 26 drops
