Bravo Ex2 Analyzer | Dual Port
$688.85

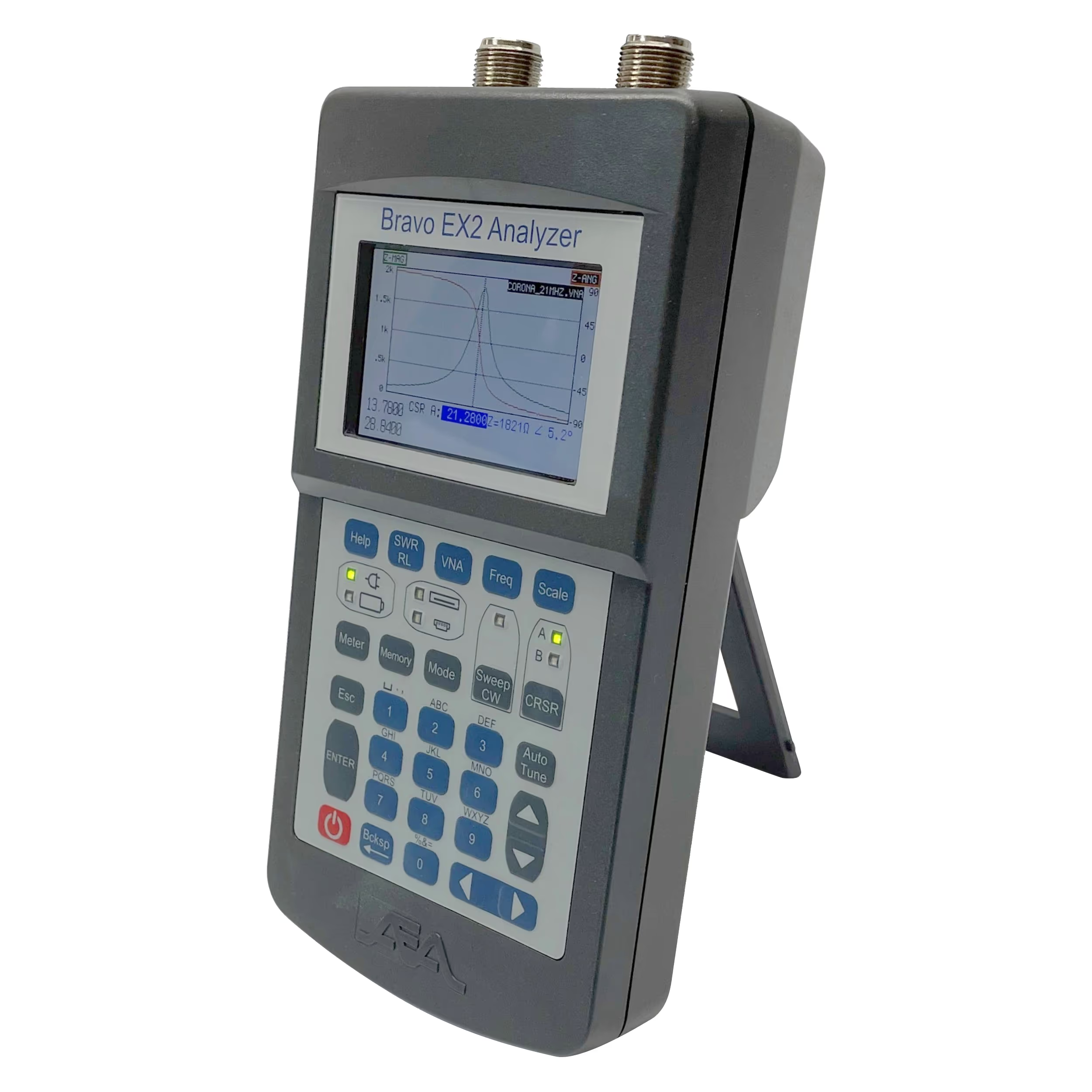

The Bravo Ex2 Analyzer is a network analyzer with a frequency range of 100 KHz to 525 MHz that accurately measures impedances from 0 to 2000 ohms, resistance, impedance angle, X, return loss, and SWR. The Bravo Ex2 can simultaneously provide graphical display for any two measurement parameters. The frequency sweep is plotted on the X-axis, and independent left and right Y-axis scales are user selectable. The Bravo’s portability makes it the ideal test instrument for field or lab use. Additionally, our Bravo products come with Site Analyzer PC Vision™ software. This application permits remote control operation of the Bravo Ex2 to upload test results to a PC or laptop, view the VNA or Smith Charts in full color, and store and print complete analyzer data. While the Bravo’s LCD can support displaying two parameters, PC Vision can display one or all the testing parameters at once. The Bravo Ex2 is fully rechargeable and includes “AA” NiMH batteries. This instrument will save time, reduce capital expenditures, and reduce costs typically associated with testing and tuning resonant devices and filters.
This Bravo Ex2 Analyzer is a dual-port unit that includes the Bravo Ex2 Analyzer, N to BNC adapter, BNC terminators (short & 50 ohm), padded case, 6 ft USB cable, AC adapter, quick start guide, and CD with operating manual, training PPT, and Site Analyzer PC Vision™ application.
Features
- Quarter VGA back-lit color display (user selectable color scheme) Colors can be customized for best viewing
- One-button Auto-tune locates the coil’s best SWR or Return loss
- Large numeric Format readout in CW mode
- Quickly shift between SWR, Return Loss and VNA functions
- Has “Cable Null” option to eliminate test lead or feed line
- Internal Memory can hold 100’s of plots and setups
- Site Analyzer PC Vision™ application and USB-2 Cable included
- Save, recall and upload test results to a PC
- Economical Multi Function
- Very fast response time in graphical display mode
- Compact design makes it easy to carry on site
- Improves reliability
- Can be operated in remote control from a PC or laptop
- Document Unit under test performance and tuning
- Maintain servicing records for resonant devices and filters
Specifications
Weight:
2.2 lbs (1.0 kg)
Size:
8.5 x 4.3 x 2.25 in
Frequency Range:
100 KHz to 525 MHz
Tuning Resolution:
1 Hz (100 KHz – 150 MHz), 200 Hz > 150 MHz
Measurement Speed:
~ 5 ms/data point
Frequency Display Width:
0 to 51.6 MHz/100 data points/large numeric readouts
0 to 64 MHz/100 data points/large numeric readouts
Impedance Range:
0 to 2000 Ω
Impedance Scales:
0 to 10, 20, 50, 100, 200, 500, 1000, and 2000 Ω
Phase Angle Scales:
± 15 to ± 180 Degrees
Harmonic & Spurious:
Better than -15 dB below fundamental
Output Power:
~ -5 dBm @ 50 Ω
Power Requirements:
12–20 VDC @ 650 mA (min) or 8 AA Batteries
Antenna Connector:
N Connector
USB Interface:
2.0
Certifications:
CE EMC: EN/IEC 61326-1:2013/2020
Safety: EN/IEC 61010-1:2010 +A1:2016 + C1:2019
| Brand | AEA Technology |
|---|
