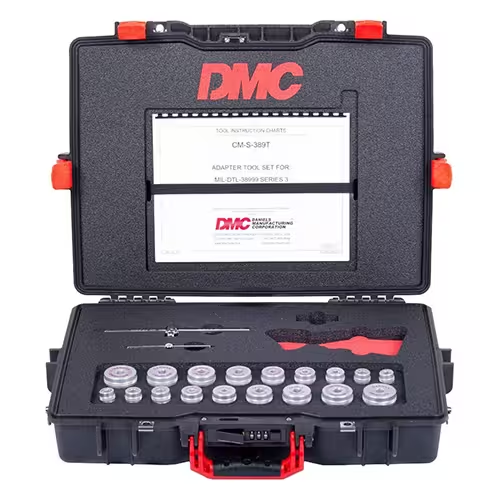

CM-S-389T MIL-DTL-38999 Series III Adapter Tool Set | Plugs, Shell Sizes 9–25

The central element of the DMC Beta connector accessory tool product line is the adapter tool. This unique device is configured in such a manner as to mate perfectly with the corresponding circular connector keying pattern.

This Adapter Tool Set is for MIL-DTL-38999 Series 3 plugs. There are 18 adapter tools in this set and it covers shell sizes 9–25.

Features

• For MIL-DTL-38999 Series 3 plugs
• Includes 18 adapter tools, shell sizes 9–25
• Weight: 7 lbs
• Connector Type: Plugs
• Adapter Shell Sizes: 9–25
• Adapter Dimensions: 9: 1.500 x 0.573 x 0.812 11: 1.500 x 0.689 x 0.875 13: 1.500 x 0.823 x 1.000 15: 1.500 x 0.948 x 1.125 17: 1.500 x 1.082 x 1.250 19: 1.500 x 1.184 x 1.375 21: 1.500 x 1.309 x 1.500 23: 1.500 x 1.434 x 1.625 25: 1.500 x 1.559 x 1.750
• Adapter Driver Dimensions: 0.25 in (9, 11, 13, 15, 17); 0.375 in (19, 21, 23, 25)
• Adapter Keying Positions: 9A: N, C, D 9B: A, B, E 11A: N, D, E 11B: A, B, C 13A: N, D, E 13B: A, B, C 15A: N, D, E 15B: A, B, C 17A: N, A, B 17B: C, D, E 19A: N, A, B 19B: C, D, E 21A: N, A, B 21B: C, D, E 23A: N, A, B 23B: C, D, E 25A: N, A, B 25B: C, D, E
