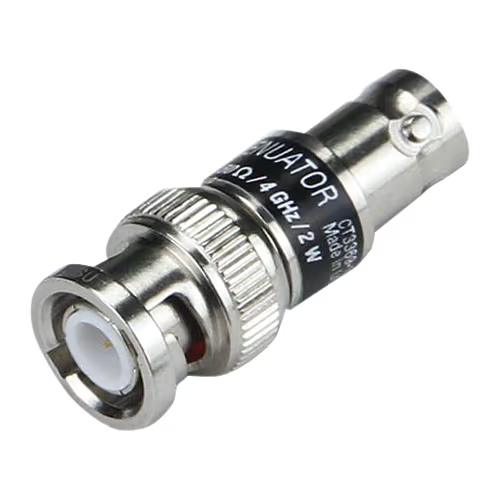

CT3369A Series Coaxial Attenuator | Male to Female, 20 dB, 50 Ω, DC to 4 GHz, 2 W
$70.67
This CT3369A Series Coaxial Attenuator is an instrument-grade BNC male-to-female 50 Ω fixed coaxial attenuator useful in a wide variety of applications, including impedance matching and level control.
Features
- High quality, rugged construction
- Excellent VSWR
- 2 W power level
- Usable to 4 GHz
- Nickel-plated brass body
- Gold-plated beryllium copper contact
Specifications
Attenuation:
20 dB ± 0.5 dB (10x)
Impedance:
50 Ω
Frequency Range:
DC to 4 GHz
VSWR:
1.25:1 (max)
Average Power:
2 W
Peak Power:
250 W
Power Ratio:
1/100
Temperature Range:
-65ºC to 125ºC
Body Material:
Nickel Plated Brass
Contact Material:
Gold Plated Beryllium Copper
RoHS (2011/65/EU):
Compliant
| Brand | Cal Test Electronics |
|---|
