David Clark Aviation Headset | Battery Module, ENC, Straight Cord, Dual Plug, Flex/Wire Boom, M-7/A
$880.25

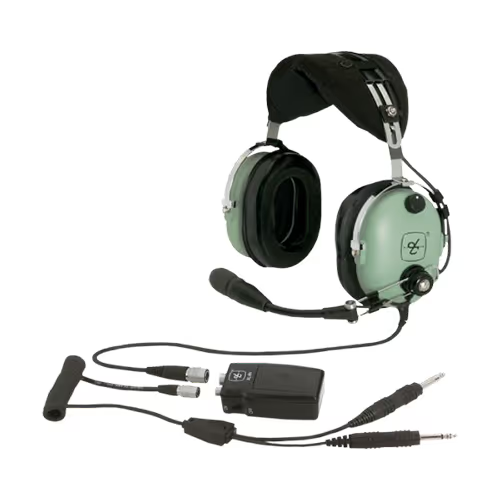

The H10-13XL utilizes a portable battery power module providing up to 60 hours of use. Modular in design, it consists of a headset with attached 5-foot straight cable and quick release connector, portable battery power module and a detachable coil cord with dual plugs (2P1643 stereo & PJ068) for connecting the portable battery power module to the aircraft radio of intercom.
Features
Version Includes:
- Â Â Flex boom
- Â Â M-7/A electret mic
- Â Â Dual ear
- Â Â Over-the-head
- Â Â Coil cord
- Â Â Dual plug
Features:
- Headset can be unplugged from Portable Battery
- Module for use with Permanent Panel Mount Module
- Expanded, super-soft, double foam head pad
- Larger, yet lighter, undercut Comfort Gel ear seals
- Battery Power Module – One 9 volt battery for up to 25 hours of operation
- Exclusive patented flex/wire boom for easy, precise microphone placement
- Pilot selectable automatic Shut-Off feature
- M-7A noise-cancelling electret microphone provides clear, crisp transmission
- Dual volume controls let you adjust the listening level for each ear
- NRR – 23dB passive noise reduction. Additional 17-22dB low-frequency noise attenuation when ENC is activated
- Five-foot (extended) coil cord terminating with a 10 pin quick release connector
- Coiled cord assembly connects Battery Power
- Module to panel intercom/radio
Specifications
Weight:
18oz (without cable)
Ear coupling:
Around-the-ear
Dome type:
ABS
Hardware:
Steel
Earphone plug:
PJ-055
Microphone plug:
PJ-068
Earphone type:
Dynamic ENC
Ear Impedance:
150Ω (300 each; wired in parallel)
Ear frequency response:
200-5,500 Hz
Microphone principle:
M-7/A noice-cancelling electret
Mic DC supply voltage:
8-16V, not polarity sensitive
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | David Clark Company |
