DC POWER CONVERTER/DC to regulated and controllable DC power converter, 75-120 Watt. 10K 182W rheostat, 28 Vdc input to 0-5 Vdc output.

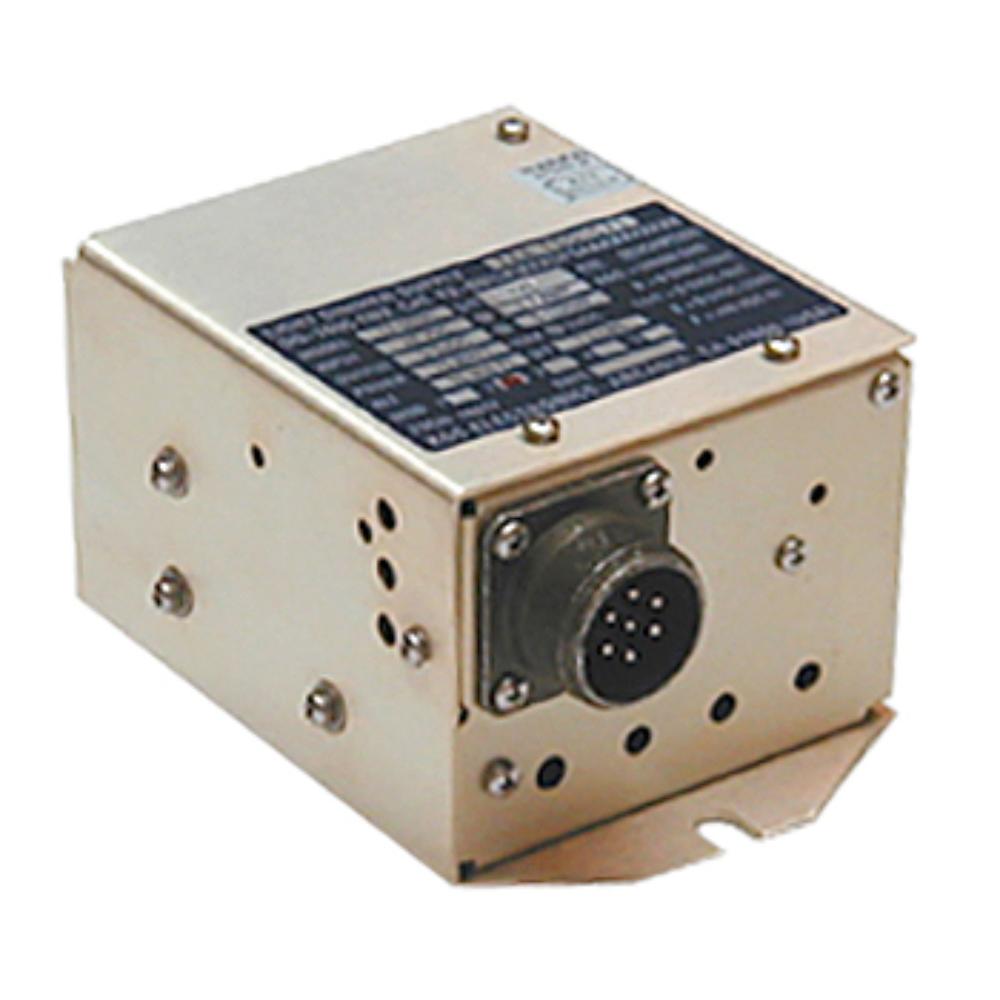

The LT-55C is a pulse width-modulated DC to DC converter that provides regulated high power DC.
12
Items sold in last 13 days
3
People watching this product now!
Description
The LT-55C is a pulse width-modulated DC to DC converter that provides regulated high power DC.
This converter transforms an unregulated 28 VDC to a regulated fixed or adjustable DC output via a remote control potentiometer.
The LT-55C is primarily designed to control the light intensity of incandescent bulbs in aircraft instrument lighting when requiring 0-15 amperes at 5 VDC output.
Features
- State of the art design for regulation and positive logic for output overvoltage protection.
- Maximum output voltage is adjustable with an internal trim pot.
- Maximum current limit is adjustable with an internal trim pot.
- Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202 and MIL-T-5422F class 1A.
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
KGS Electronics |
