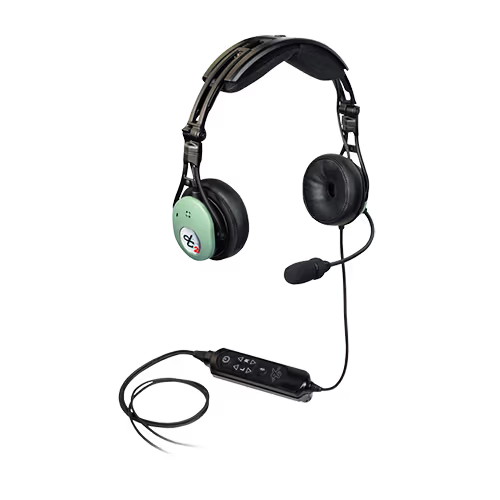

DC PRO-X2 Aviation Headset | Dual Ear, ENC, 5-Pin XLR, Aircraft PWR
Contact Cost Aero at 855-500-3044 for pricing
The DC PRO-X2 true crossover headset is ideal for both general aviation and commercial pilots that prefer the unmatched comfort of a lightweight, rest-on-ear design. The next generation DC PRO-X2 Series retains all the comfort and performance features of the original, pilot-acclaimed DC PRO-X headsets; now with enhanced ANR and audio performance. A fully adjustable suspension assembly is integrated into the headband for a personal fit. Swivel hinge stirrups disperse clamping pressure, allowing the headset to conform to the users head. Hybrid ENC technology provides active noise reduction (ANR) with feed-forward/feed-back technology, and an external microphone on the dome picks up outside noise for superior noise attenuation.
Version is a dual ear ENC headset with M-5B electret microphone, aircraft power, and a 5-pin XLR plug.
Features
- Enhanced Auto-Shutoff feature virtually eliminates accidental loss of battery power
- Automatic Gain Control (AGC) for optimum ANR performance in changing, high noise conditions
- Soft, Outlast® technology, heat absorbing head pad keeps cool and comfortable in flight
- Hybrid ENC technology for excellent active noise reduction
- Plush, rest-on-ear (supra aural), leatherette ear seals reduce heat buildup
- Rugged, yet lightweight alloy suspension, less than 8 ounces
- Compact control module with intuitive, multi-function control pad
- FAA TSO-C139a Approved
Specifications
Weight w/o cable:
7.5 oz. (215 g)
Ear Coupling:
On-the-ear
Hardware:
Lightweight Alloy
Connector Type:
5-Pin
Connection Cable:
0.130” (3.3 mm) O.D. shielded cable, length ~ 5 ft. (1.5 m)
Battery Life:
Up to 50 hours (2 AA batteries)
Operating Temperature:
-20°C to +55°C
Operating Voltage:
3VDC (2x AA)
Dome Type:
ABS
Characteristic SPL:
91 dB SPL (1 kHz, 1 mW) @ maximum volume nominal
Contact Pressure:
0.6 lb. (2.7 N)
ENC Peak Attenuation:
30dB @ 150Hz
ENC Attenuation Range:
20Hz―1KHz
Total Harmonic Distortion (THD):
< 1% – 110 dB SPL (300 – 3,000 Hz)
Ear Transducer Principle:
Dynamic
Ear Impedance:
600 Ω mono / 1200 Ω stereo (each ear)
Ear Freq Response:
12 – 15,000 Hz
Microphone Principle:
Pre-polarized condenser microphone (electret), noise cancelling
Mic Impedance:
150Ω nominal
Mic Sensitivity:
400mV+/-6dB into 150Ω load @ 1kHz for 114 dB SPL input
Mic Freq Response:
150 – 8,000 Hz
Mic DC Supply V:
8-16V, not polarity sensitive
Source Resistance:
470Ω
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | Faro |
