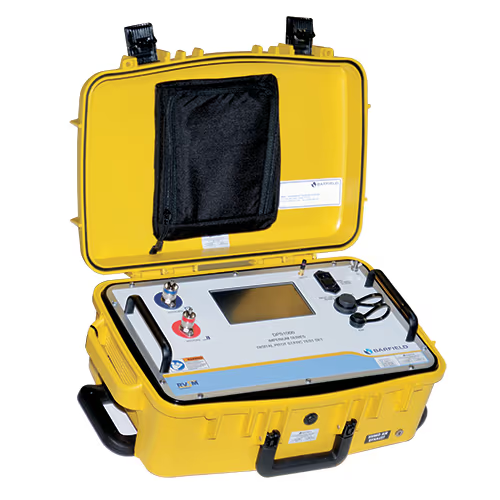

DPS-1000 RVSM Digital Pitot Static Test Set
$21,989.00
The DPS-1000 fully-automated and user-friendly RVSM compliant air data test set performs altimeter and static systems test and inspections. This state-of-the-art equipment incorporates wi-fi technology allowing remote operation and display from a tablet running iOS™ or Android™ using the app from the Apple Store or Google Play Store. The DPS-1000 offers technicians the flexibility to operate the unit either from the unit’s 7-inch LCD display, or remotely using a tablet computer. This device features a go-to-ground function, auto-leak test custom profiles, programmable limit protections, and an altitude correction feature. The DPS-1000 is easy to transport with a tough set of wheels and an extendable handle on the case.
Features
- High accuracy and RVSM compliant
- Fully automated control
- 7-inch color LCD touch screen that is readable in sunlight, glove friendly, and updatable user interface
- Go to ground function
- Auto leak test custom profiles
- Programable limit protections
- Altitude correction
- Altitude compensation for leak testing
- Durable wheels and extendable handle on case
Specifications
Weight:
33 lb (15 kg)
Dimensions:
14.8 x 22.2 x 9 in (37.6 x 56.4 x 22.9 cm)
AC Power Requirements:
85 VDC – 264 VAC, at 50 Hz – 60 Hz
Stability (calibration):
Drift per 12 months: 0.025% of range/year, maximum
Ps,Pneumatic Capacity (6,000 ft/min.):
125 cu. in. (2 liters)
Pt, Pneumatic Capacity (300 ft/min.):
75 cu. in. (1.3 liters)
Accuracy:
MACH: better than 0.005
EPR: better than o.005 ±2%
Ps Sensor: ±0.0030 InHg
Qc Sensor: ±0.10% reading
Temperature:
0°C to 50°C, calibrated
0°C to 50°C, operational
-25°C to 70°C, storage
Humidity:
0 — 95%, non-condensing
| Brand | Barfield |
|---|
