EBBS 8Ah Backup Battery

Introducing our brand-new 12V 8Ah backup battery model: EBBS. In aviation, backup power isn’t a luxury, it’s a lifeline. Our advanced lithium backup battery is engineered specifically for avionics and critical electronic systems, delivering uncompromising reliability when it matters most.  An upgraded replacement of the TCW IBBS-12V-6Ah or the TCW IBBS-12V-3Ah back up battery with the same pin outs, but with more amperage.

• Critical for flight safety: Provides power to essential systems like electronic ignitions, communication, navigation, other critical electronics and flight control when the main electrical systems fail.

• Redundancy: Offers a secondary power source that ensures continuous operation of avionics, reducing the risk of catastrophic failure.

• Cockpit displays (EFIS, EICAS), GPS, and transponders remain operational during emergencies.

• Enables pilots to:

  • Communicate with ATC

  • Navigate safely to an alternate airport

  • Conduct safe landings in case of total electrical loss

Output Current: 8 amps continuous, 12 amps peak

Temperature range: Operating: -30 C to 65 C

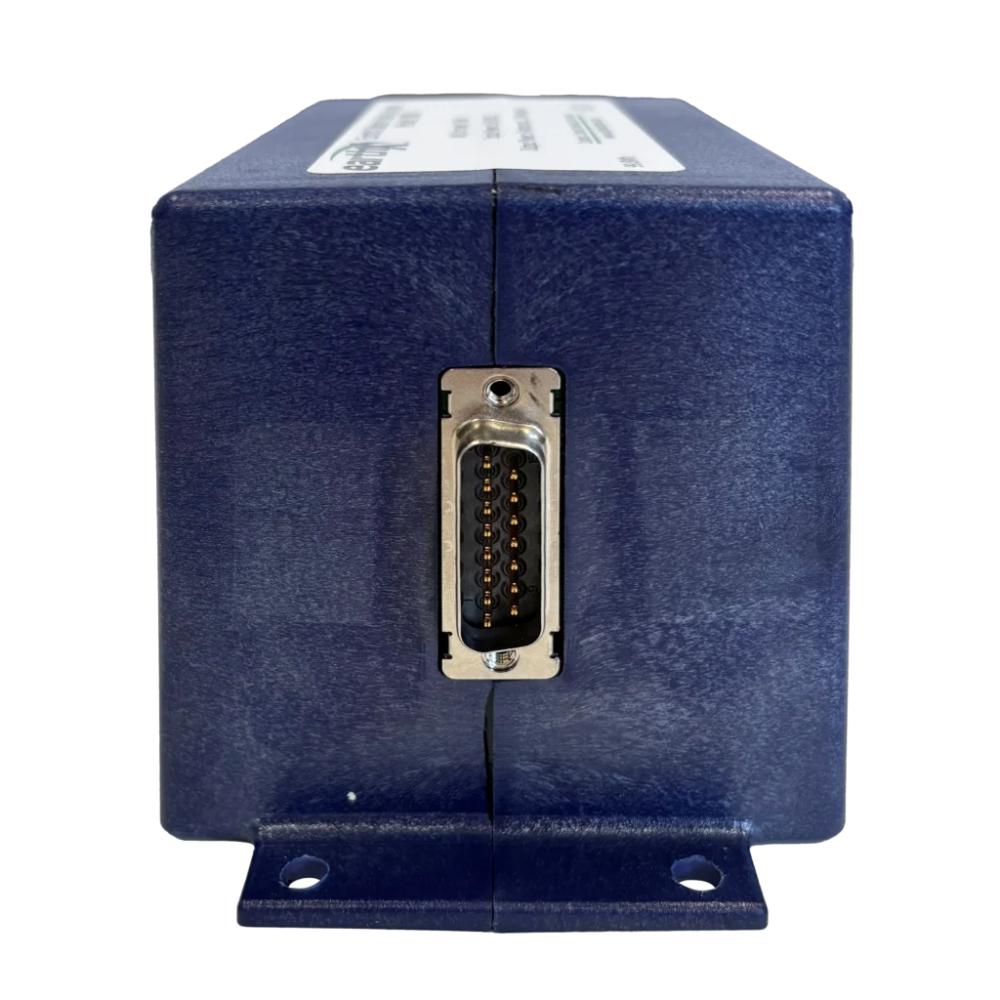

15 Pin Male Connector: 5 Power output pins

SPECIFICATIONS

SKU: EBBS
Voltage: Input Voltage: 10-15 volts DC
Weight: 2.4 lbs (1 Kg)
Cold Cranking Amps (CCA): N/A
Peak Cranking Amps (PCA): N/A
Amp Hour (1C Rate): 8 Ah
Chemistry: LiFePo4
Case Size: H
Dimensions: 5.94″ L x 2.97″ W x 3.3″ H
(151mm L x 76mm W x 84mm H)
