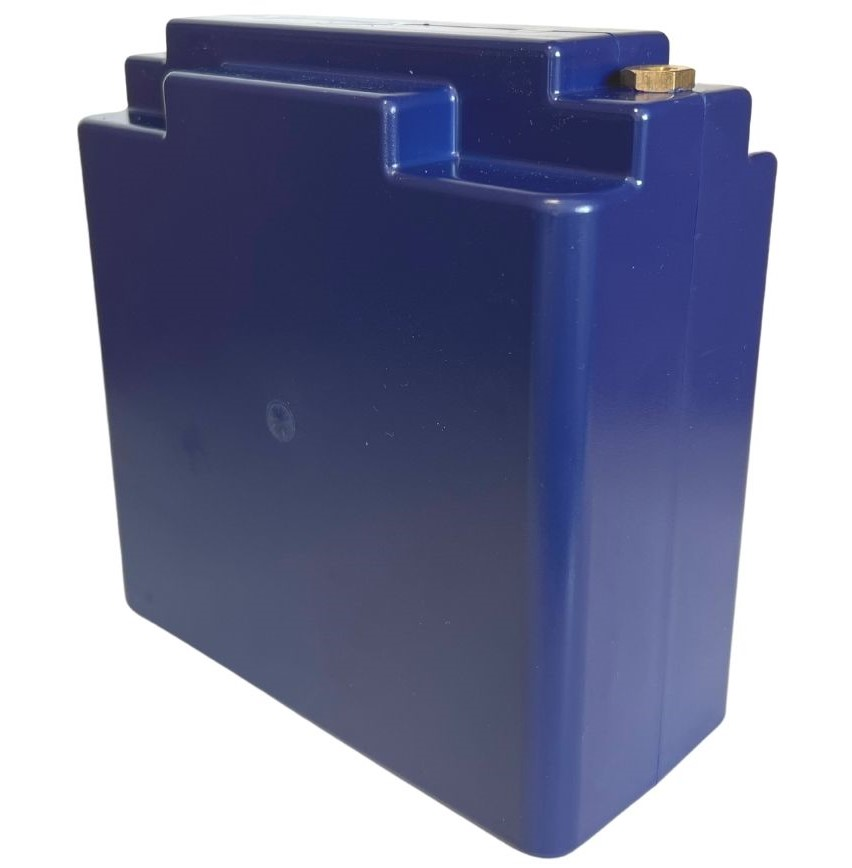

Empty E Case (For Fitment)
$18.00
Empty E case shell to see if your battery fits in your aircraft!
Need just an empty shell while you are planning and building? Here is the easy solution for you. The “E”case dimensions are 6.5″ L x 3.1″ W x 6.6” H (166 x 79 x 168mm). The battery models that come in the “E” case are: ETX680, ETX900, ETX900-VNT, ETX1200.
Empty E case shell to see if your battery fits in your aircraft!
Need just an empty shell while you are planning and building? Here is the easy solution for you. The “E”case dimensions are 6.5″ L x 3.1″ W x 6.6” H (166 x 79 x 168mm). The battery models that come in the “E” case are: ETX680, ETX900, ETX900-VNT, ETX1200.
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | EarthX Batteries |
