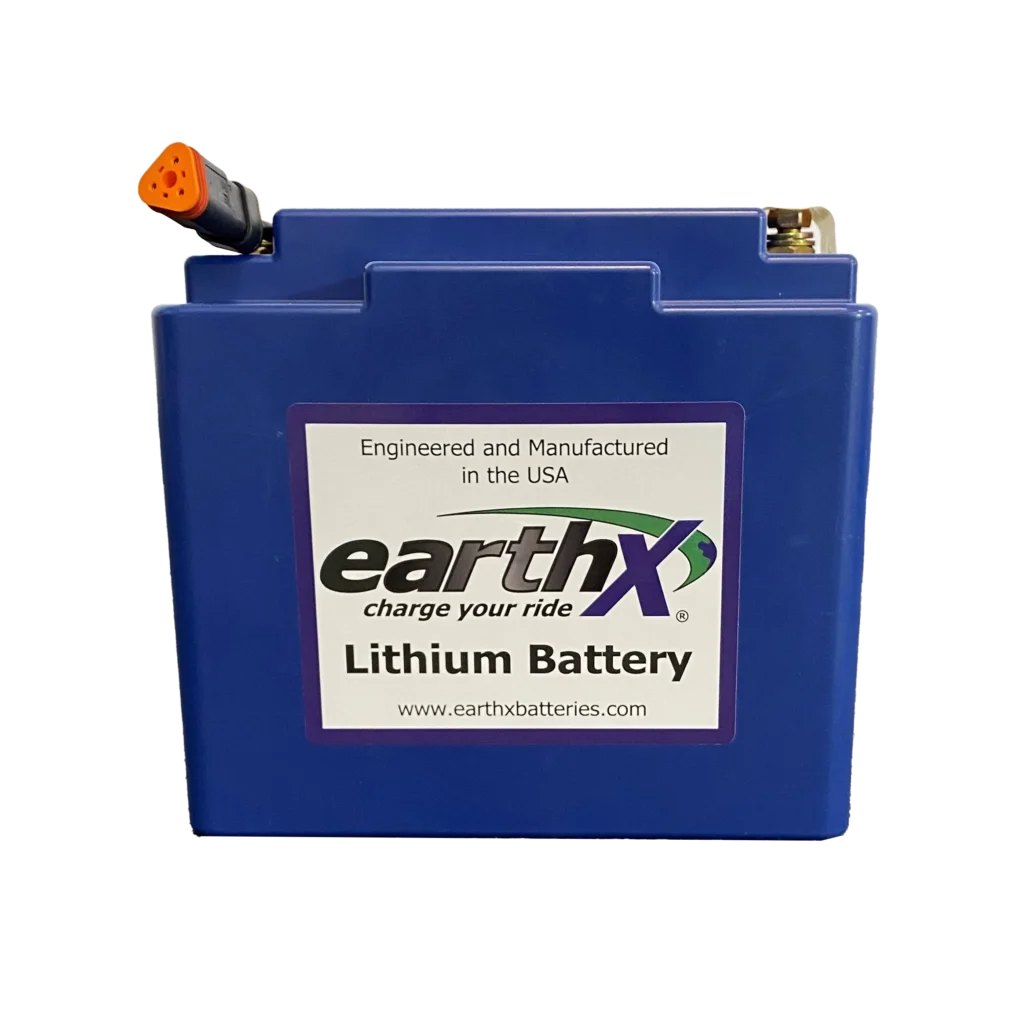

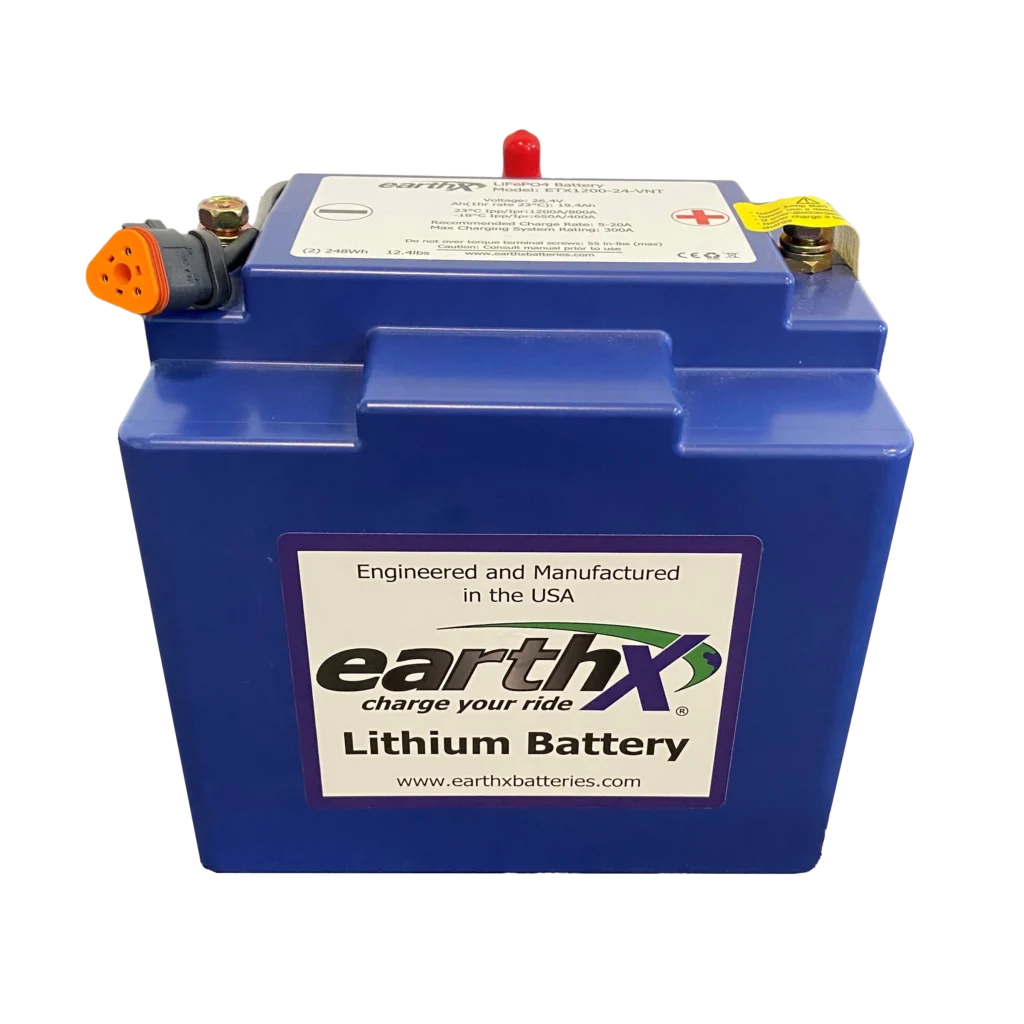

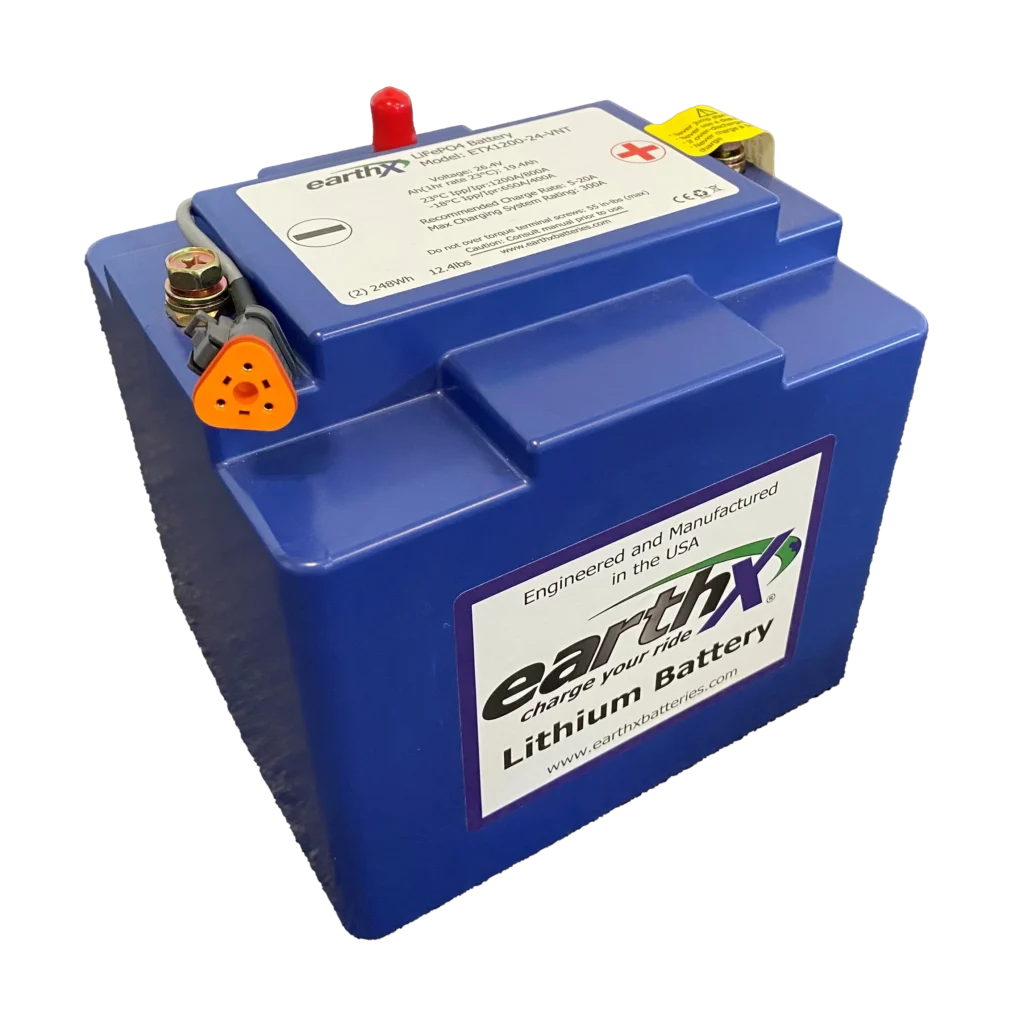

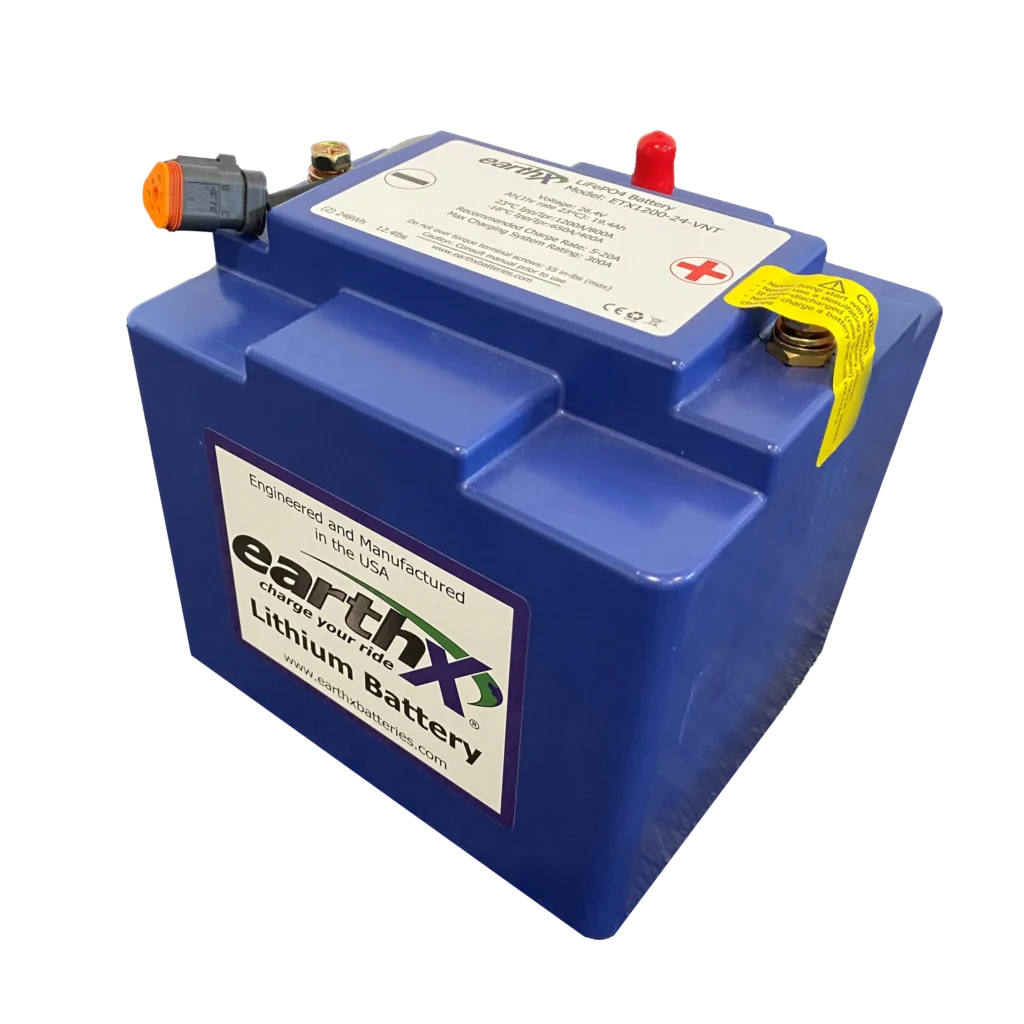

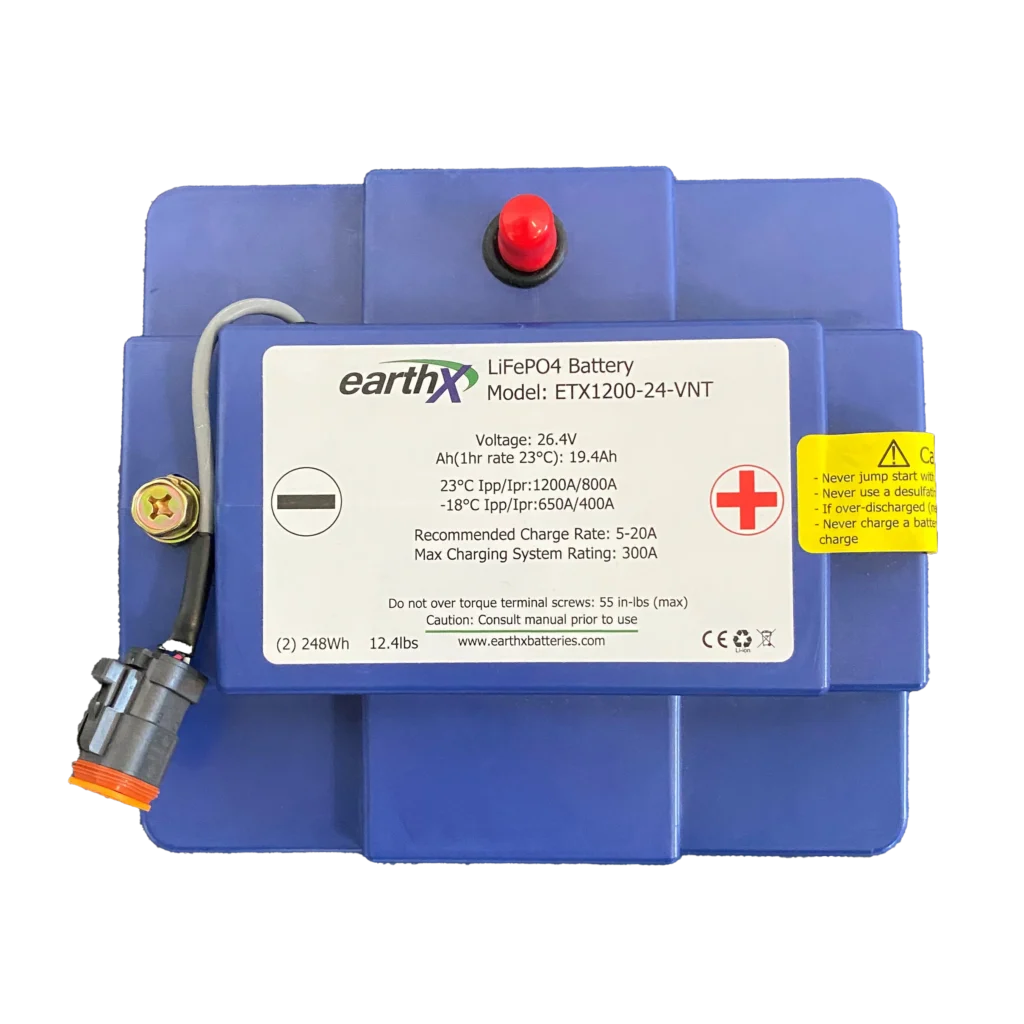

ETX1200-24-VNT | 24V Lithium Turbine Airplane Battery
$1,699.00
This battery is designed to start TURBINE engines with max motor/generator output of 300 amps or less.
SKU: ETX1200-24-VNT
Voltage: 26.4
Weight: 12.4 (5.6 Kg)
Cold Cranking Amps (CCA): 650
Peak Cranking Amps (PCA): 1200
Amp Hour (1C Rate): 19.4
Chemistry: LiFePo4
Case Size: T
Dimensions: 7.3″ L x 6.4″ W x 6.6″ H
(185mm L x 162mm W x 168mm H)
This battery is designed to start TURBINE engines with max motor/generator output of 300 amps or less.
This battery is fully protected by an integrated battery management system (BMS). The BMS protects the cell’s from over discharge, over charge, short circuit, temperature, plus cell balancing to ensure charge levels are equal. Additionally, the ETX-Hundred Series aircraft batteries have redundant electronic circuits and battery fault indication. The fault indicator can be connected into your EFIS or wired to a 24volt LED light on your control panel to alert you to the state of charge and state of health of the battery.
In addition to the BMS, this battery has thermal runaway containment and venting ability. This is designed to meet all of the DO-311a and DO-160 requirements for a lithium battery in aircraft. However, is it not currently TSO approved, this approval is estimated by mid 2025.
What’s included:
- 1 x ETX1200-24-VNT
- 2 x M8 screws with washers and lock washers
LED fault light sold separately
Specifications
- SKU: ETX1200-24-VNT
- Voltage: 26.4
- Weight: 12.4 (5.6 Kg)
- Cold Cranking Amps (CCA): 650
- Peak Cranking Amps (PCA): 1200
- Amp Hour (1C Rate): 19.4
- Chemistry: LiFePo4
- Case Size: T
- Dimensions: 7.3″ L x 6.4″ W x 6.6″ H
(185mm L x 162mm W x 168mm H)
Documentation
Click here to download the EarthX Battery Manual
EarthX is USA based engineering and manufacturing company dedicated to continuous improvements to bring you the best possible battery.
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | EarthX Batteries |
