ETX680-24-HDB Hold Down Bracket
$49.00

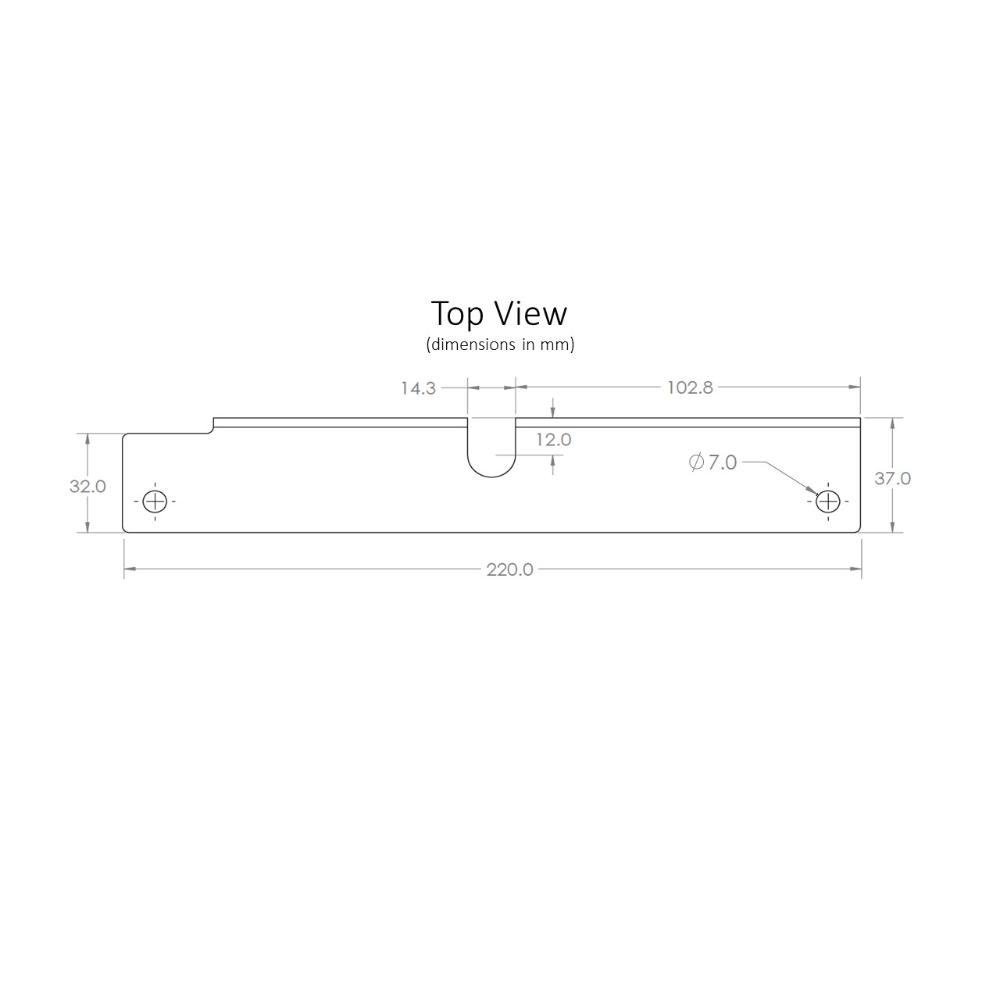

This is a 16-gauge stainless steel hold down bar designed for easy and efficient installation using the existing battery box location that was designed for a much larger lead acid battery. It is light weight, durable, and makes for a very clean installation. It is designed for these battery models: the ETX680-24-TSO; ETX680-24-VNT, and the ETX900-24.
This battery hold down bracket is designed for the ETX680-24-TSO and the ETX680-24-VNT lithium aircraft batteries.
15
Items sold in last 13 days
7
People watching this product now!
Description
This is a 16-gauge stainless steel hold down bar designed for easy and efficient installation using the existing battery box location that was designed for a much larger lead acid battery. It is light weight, durable, and makes for a very clean installation. It is designed for these battery models: the ETX680-24-TSO; ETX680-24-VNT, and the ETX900-24.
This battery hold down bracket is designed for the ETX680-24-TSO and the ETX680-24-VNT lithium aircraft batteries.
Battery Box Selector
| Material | Battery Size | Flanges | Battery Removal | |
|---|---|---|---|---|
| BB-CO2 | Lightweight aluminum | Fits “C” case (ETX680C) | Inward facing | Top or Front |
| BB-TH-CO | Mirrored steel with insulating foam | Fits “C” case (ETX680C) | Outward facing | Top only |
| BB-CU | Lightweight aluminum | Fits “E” case (ETX680/900/900-VNT/1200) | Outward facing | Top only |
| BB-MU2 | Lightweight aluminum | Fits “E” case (ETX680/900/900-VNT/1200) | Inward facing | Top or front |
| BB-TH | Mirrored steel with insulating foam | Fits “E” case (ETX680/900/900-VNT/1200) | Outward facing | Top only |
| BB-HDB | Lightweight aluminum | Fits “E” case (ETX680/900/900-VNT/1200) | Outward facing, floor mount | Top or Front |
| BB-U | Lightweight aluminum | Fits “U” case (ETX680-24-VNT/900-24/1600) | Inward facing | Top or front |
| BB-TH-U | Mirrored steel with insulating foam | Fits “U” case (ETX680-24-VNT/900-24/1600) | Outward facing | Top Only |
| ETX680-24-HDB | Steel | Fits “U” case (ETX680-24-TSO/VNT, ETX900-24) | No Flange | Top or Front |
Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
EarthX Batteries |
Reviews (0)
You must be logged in to post a review.
Shipping & Delivery
SHIPPING INFORMATION
We can ship by UPS, or USPS and DHL Express. We ship nationally, and internationally.
Carriers In Use
SHIPPING COSTS
- International Shipping Quote has to be done manually due to dimensions, weight, end destination, and more. Please E-Mail us.
- Any manner or method is available, call if you need Priority 1-2 day or overnight shipping.
- We are shipping with UPS or USPS and DHL Express
Related products
ETX-JMP12/24 12V-24V Jump Pack (All-In-One)
This is a 12V/24V jump pack that can boost just about anything! Very compact and the entire kit is only 4 pounds. This jump pack uses the technology of lithium iron phosphate (LiFePo4) chemistry, not Lithium Cobalt (LiCoO2). LiFePo4 is the most powerful, safest and most robust of all the lithium chemistries, plus double the life span of lithium cobalt packs.
Examples of what it can jump start: automobiles, diesel trucks, motorcycles, boats, construction equipment, experimental and certified aircraft, tractors, snowmobiles, ATV/UTVs, riding lawnmowers, and so much more.
BB-TH-CO Thermal Battery Box “C” Case
Thermal battery box to protect from radiated or convection heat. Compatible with our existing “C” case battery models; ETX680C.
The EarthX thermal battery box is designed to protect the battery in engine compartment installations from periods of high temperature (up to 1 hour), such as after shutdown, and from radiant heat from hot surfaces like exhaust systems during and after flight. This stainless-steel box has a mirror finish to minimize the effect of radiant heat, and it has a high-performance insulating foam layer between the box and battery to reduce effect of convection heat. This battery box was engineered to be strong enough to withstand 30 G of force yet only weighs .375Kg or 13.2oz.
All batteries have optimal temperature ranges for use in operation. The ETX-Hundred series is rated for 140 deg F ( 60 deg C) or less for optimal longevity and performance of the battery. Typical lead acid batteries are rated to 113 deg F or 45 deg C.
BB-TH Thermal Battery Box “E” Case
Thermal battery box to protect from radiated or convection heat. Fits the “E” case batteries including ETX680/ETX900/ETX900-VNT/ETX1200. Designed to protect the battery in engine compartment installations from periods of high temperature (up to 1 hour), such as after shutdown, and from radiant heat from hot surfaces like exhaust systems during and after flight. This stainless-steel box has a mirror finish to minimize the effect of radiant heat, and it has a high-performance insulating foam layer between the box and battery to reduce effect of convection heat. The hold-down tab comes with a mounting fixture that can hold a cooling air duct up to 1” in diameter. This battery box was engineered to be strong enough to withstand 30 G of force yet only weighs .49Kg or 1 Lb. 1.2oz.
All batteries have optimal temperature ranges for use in operation. The ETX-Hundred series is rated for 140°F ( 60ºC) or less for optimal longevity and performance of the battery. Typical lead acid batteries are rated to 113ºF or 45ºC.
BB-U Light Weight Aluminum Battery Box For “U” Case
This is a custom fit designed battery box for the ETX1600, the ETX900-24, or the ETX680-24-VNT battery. This battery box has a removable hold down bracket which allows the battery to be removed from the top or the front for easy installation and use. It is made of aluminum weighing only .325Kg or 11.5oz, yet can handle 9Gs force downward and 6Gs upward.
What’s included:
- 1 x battery box
- 1 x top front removable hold down tab
- 2 x screws for hold down
BB-MU Light Weight Battery Box Fit “E” Case And PC680
The light weight aluminum battery box is excellent to use with the EarthX lithium batteries for easy installation. This battery box can be used interchangeably for the EarthX Lithium Battery models ETX680/900/900-VNT/1200 or the Odyssey PC680 with the use of a foam spacers. We call it the multi-use battery box for this reason.
If you are using the battery box for the EarthX Lithium batteries, you will use a foam spacer on the left and right side of the battery for a snug fit. If you are using the battery box for the PC680, you will use the foam spacer on the backside at the bottom of the case to adjust for the tapering of the case for a snug fit.
This battery box was engineered to be strong enough to withstand 30 G of force for the EarthX Lithium Batteries or 15 G of force for the PC680 yet only weighs .275Kg or 10oz. This unique design allows for simple, easy installation with the dimensions: 7.1″ L x 3.1″ W x 6.5-6.6″ (adjustable)H or (180mm x 80mm 166-168mm).
What’s included:
- 1 x battery box
- 1 x top front hold down
- 2 x screws for hold down
