ETX680-24-TSO (24 Volt FAA Approved for GA Aircraft)
$999.00
An STC is required for installation. For STC installation, KITS are sold separately and are unique per airframe. Use the search feature button of WHAT BATTERY FITS MY VEHICLE button and then choose CERTIFIED AIRCRAFT to find you exact kit needed for your airframe.
If you need the 8130-3 form for international orders, it is an additional $150 fee per battery and must be requested prior to shipping.
SKU: ETX680-24-TSO
Voltage: 26.4
Weight: 7.2lbs (3.2Kg)
Cold Cranking Amps (CCA): 400
Peak Cranking Amps (PCA): 850
Amp Hour (1C Rate): 11.7
Chemistry: Lithium Iron Phosphate (LiFePO4)
Case Size: U

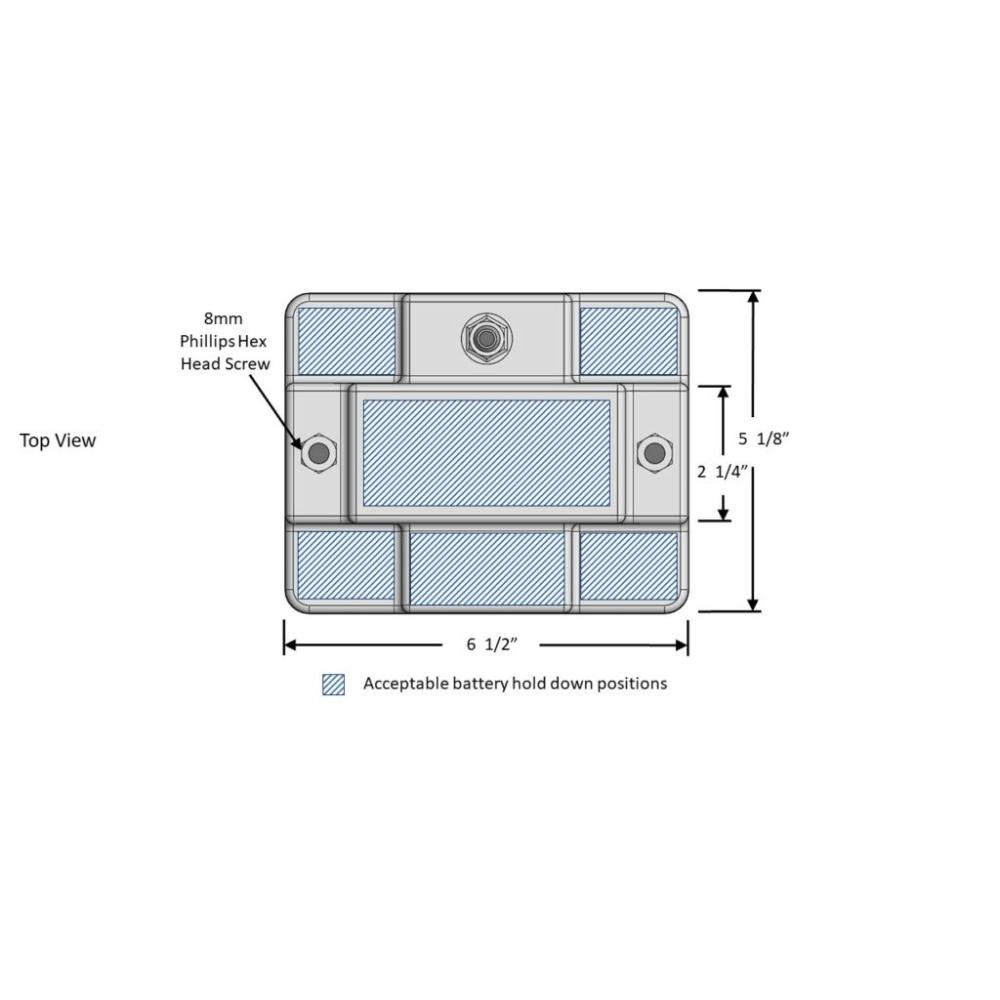

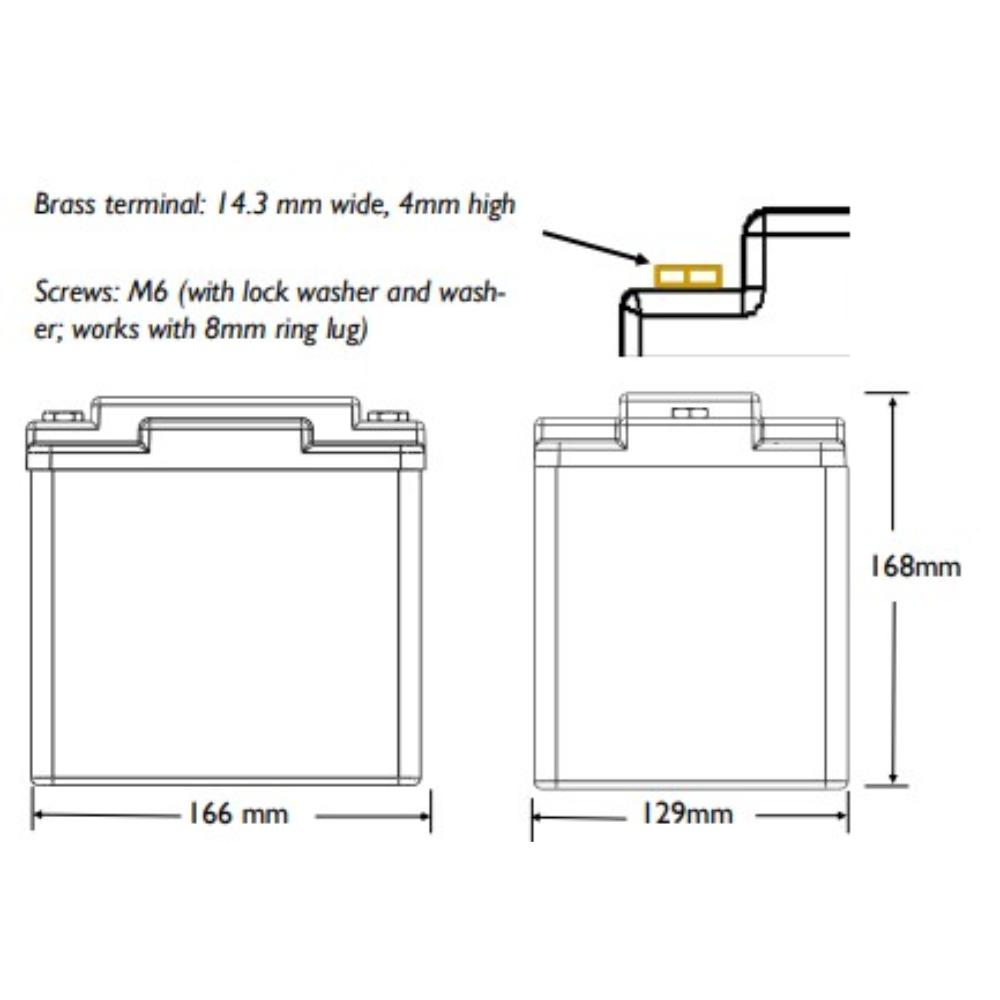

Dimensions: 6.5″ L x 5.1″ W x 6.6″ H
(166mm L x 129mm W x 168mm H)

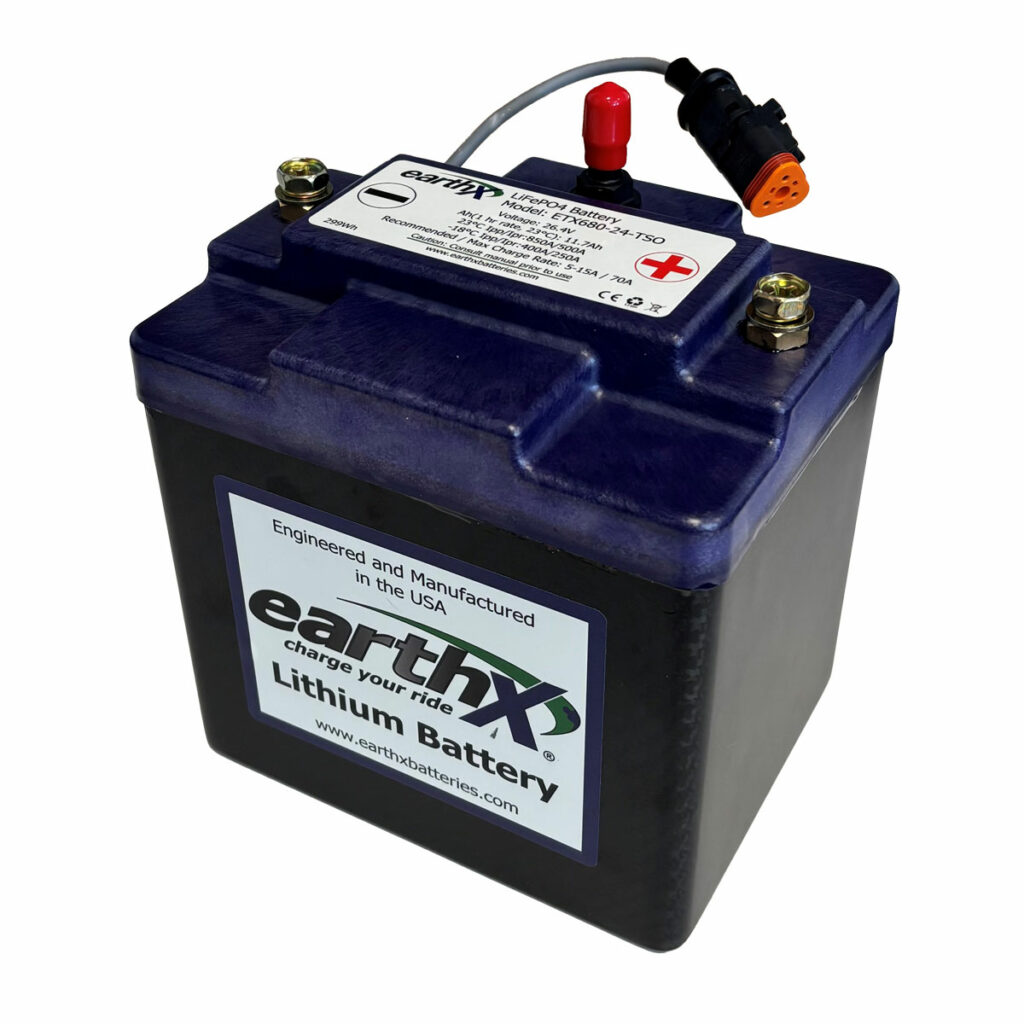

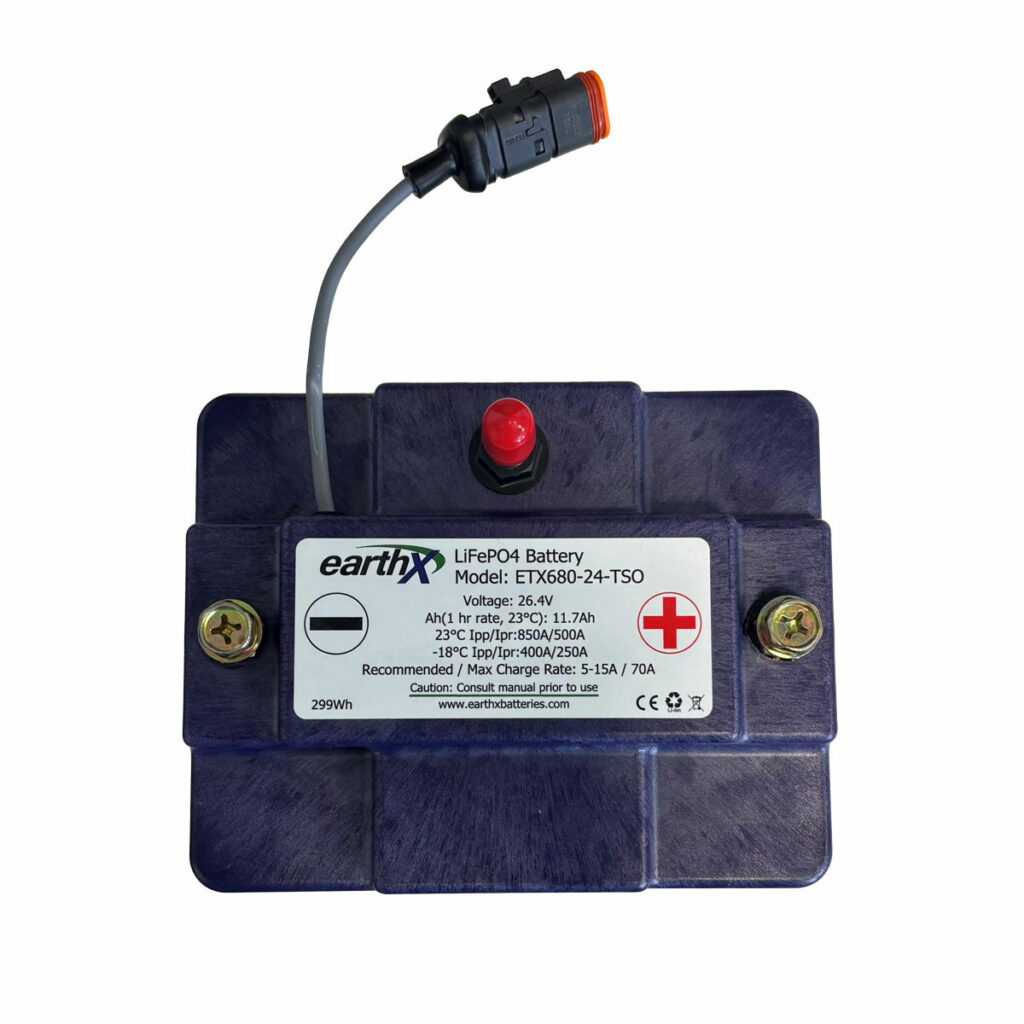

FAA approved 24V ETX680-24-TSO certified aircraft battery.
This battery has electronic protections (BMS) and built in thermal runaway containment and venting ability built in. Additionally, he ETX680-24-TSO meets all of the DO-311a and DO-160G requirements for a lithium battery in aircraft.
This battery is fully protected by an integrated battery management system (BMS). The BMS protects the cell’s from over discharge, over charge, short circuit, temperature, plus cell balancing to ensure charge levels are equal. Additionally, ETX-Hundred-Series aircraft batteries have redundant electronic circuits and battery fault indication. Also, this battery has fault indication that can be programed into your EFIS or wired to an LED on your panel. The fault indicator alerts you to the state of charge and state of health of the battery. (Please see manual for details)
Included in this certified aircraft battery:
- 1 x ETX680-24-TSO
- 2 x 8mm screws plus washers and lock washers
Specifications
- SKU: ETX680-24-TSO
- Voltage: 26.4
- Weight: 7.2lbs (3.2Kg)
- Cold Cranking Amps (CCA): 400
- Peak Cranking Amps (PCA): 850
- Amp Hour (1C Rate): 11.7
- Chemistry: Lithium Iron Phosphate (LiFePO4)
- Case Size: U
- Dimensions: 6.5″ L x 5.1″ W x 6.6″ H
(166mm L x 129mm W x 168mm H)
Documentation
Click here to download the OEM Product Manual
Click here to download the Letter of Authorization
Click here to download the STC
Click here to download the Approved Model List (AML)
Click here to download the Customer Installation and ICA Manual
Click here to download the Top Level Assembly
Click here to download the Airplane Flight Manual Supplement
FAA Required Statement:
“The conditions and test required for TSO approval of this article are minimum performance standards. Those installing this article either on or within a specific type or class of aircraft must determine that the article installation conditions are within the TSO standards. This article can be installed only according to 14 CFR part 43 or the applicable airworthiness requirements.”
